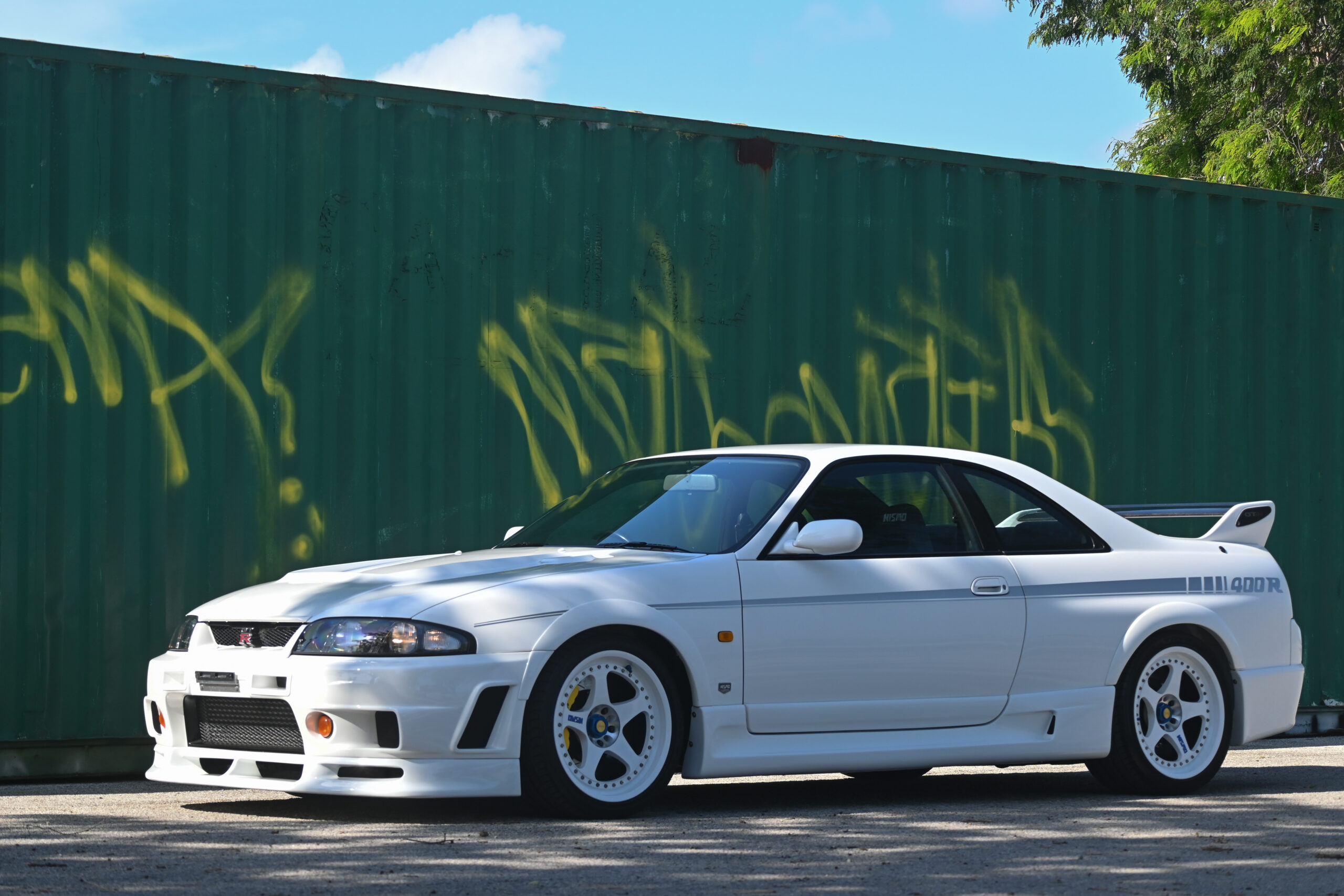

1995 Nissan Skyline GT-R N1 – 400R Tribute

• – Original N1 specification with original 24U N1 block
• – Fully rotisserie built & restored by Legendary Motorcars
• – Full Nismo 400R exterior & interior package
• – Forged bottom end & garrett turbos
• – Haltech ECU
• – Functional AC and interior amenities

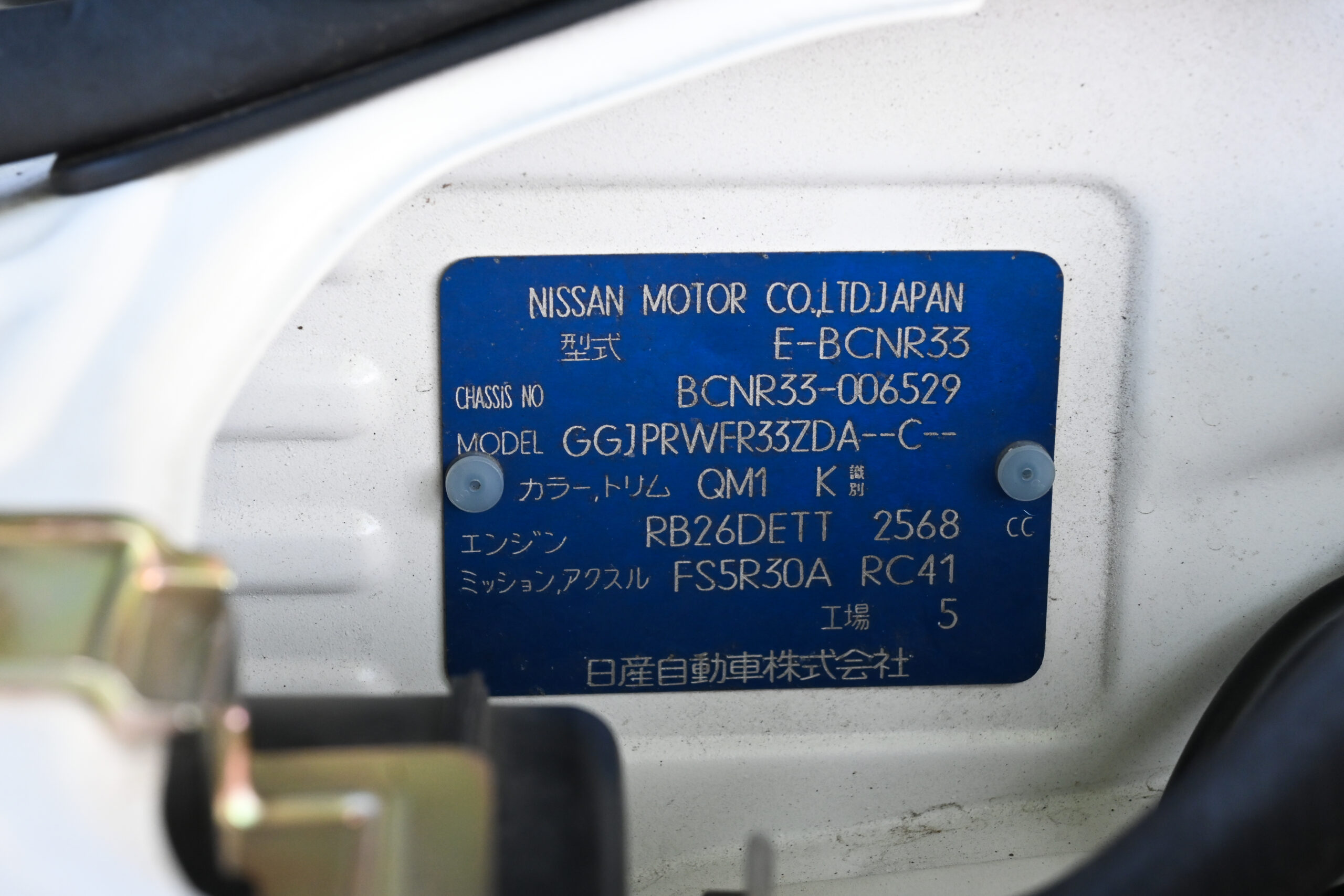

VIN: BCNR33006529

https://www.topgear.com/car-news/modified/ultimate-nissan-gt-r-project-r33-has-n1-chassis-400r-styling-and-800bhp

BACKGROUND

Before we get into the tuning influence on this car, this ‘95 V-Spec N1 is 1 of only 55 examples built for race homologation in the Japanese GT championship. The powertrain has multiple revisions compared to the standard GT-R including metal turbines (rather than ceramic), altered cam profiles, reinforced areas around the cylinder head bolts, improved connecting rod bearings, thicker piston second land, thinner piston ring gaps on top and second, a reinforced air inlet housing and a better-flowing water pump. On the outside, the N1 was only available in white. N1-unique ducted bumpers and skirts were utilized allowing for improved aerodynamics over the standard GT-R (which was already far more aerodynamic than the R32). Chassis tuning was revised as well with stiffer damping and lower ride height than the standard model. ABS was also deleted since it was not legal in competition.

When it comes to GT-R tuning, Australia is perhaps at the forefront of the industry for creating the rowdiest examples. Every region of the world has a unique styling queue when it comes to the setup of the BCNR platform and Australian-built examples can definitely be pointed out from the rest. The goal of this Legendary Garage build was personal – to create a machine that matched the level of the most famous machines in the industry (those built by Smokey Nagata, etc.) with personal preference in mind. The result of this inspiration is considered the closest thing to a 400R: a highly modified original N1 with all genuine 400R parts and a high output powertrain setup.

SETUP

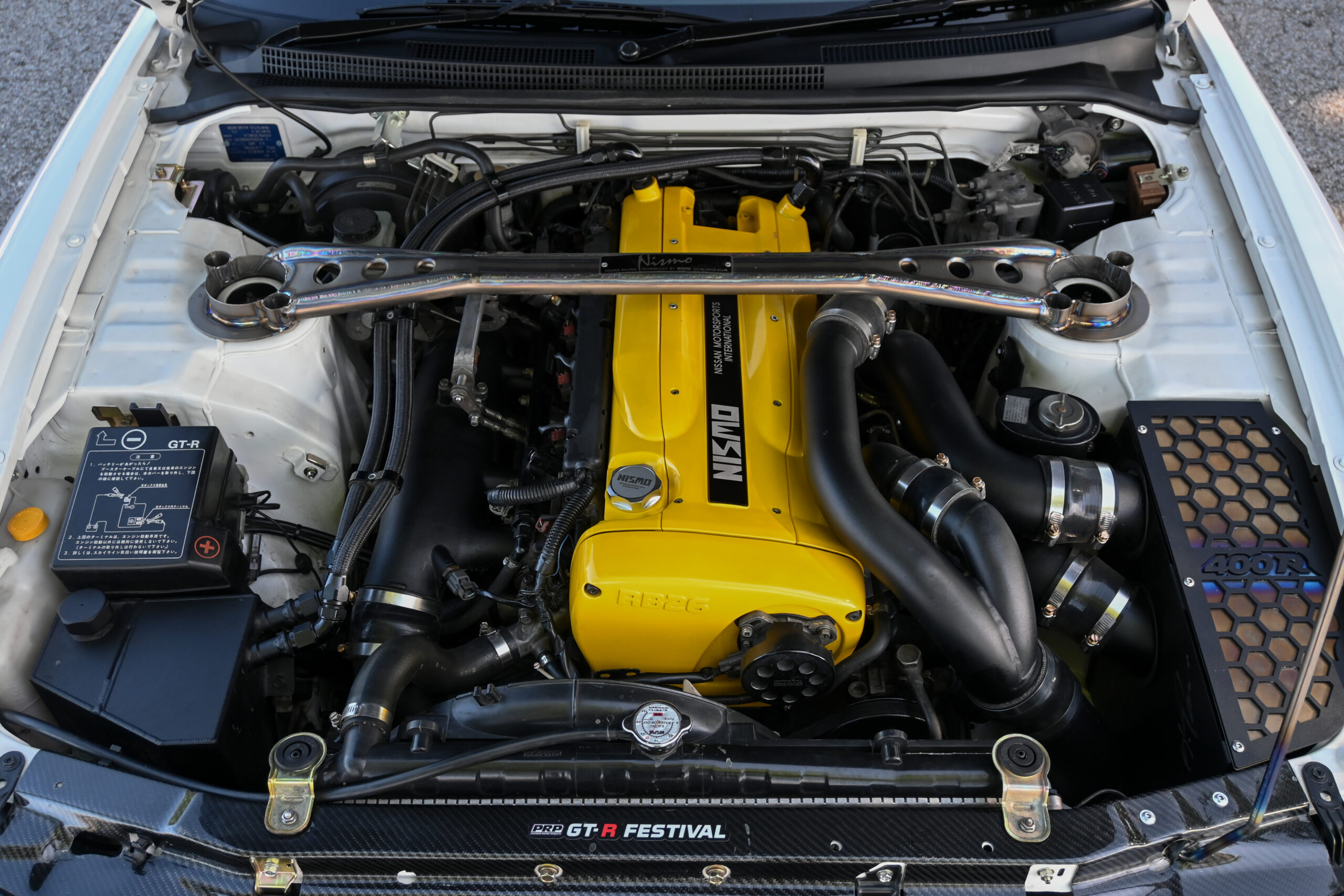

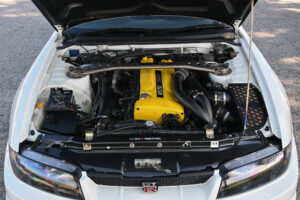

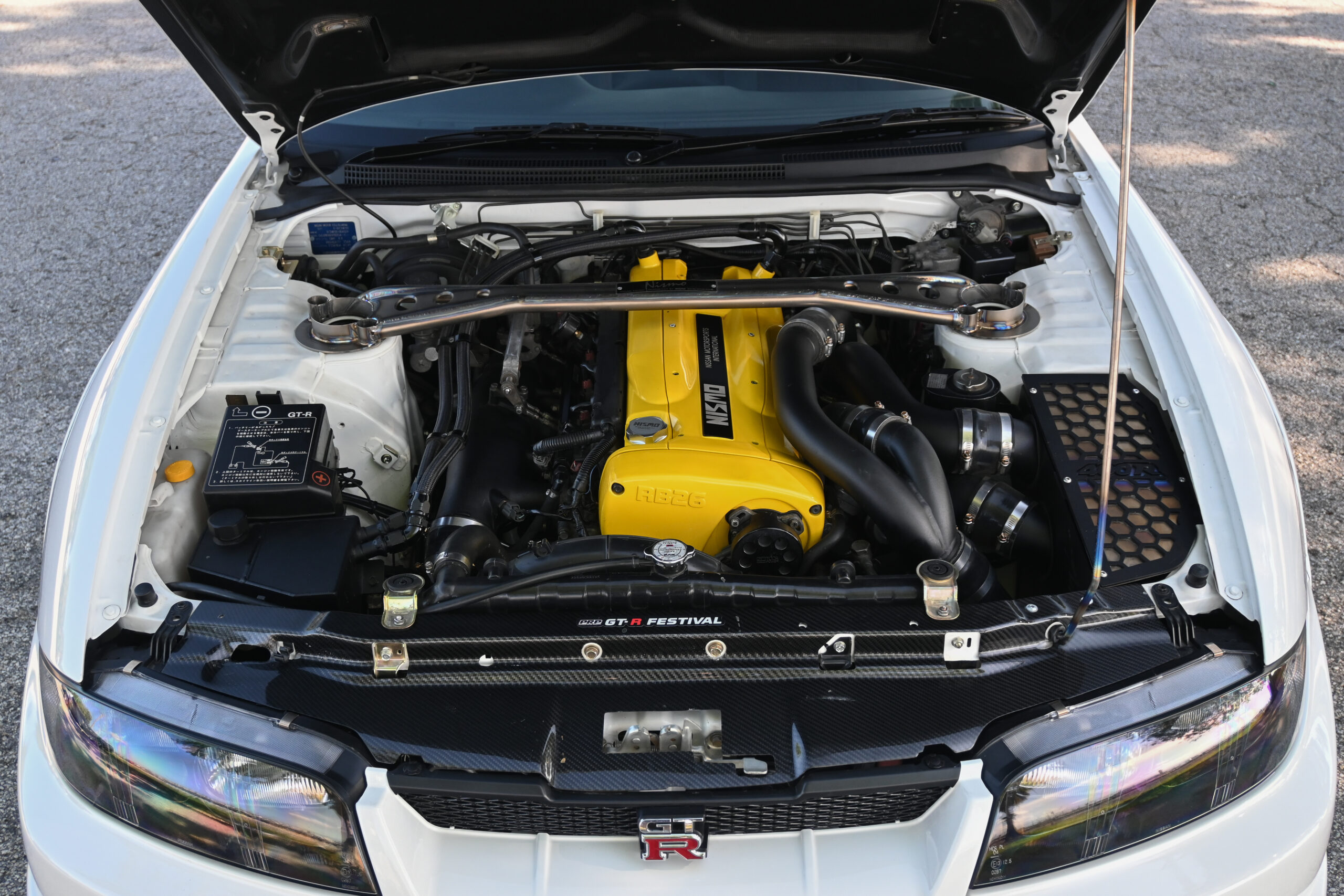

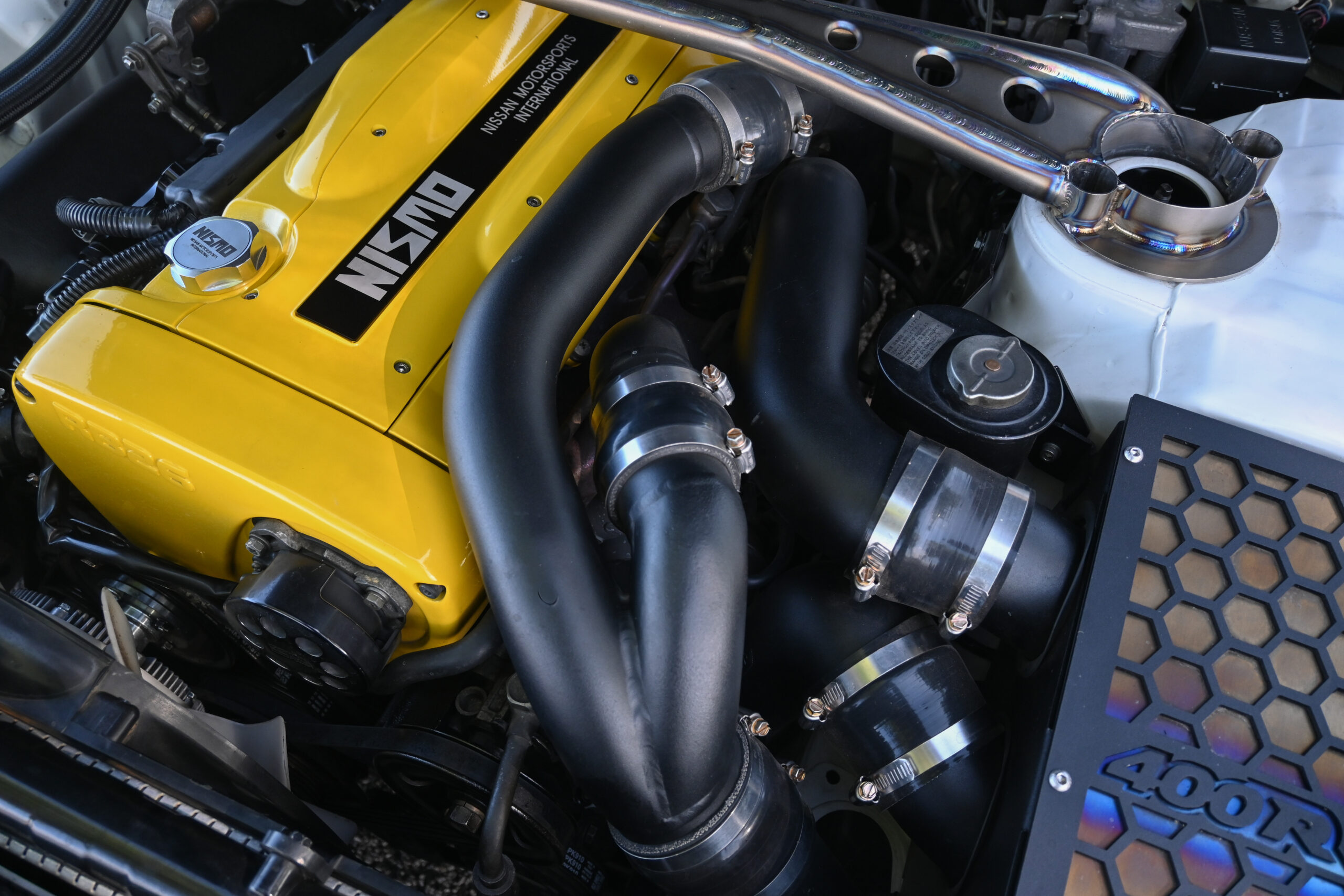

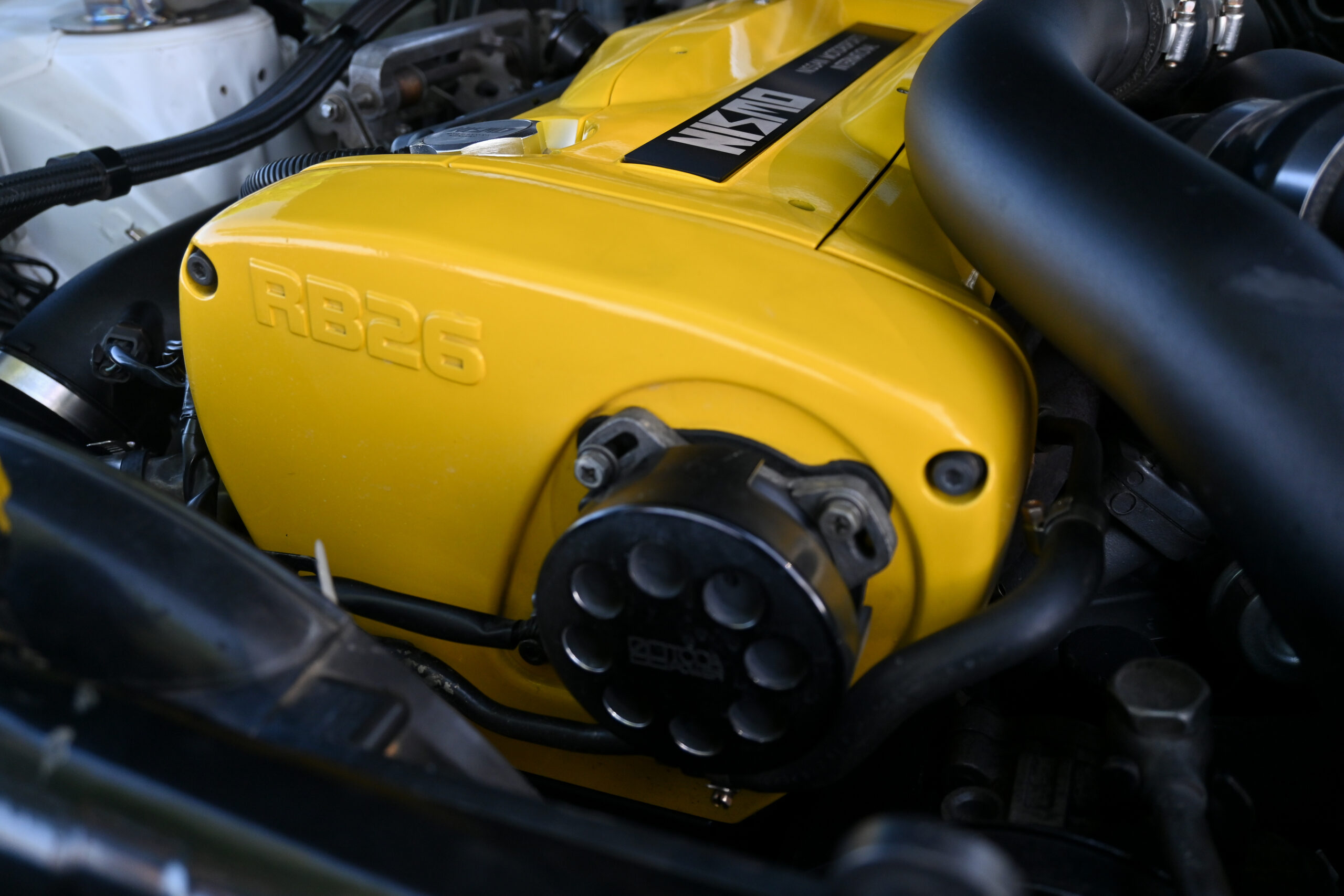

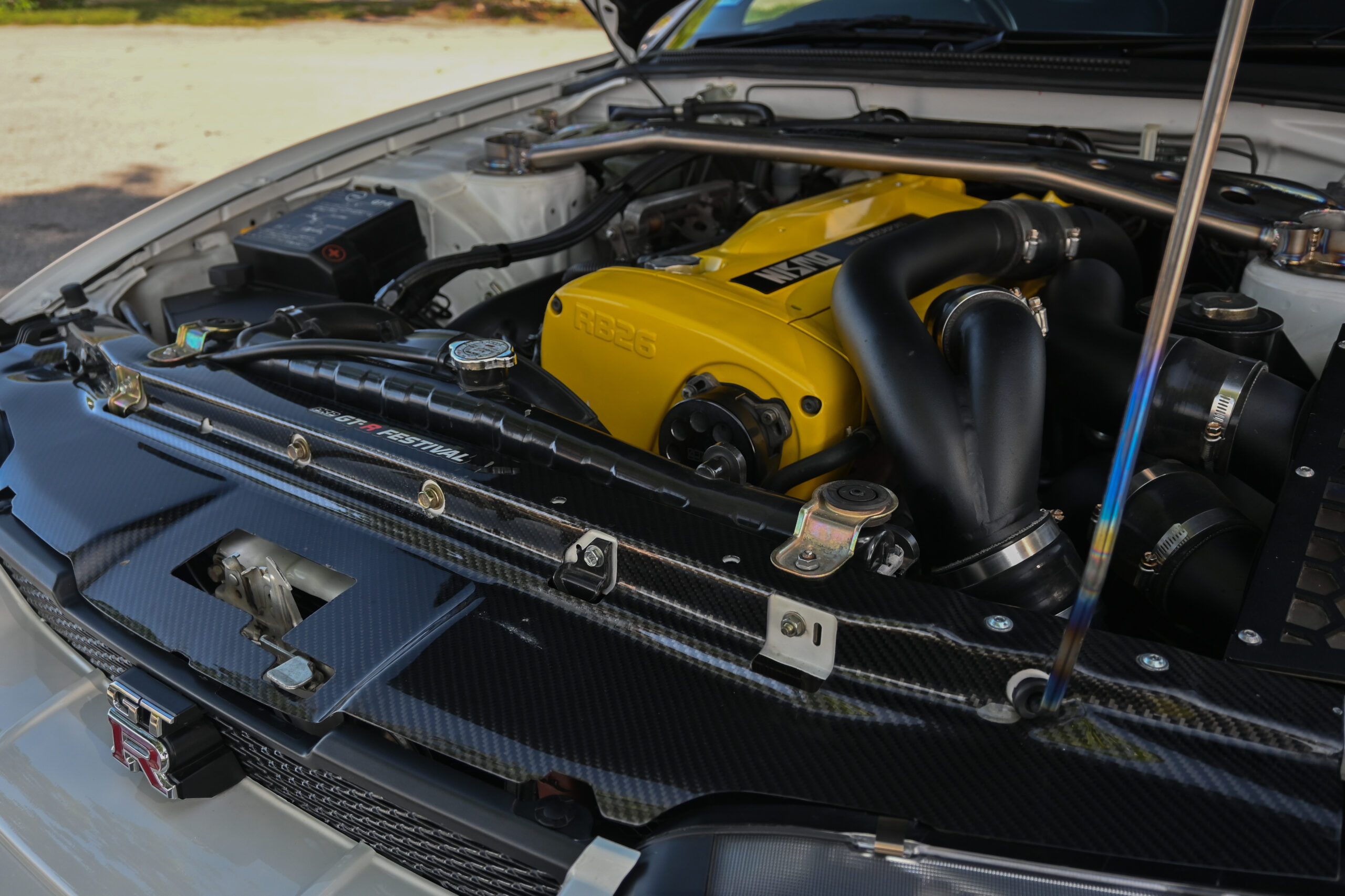

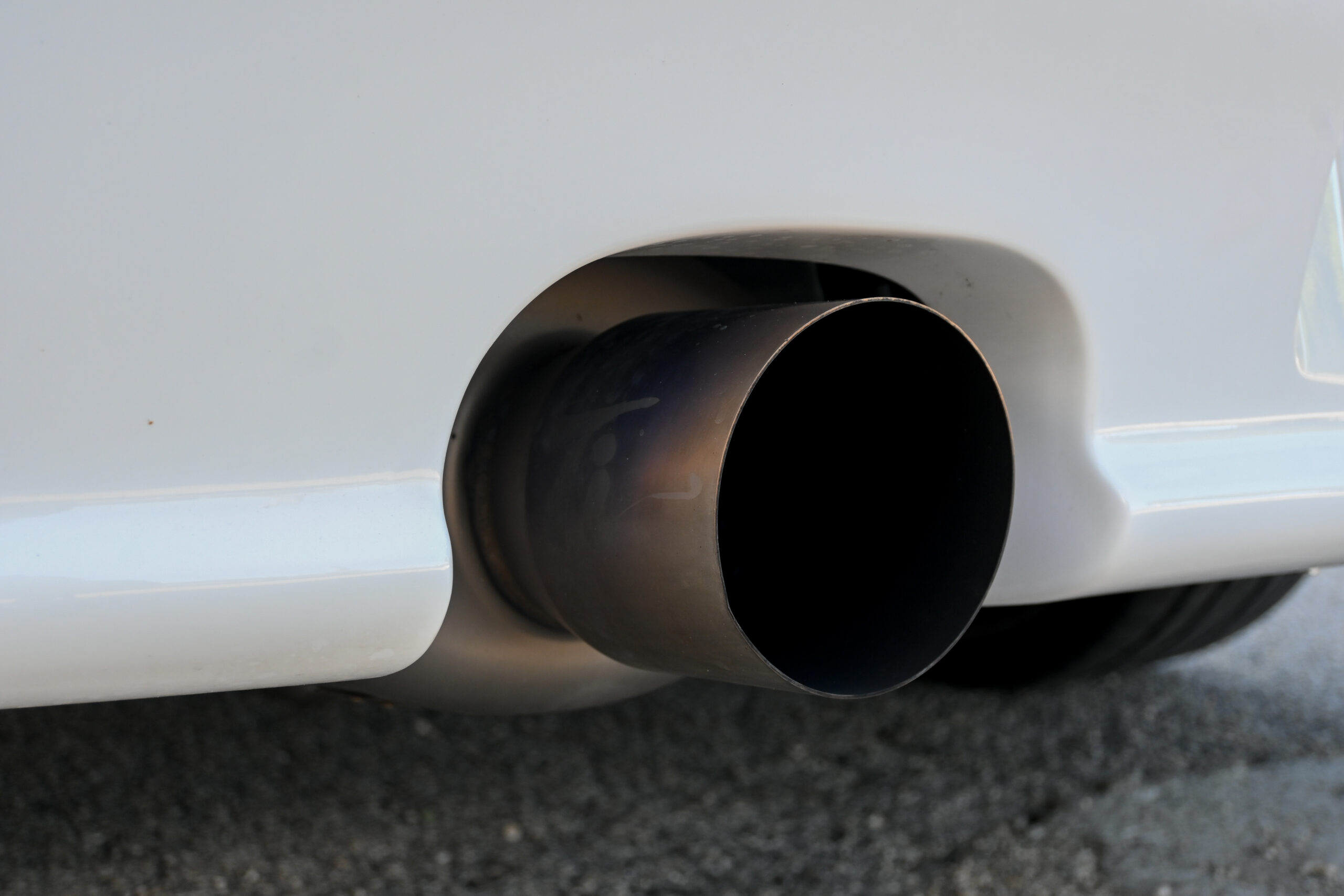

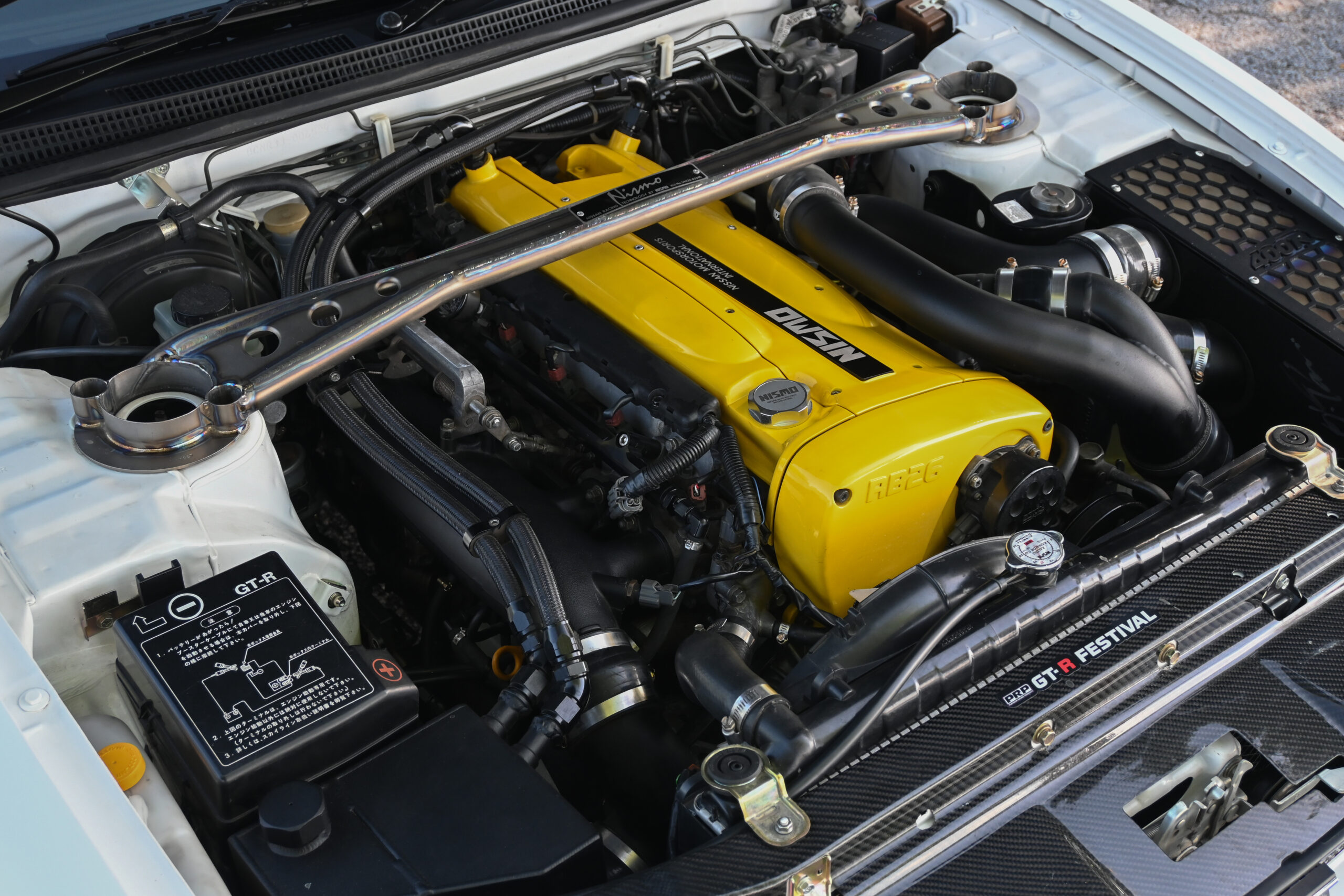

For the powertrain, this N1 is quite sorted. From top to bottom the factory RB26 was reinforced to handle high output while retaining factory displacement and N1 literature. A forged bottom end, ported head and Garrett -5 turbos make for a safe 800ps output on premium fuel. Piping for exhaust flow and cooling is improved courtesy of HKS. The original N1 manifolds were ported to further enhance flow. Genuine 400R FGK front pipe and exhaust keep the sound quiet and original.

Management is controlled by a Haltech ECU – optioned with safeties and composition sensors to keep the setup reliable.

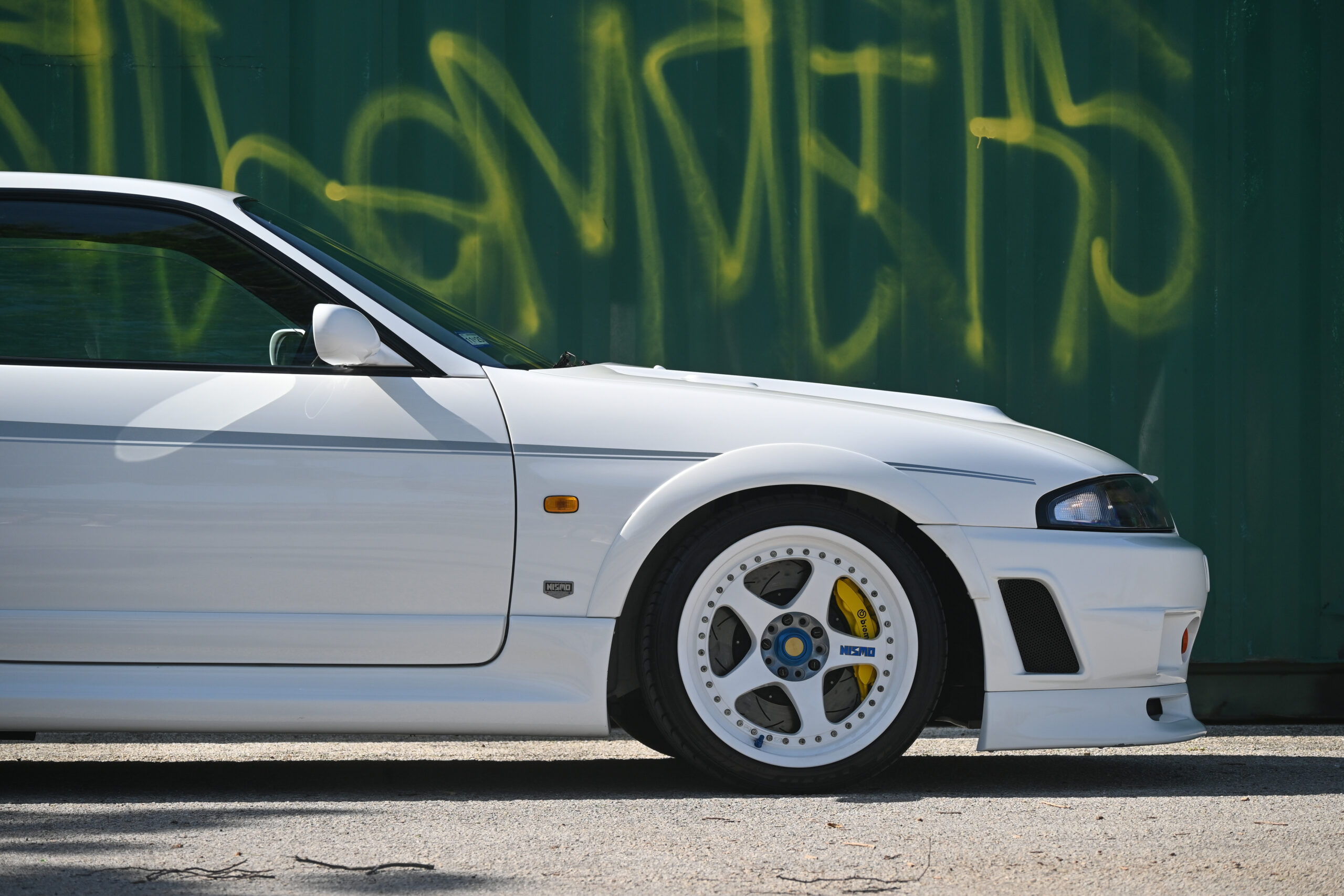

For footwork, this N1 was fitted with Ohlins 2-way coilovers and an R35 380mm big brake kit. Genuine Nismo LMGT1 wheels keep the setup on the road while retaining day to day drivability.

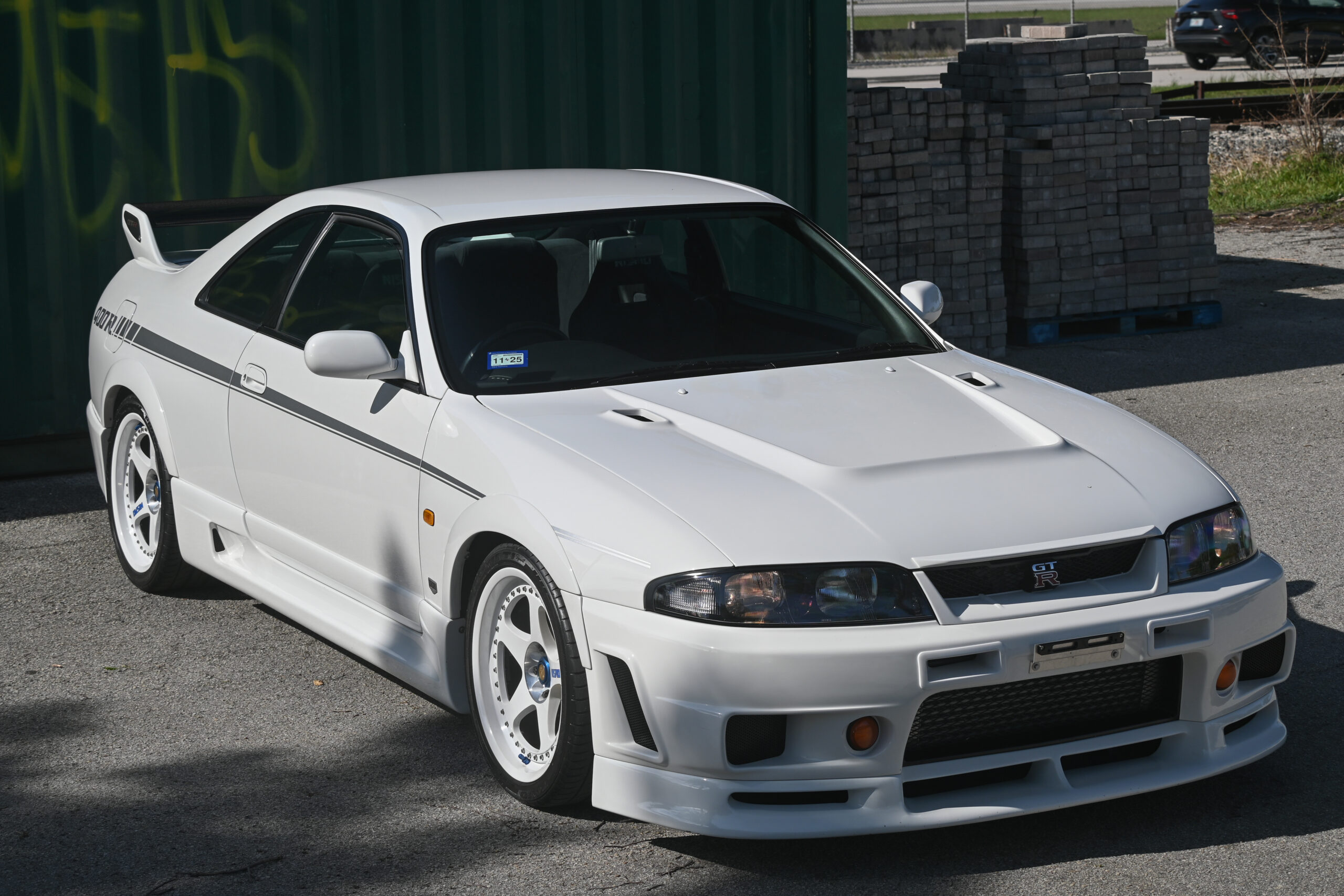

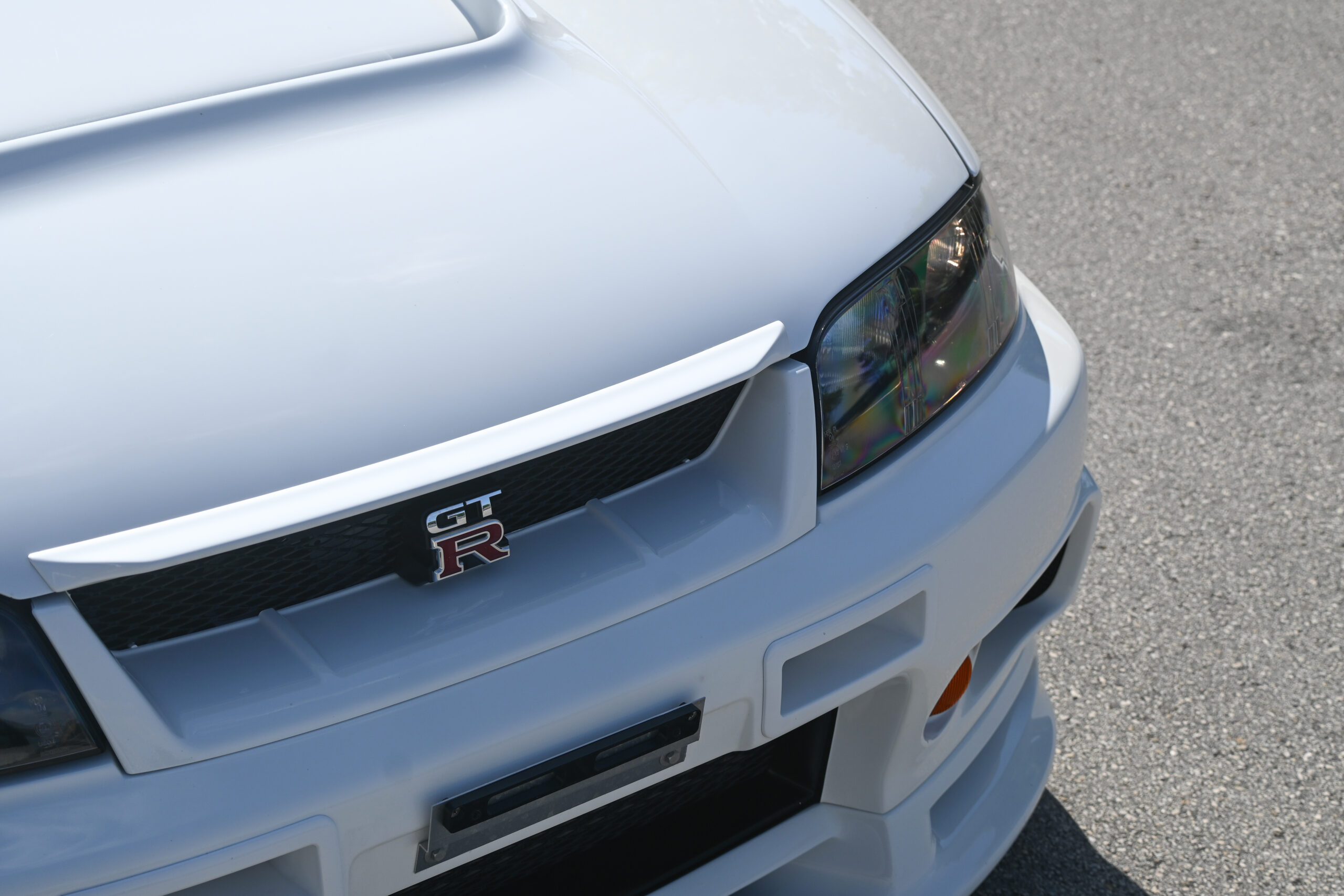

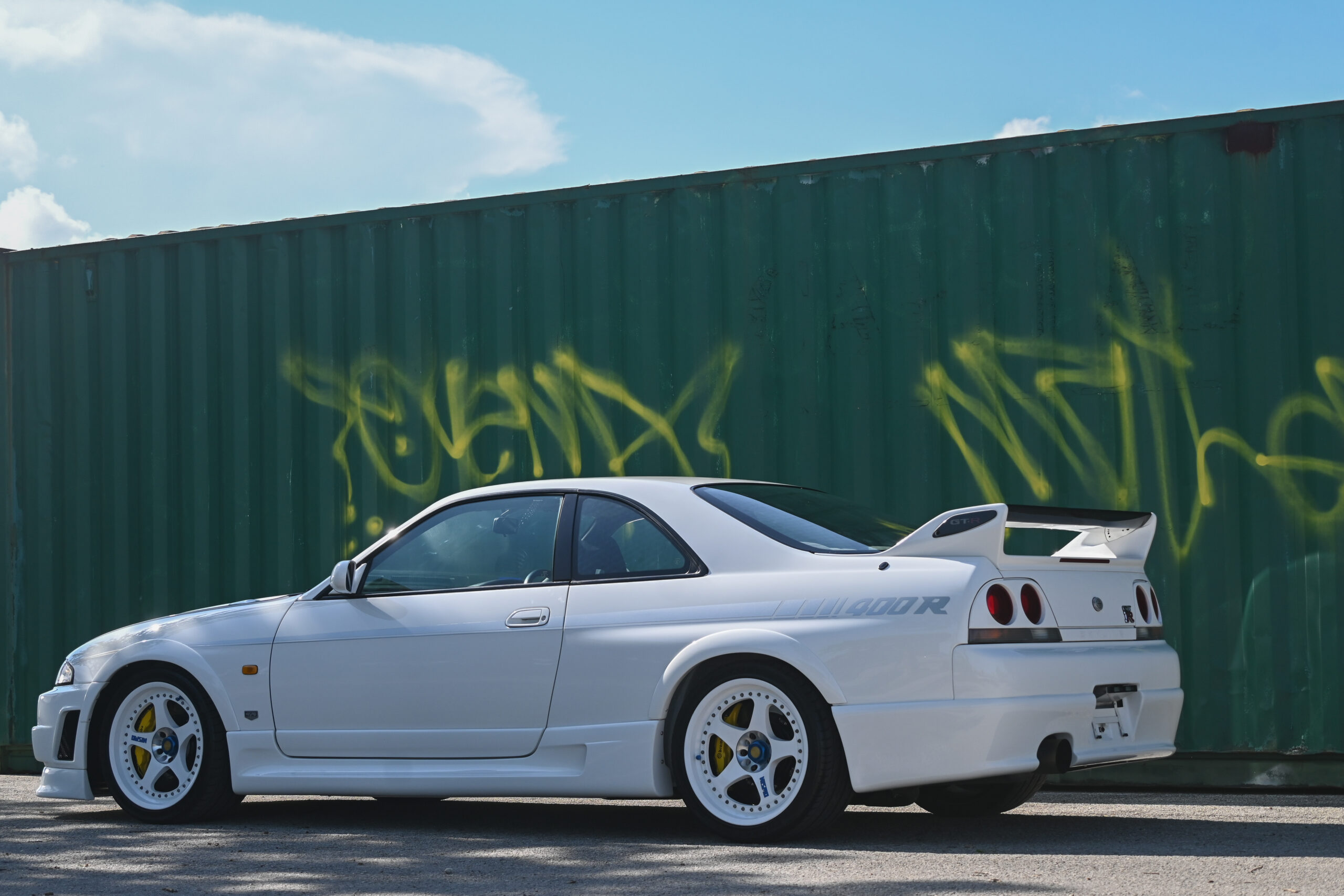

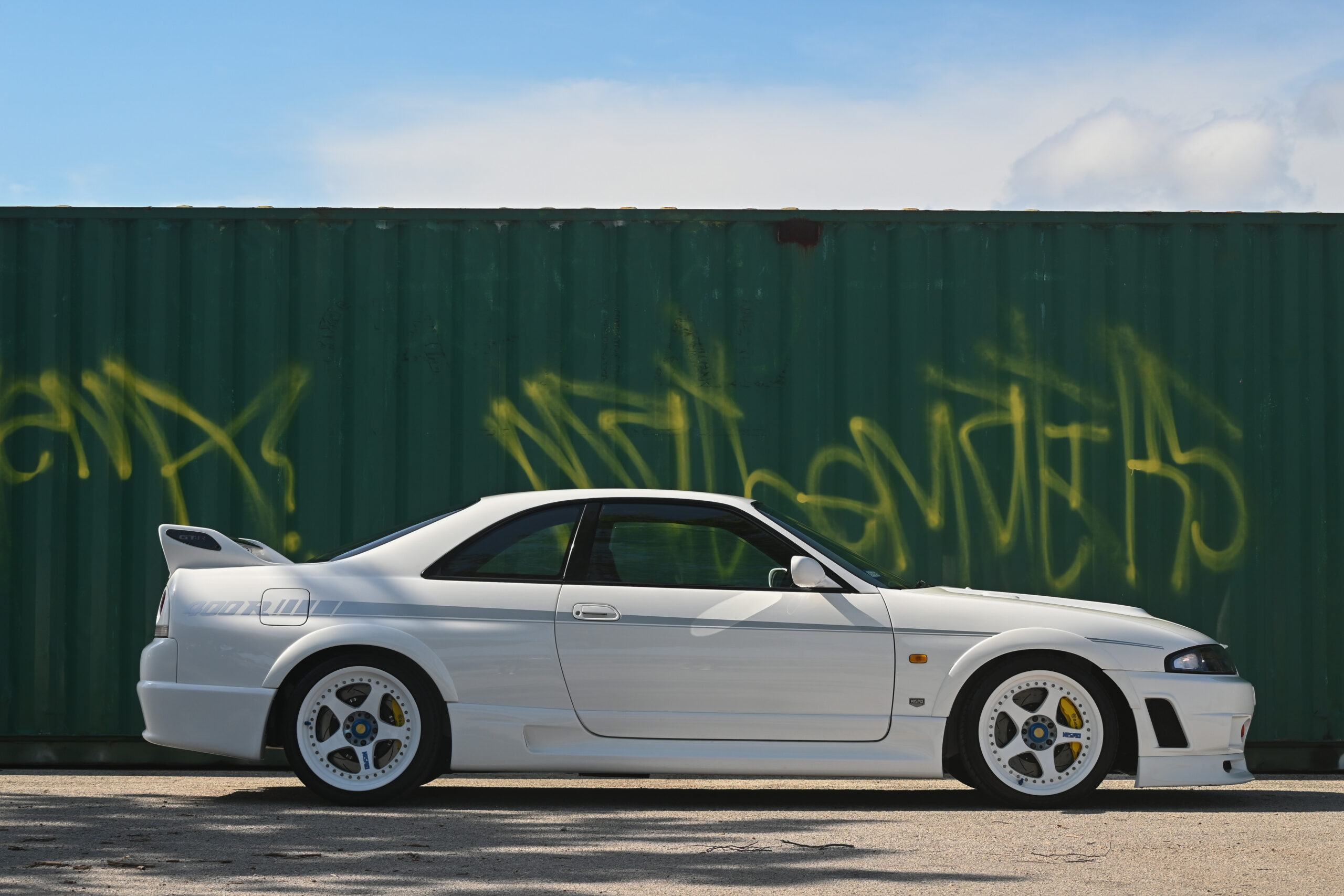

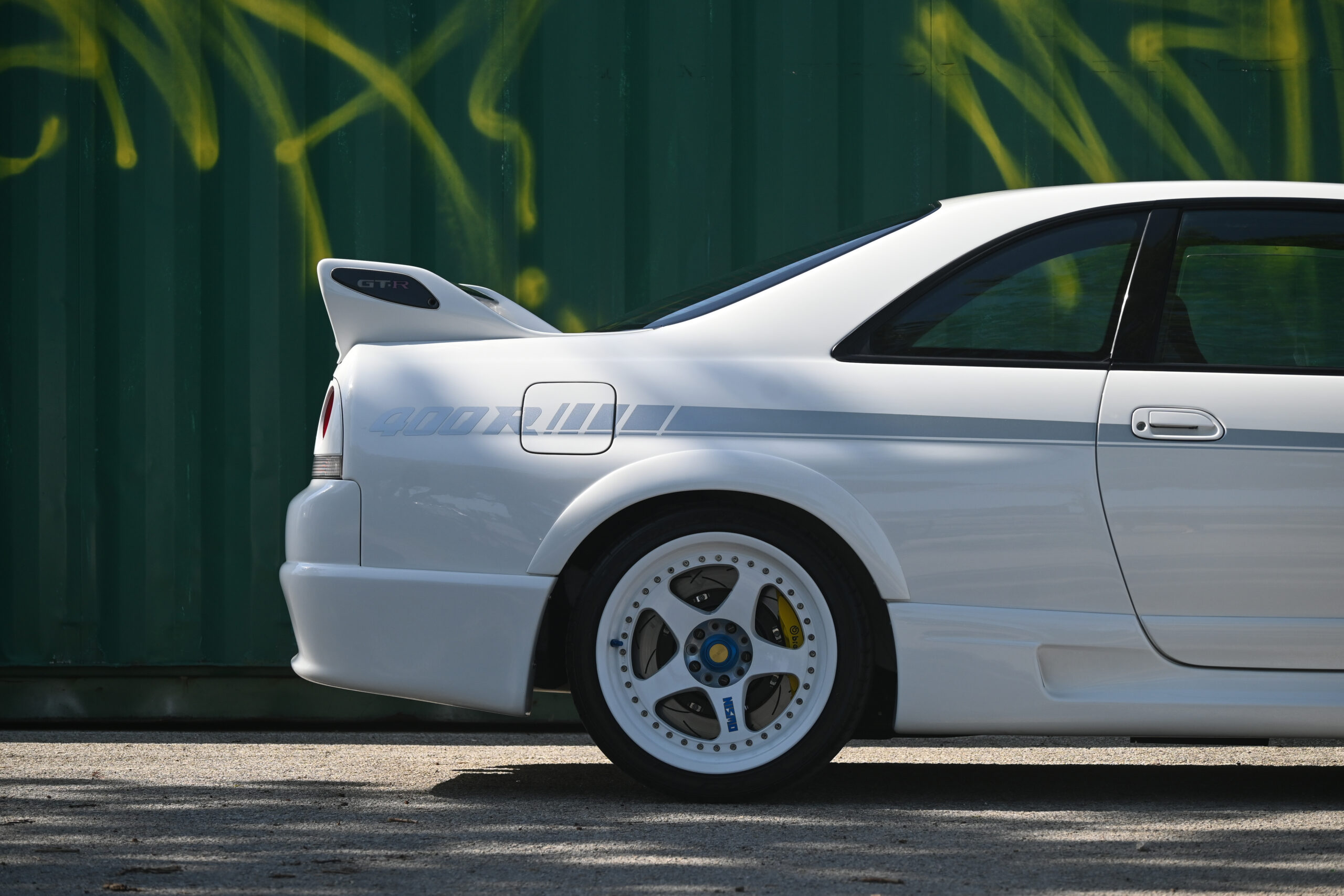

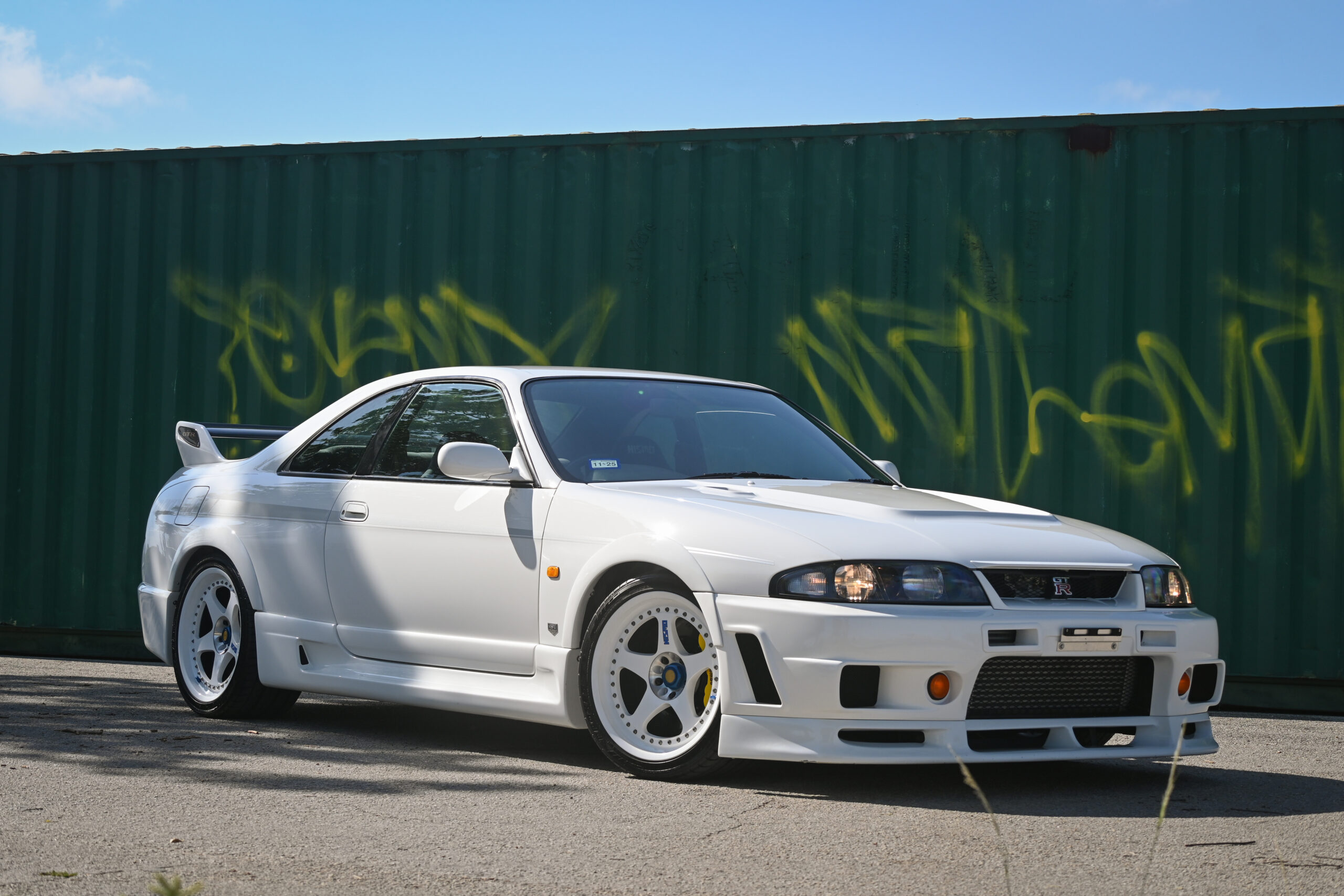

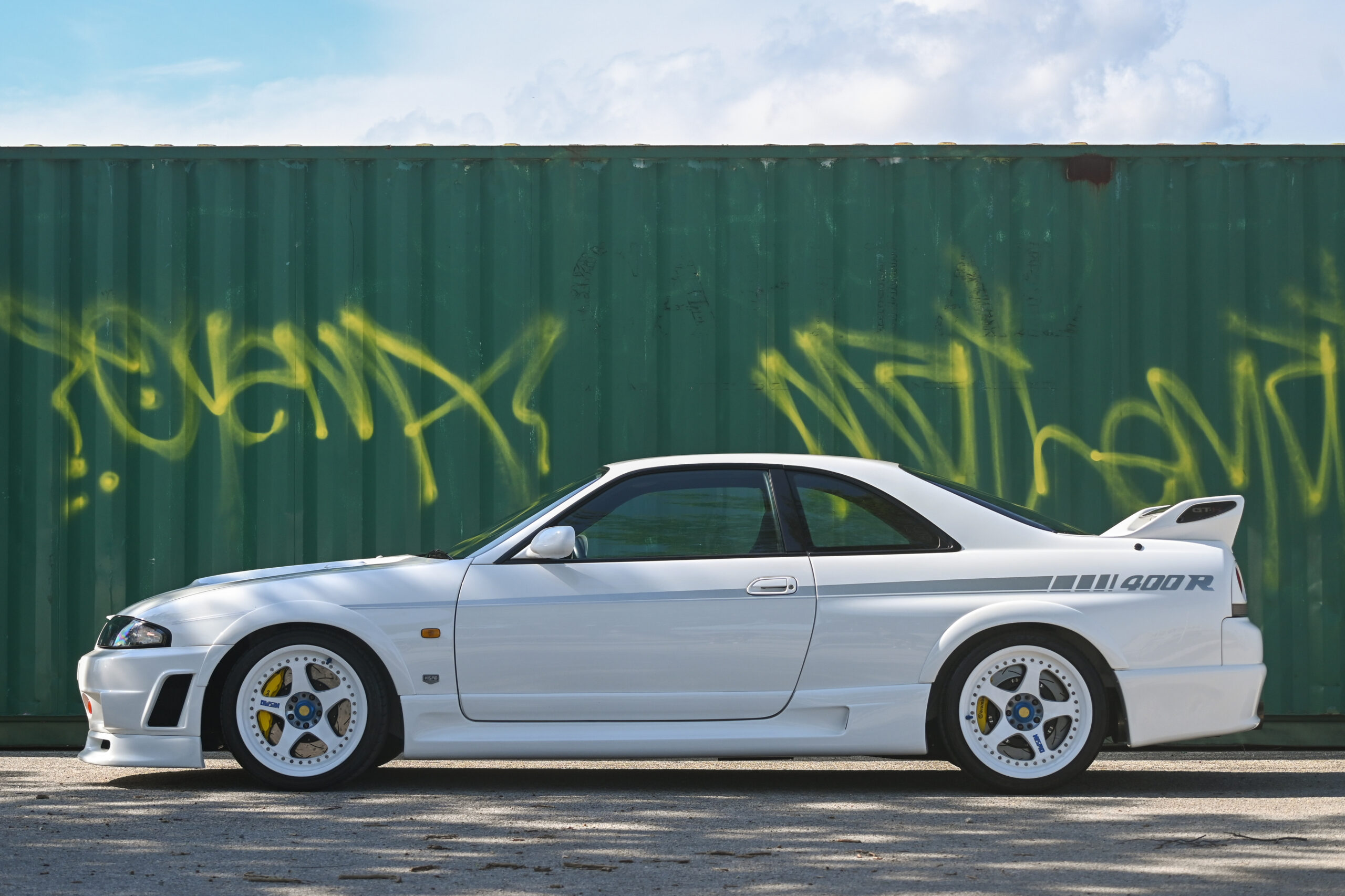

The exterior and interior visuals of this machine have been completely transformed to that of a genuine 400R. Below is the list of genuine parts used in this build:

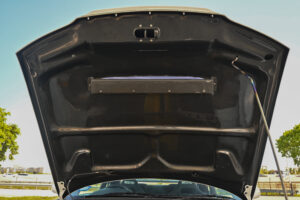

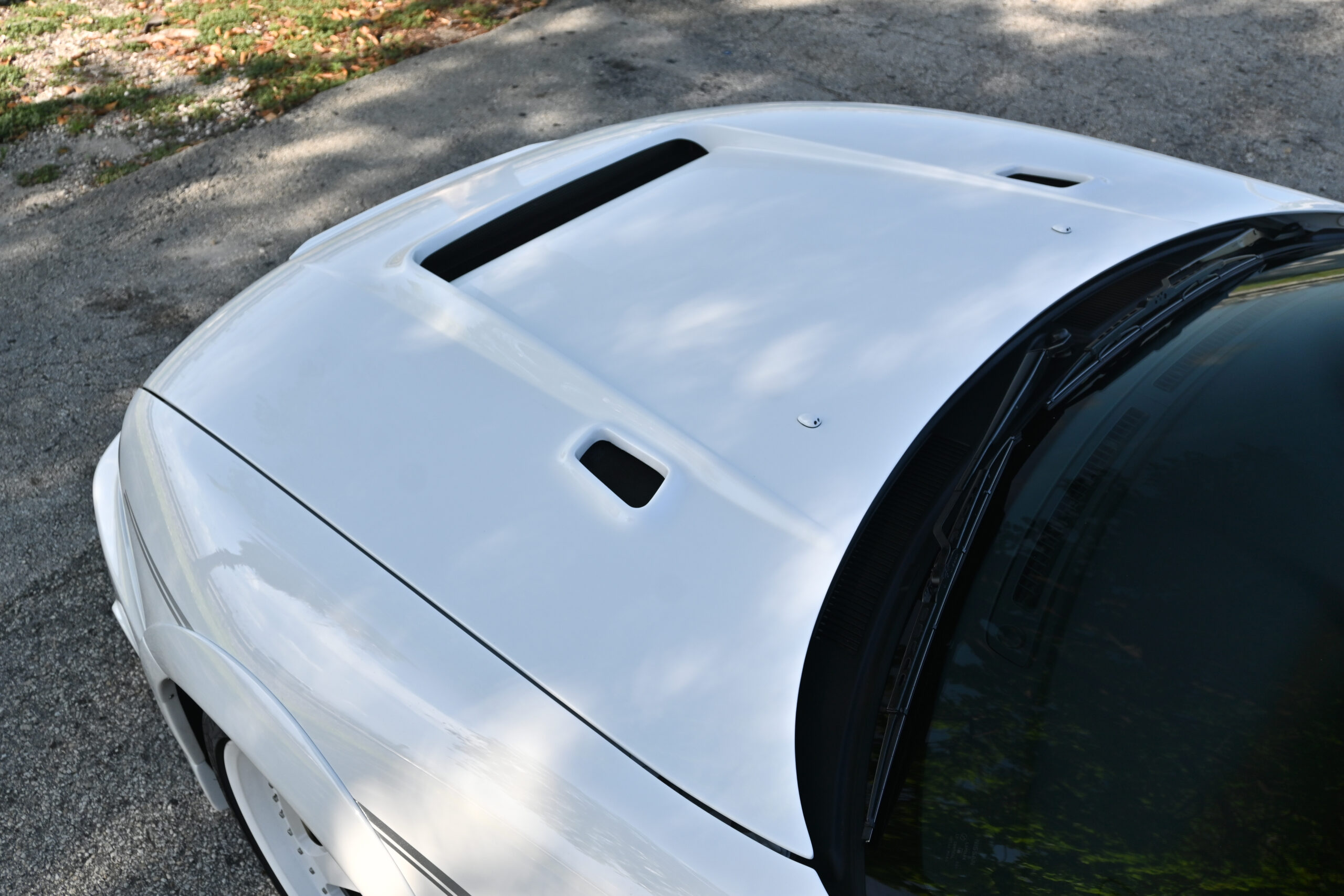

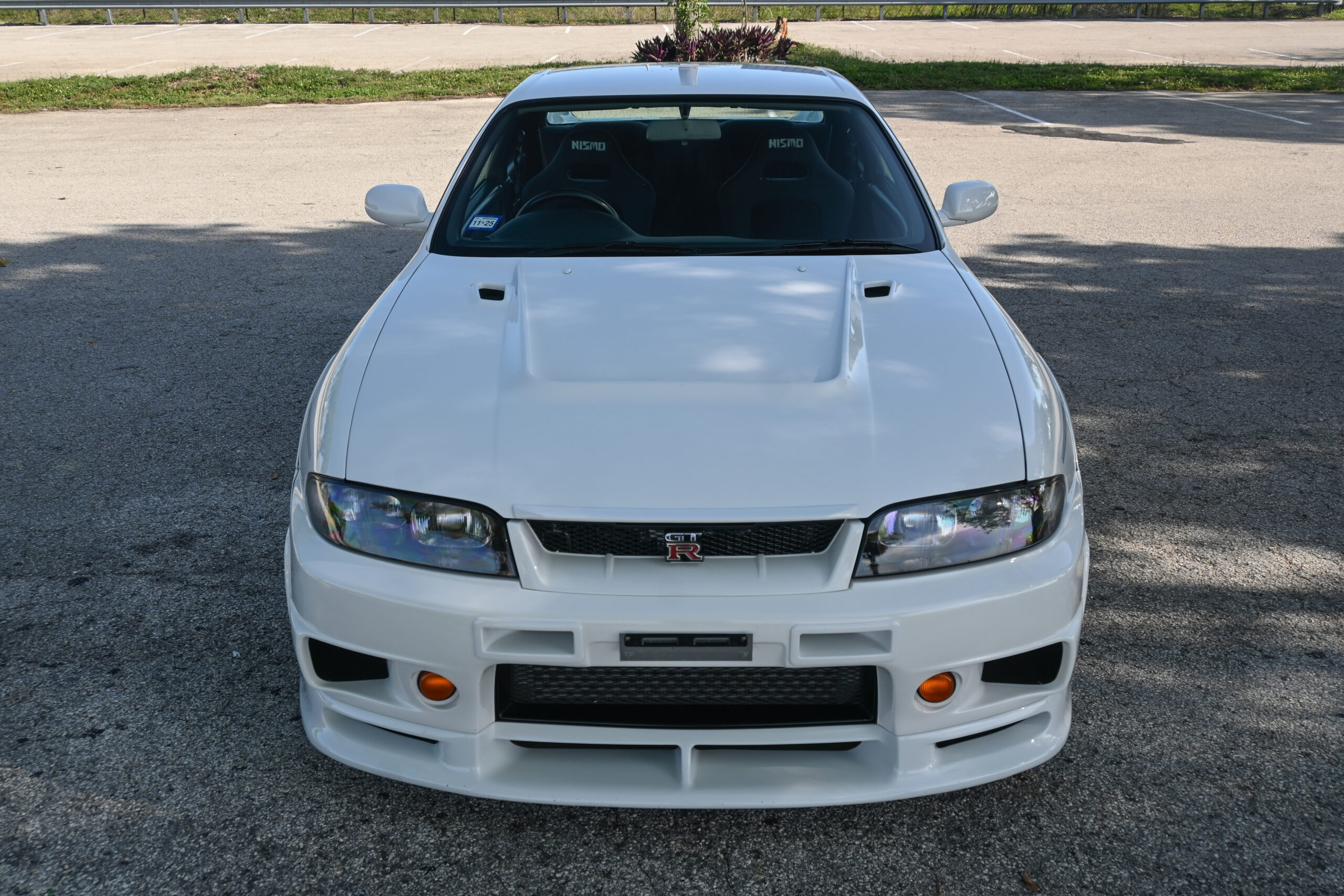

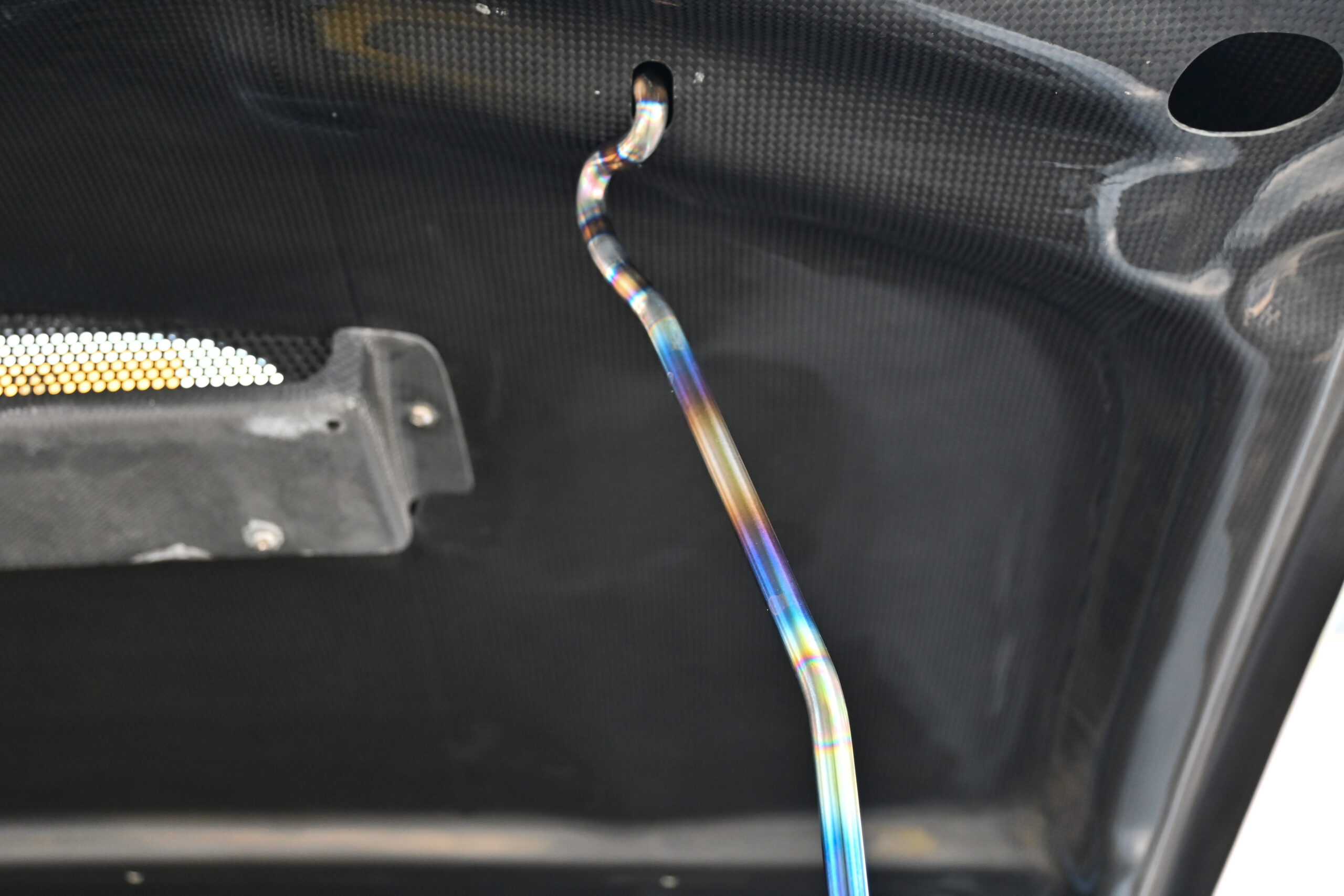

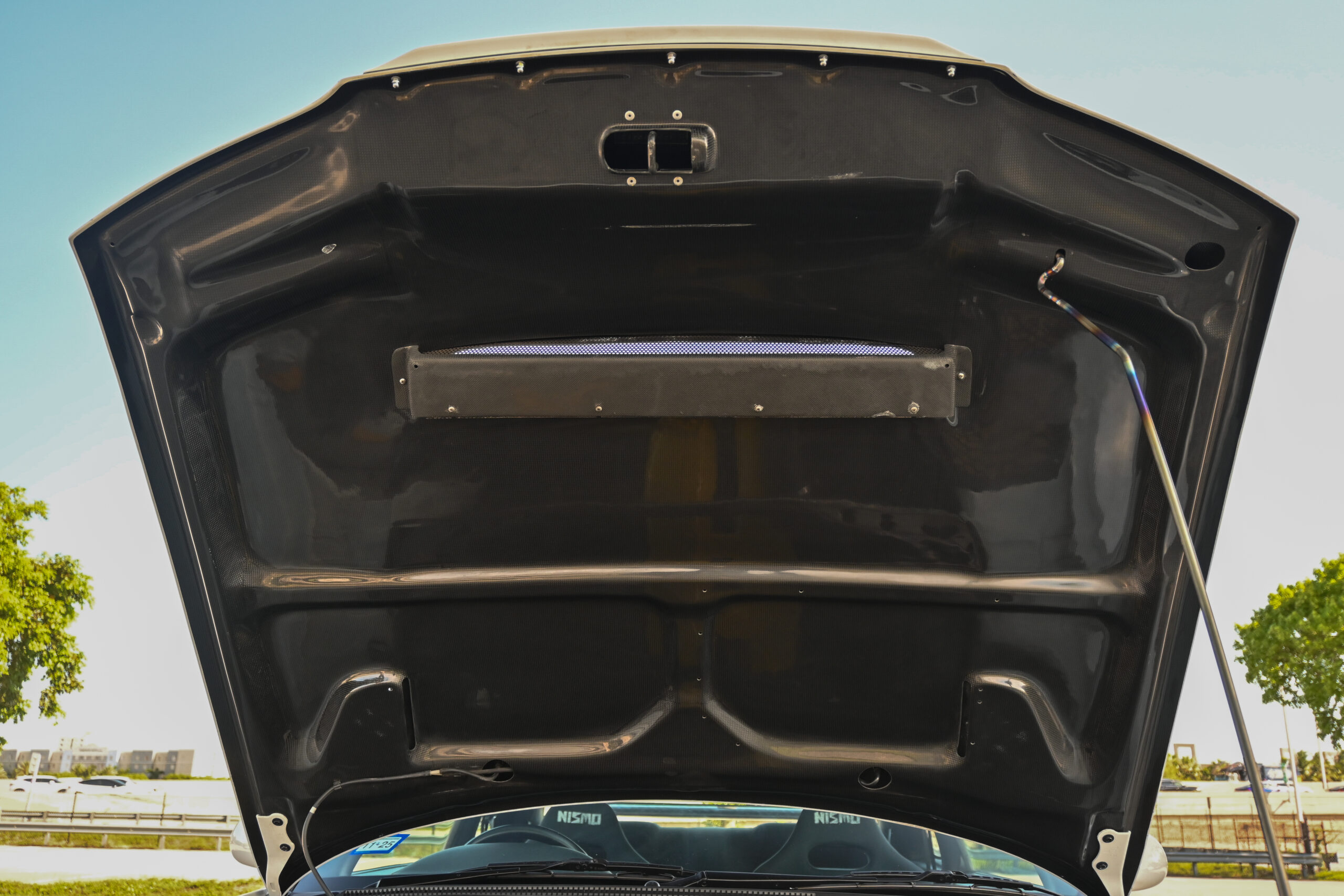

• 400R bonnet

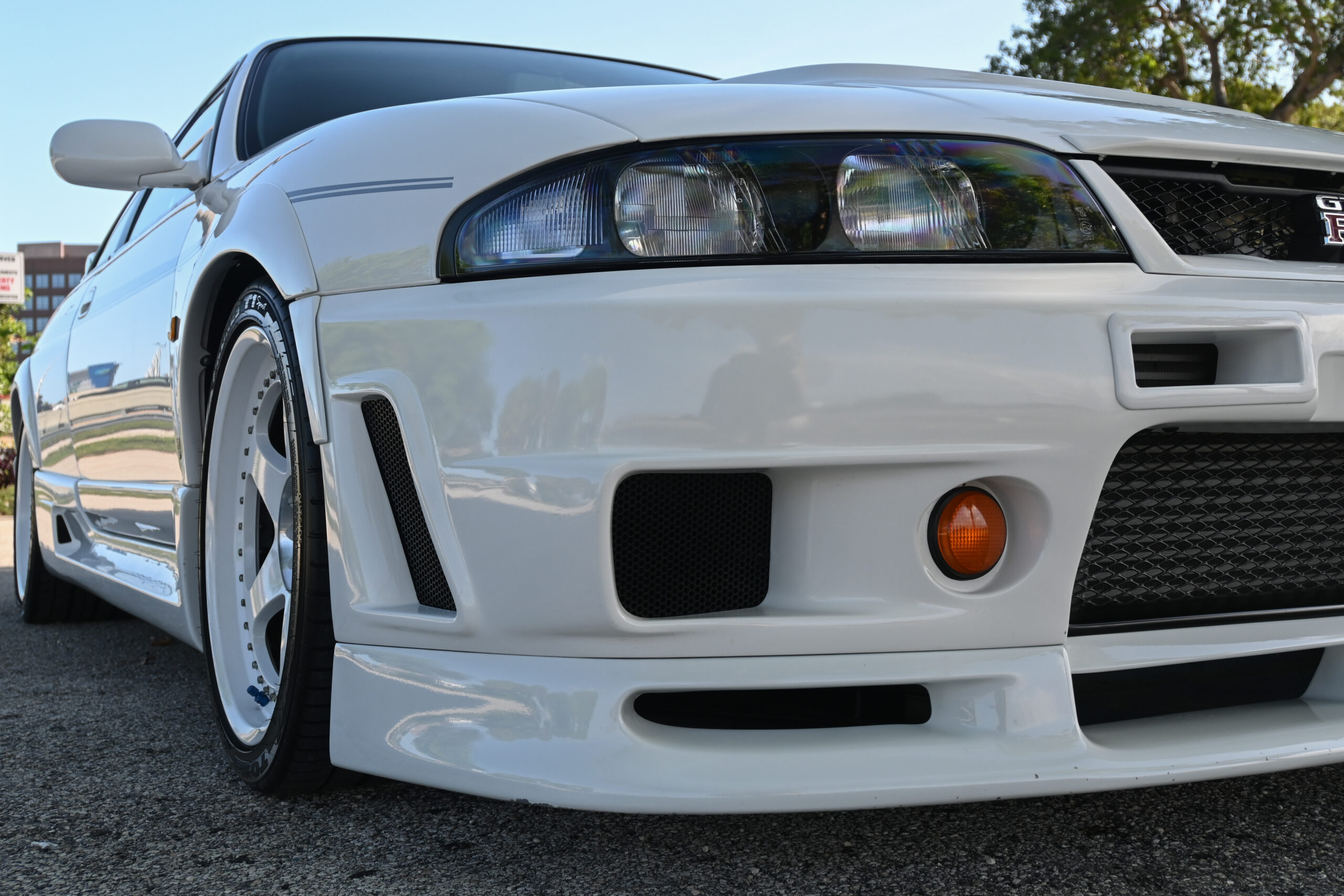

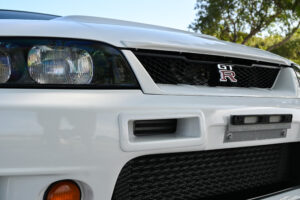

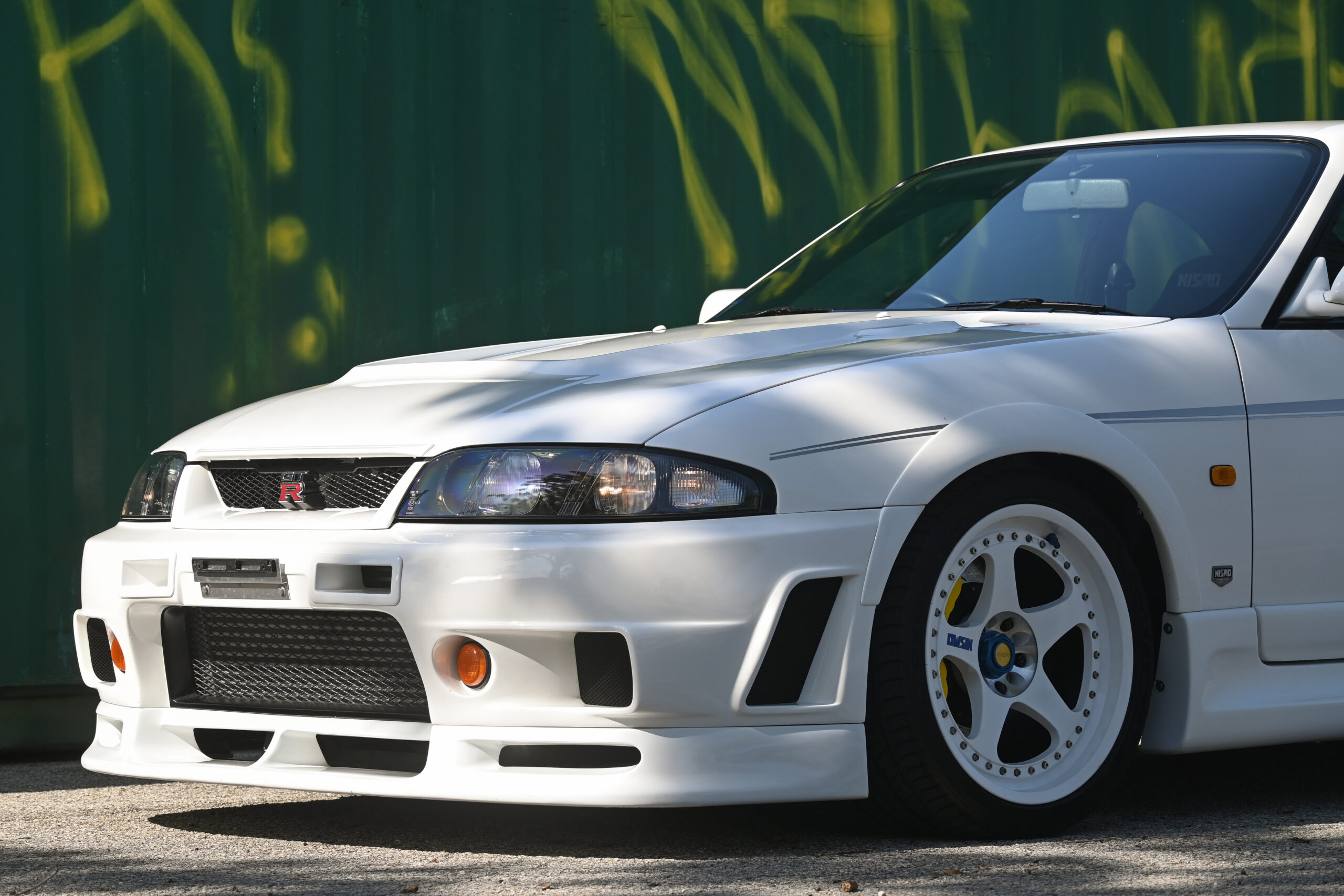

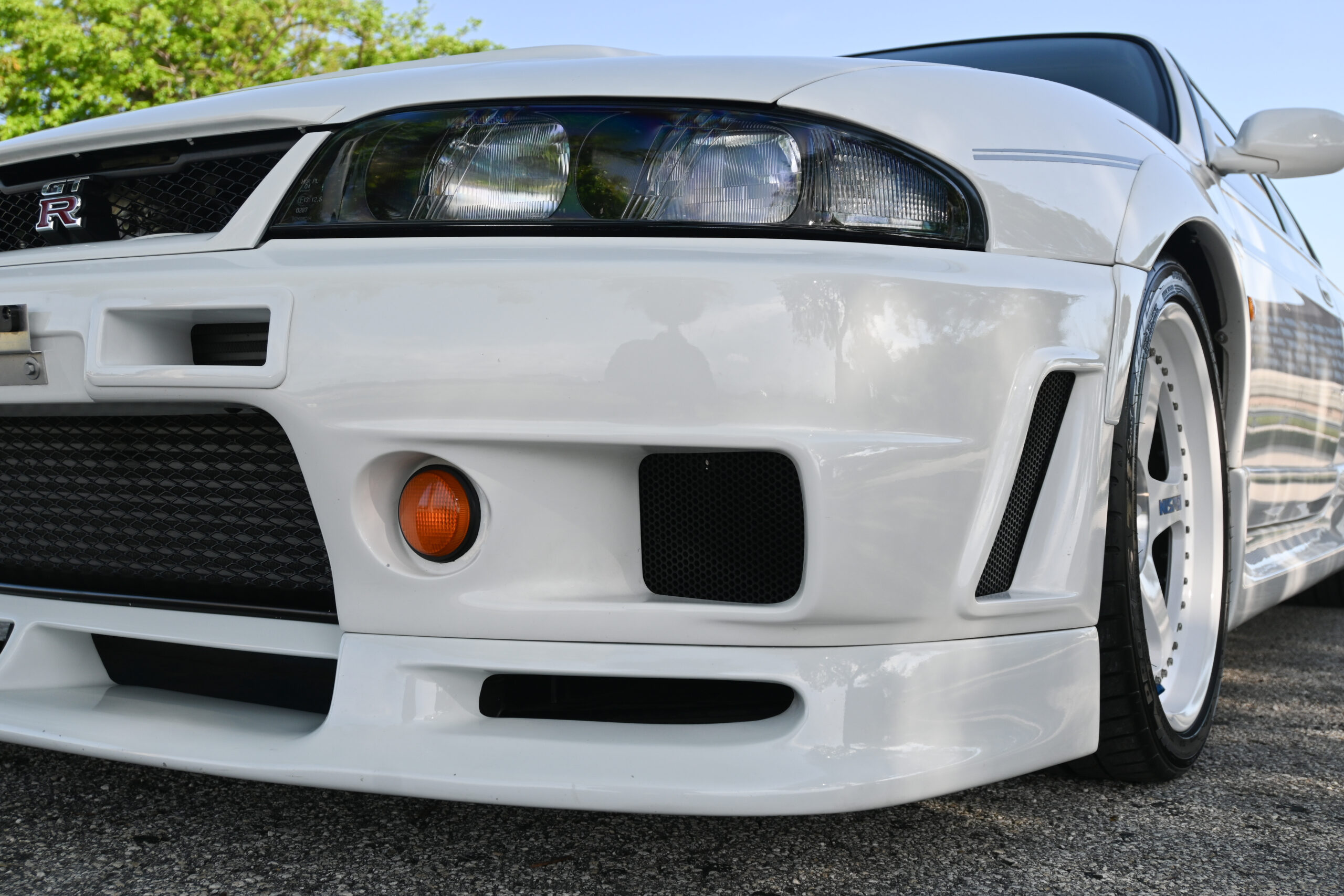

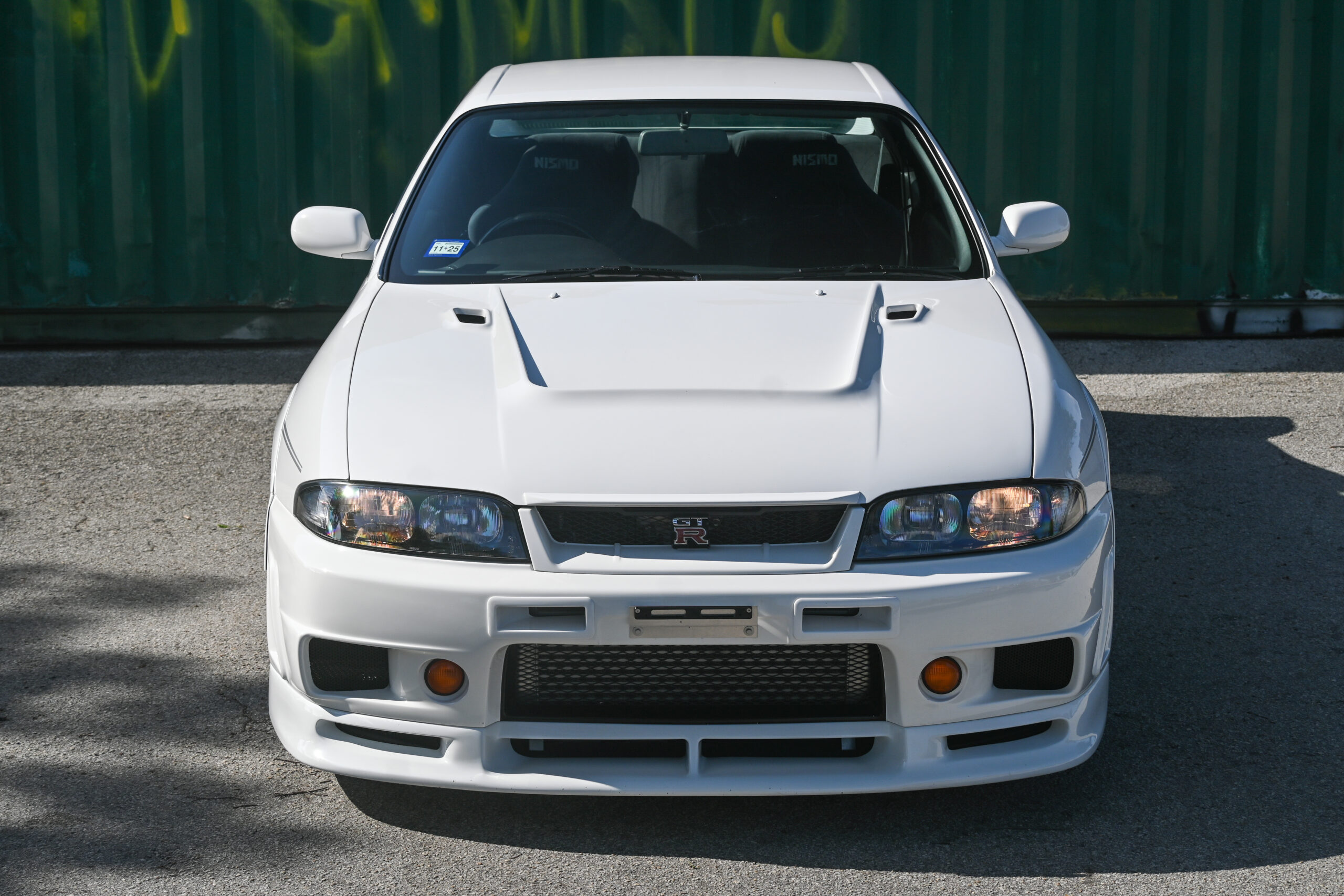

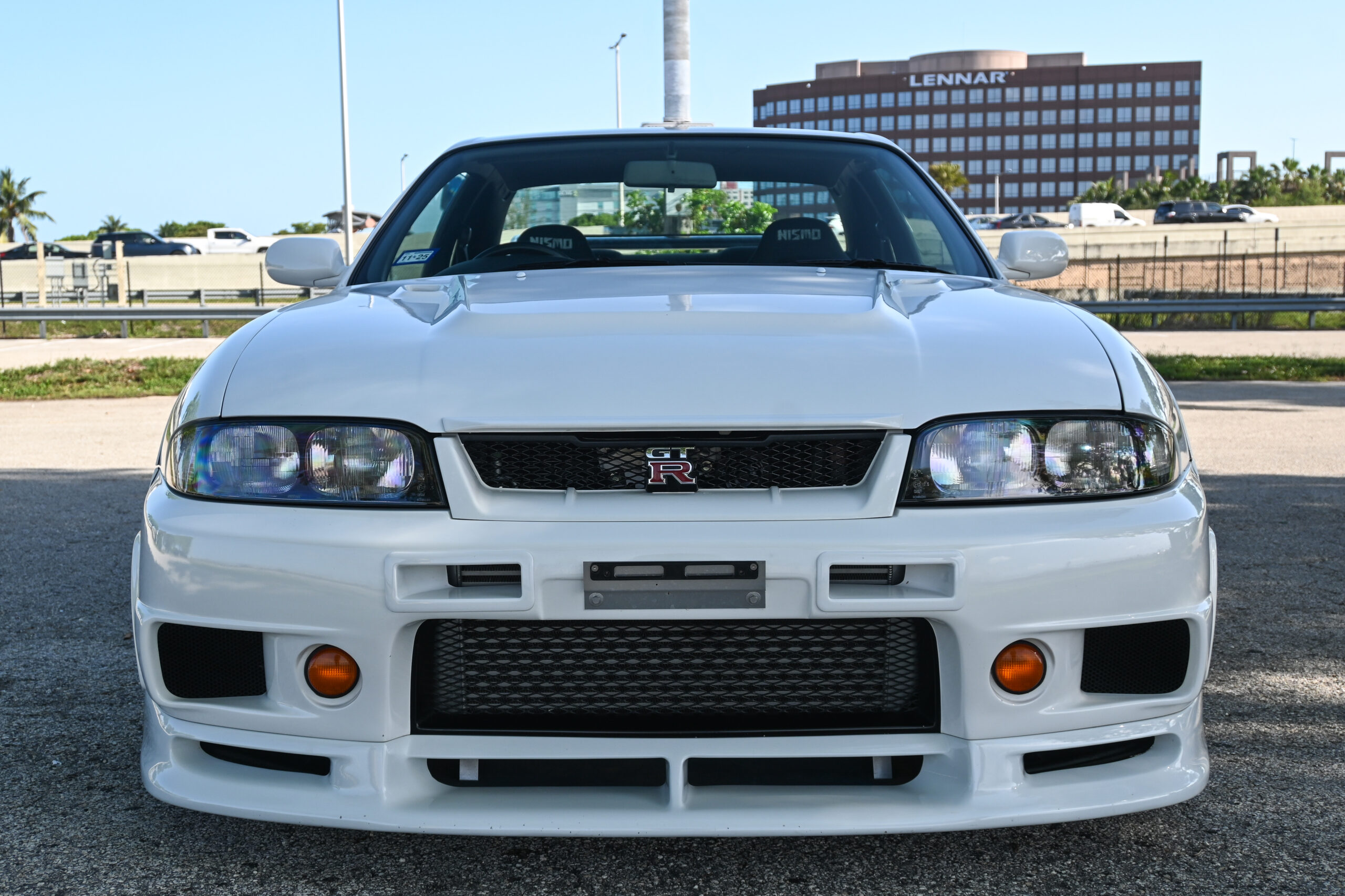

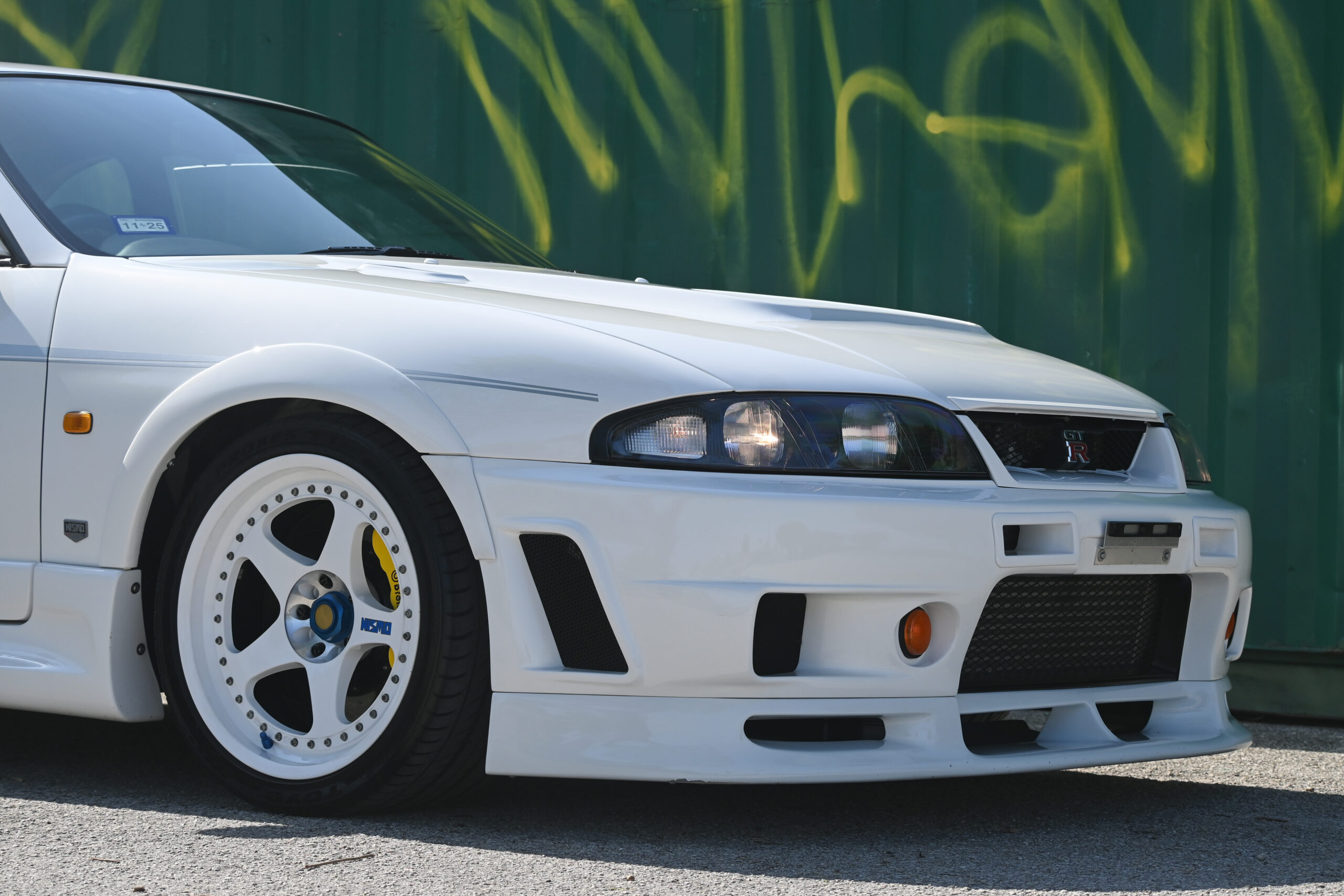

• 400R front bumper

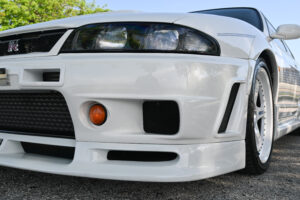

• 400R front lower lip
• 400R lower diffuser

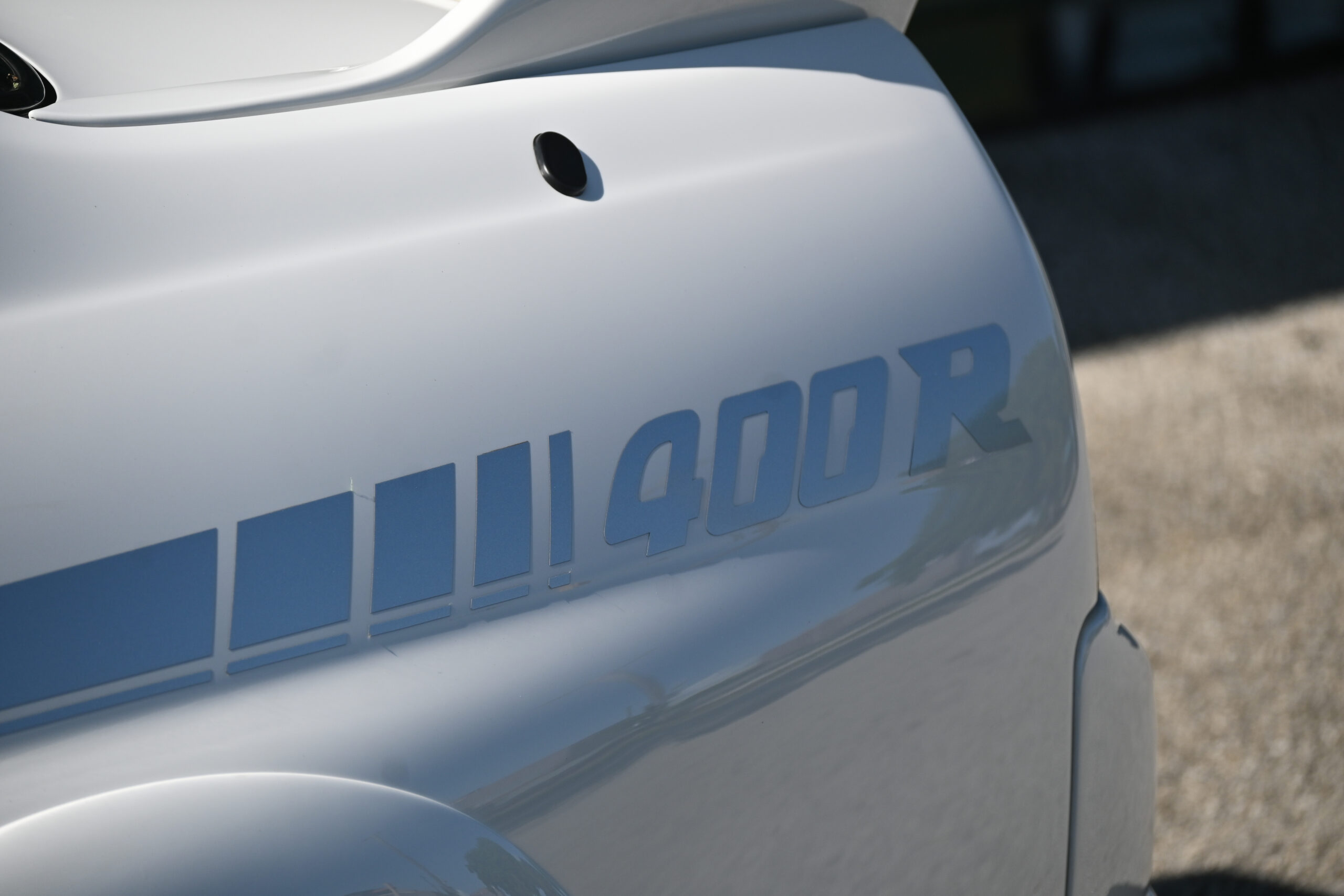

• 400R fender flares
• 400R side skirts

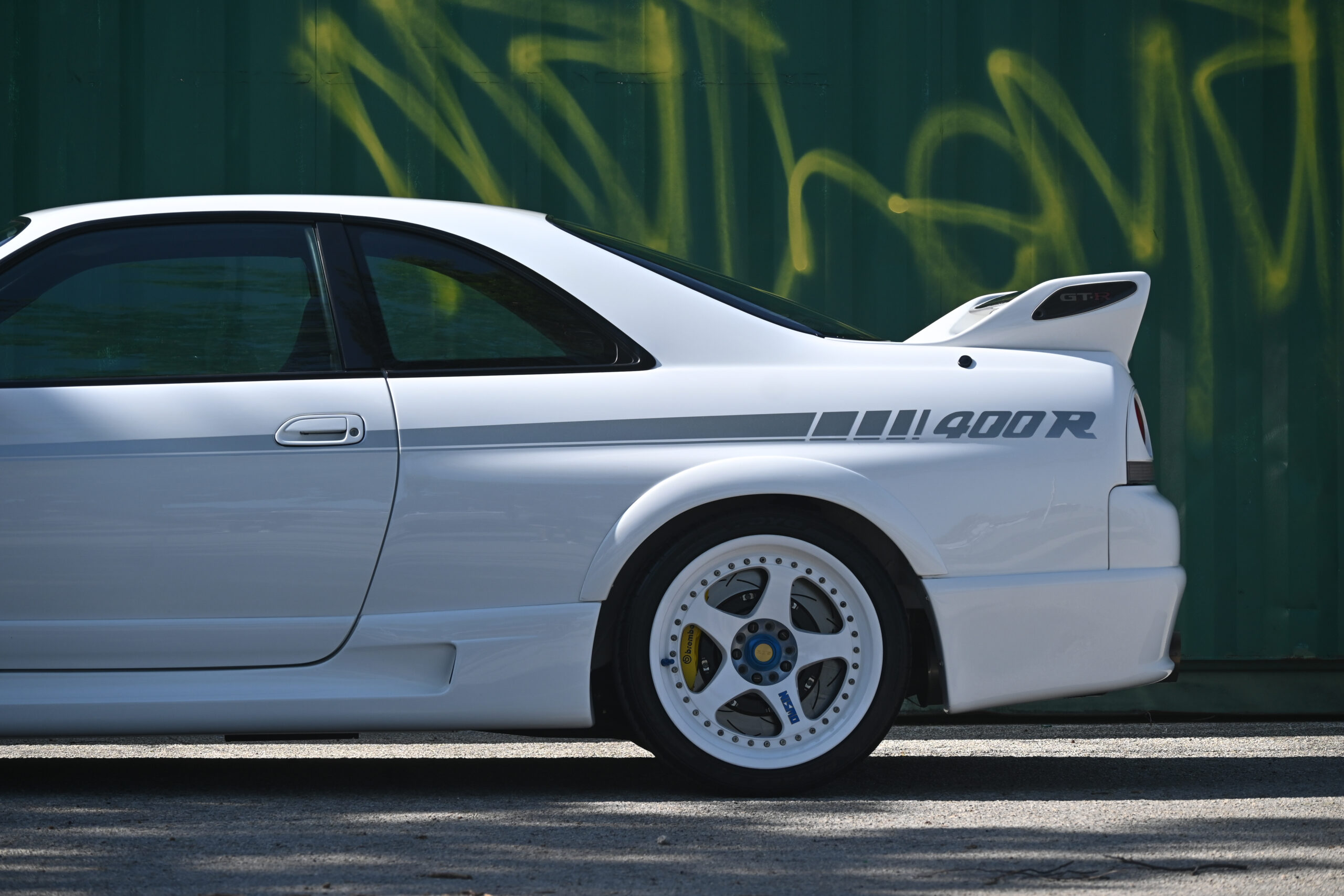

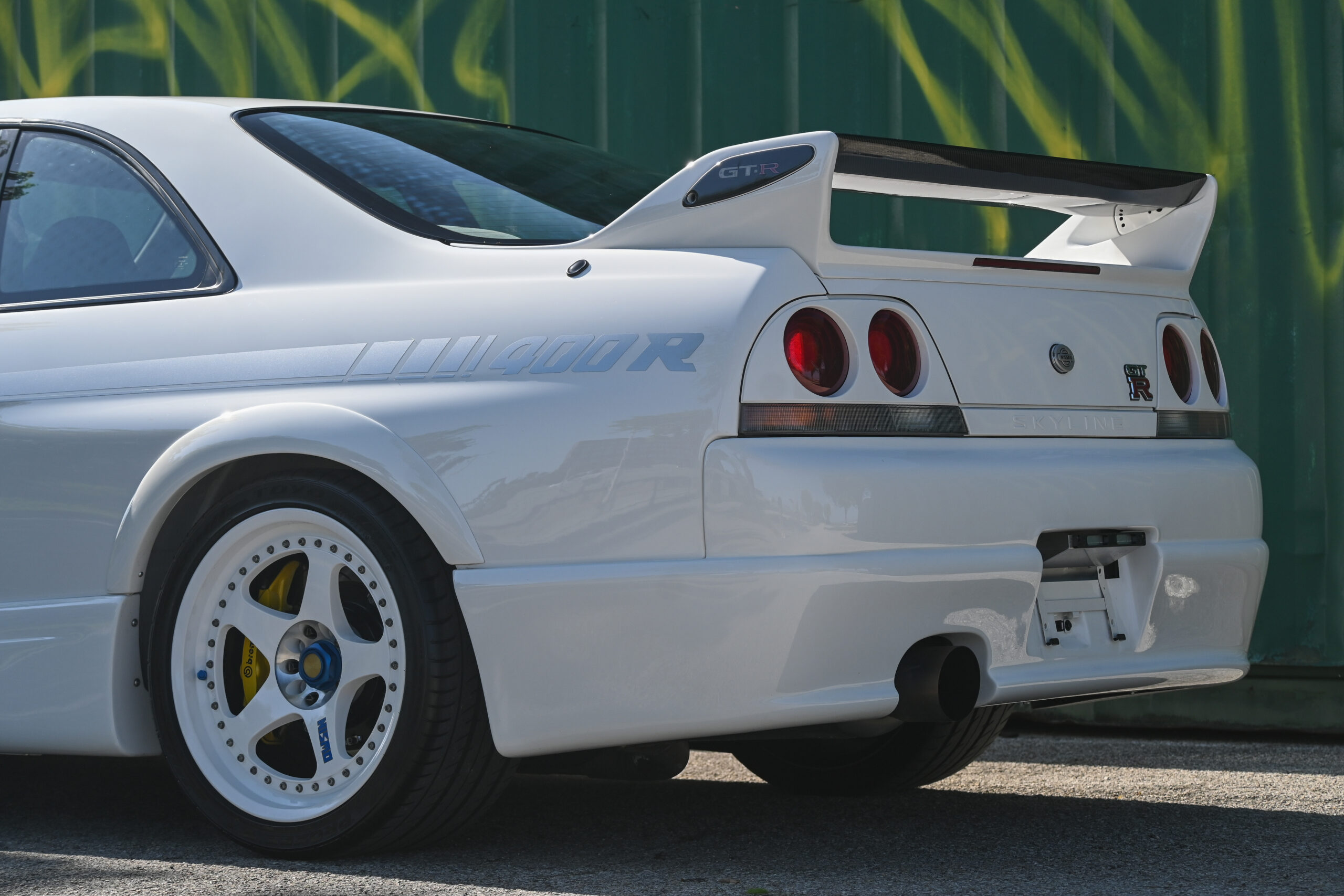

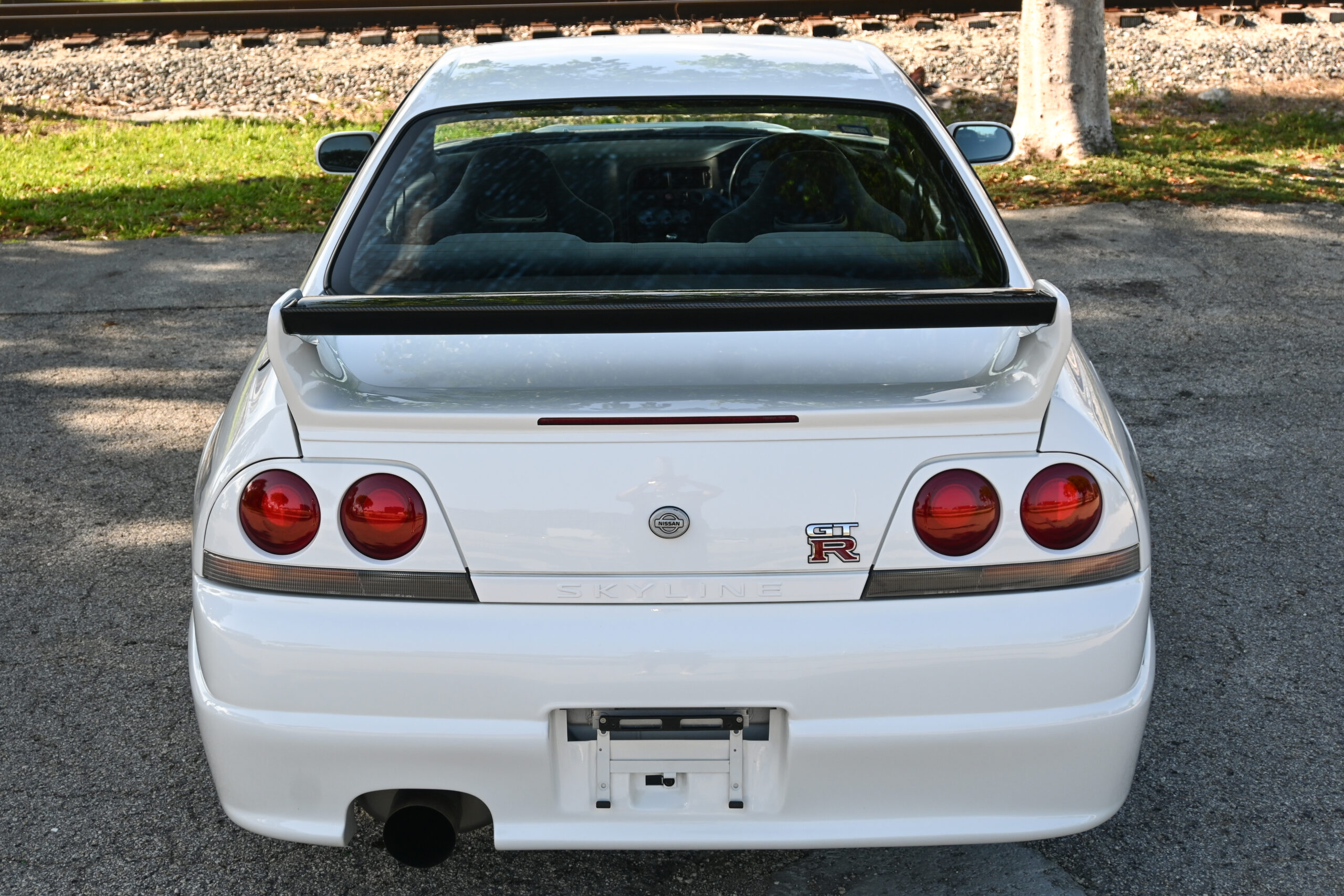

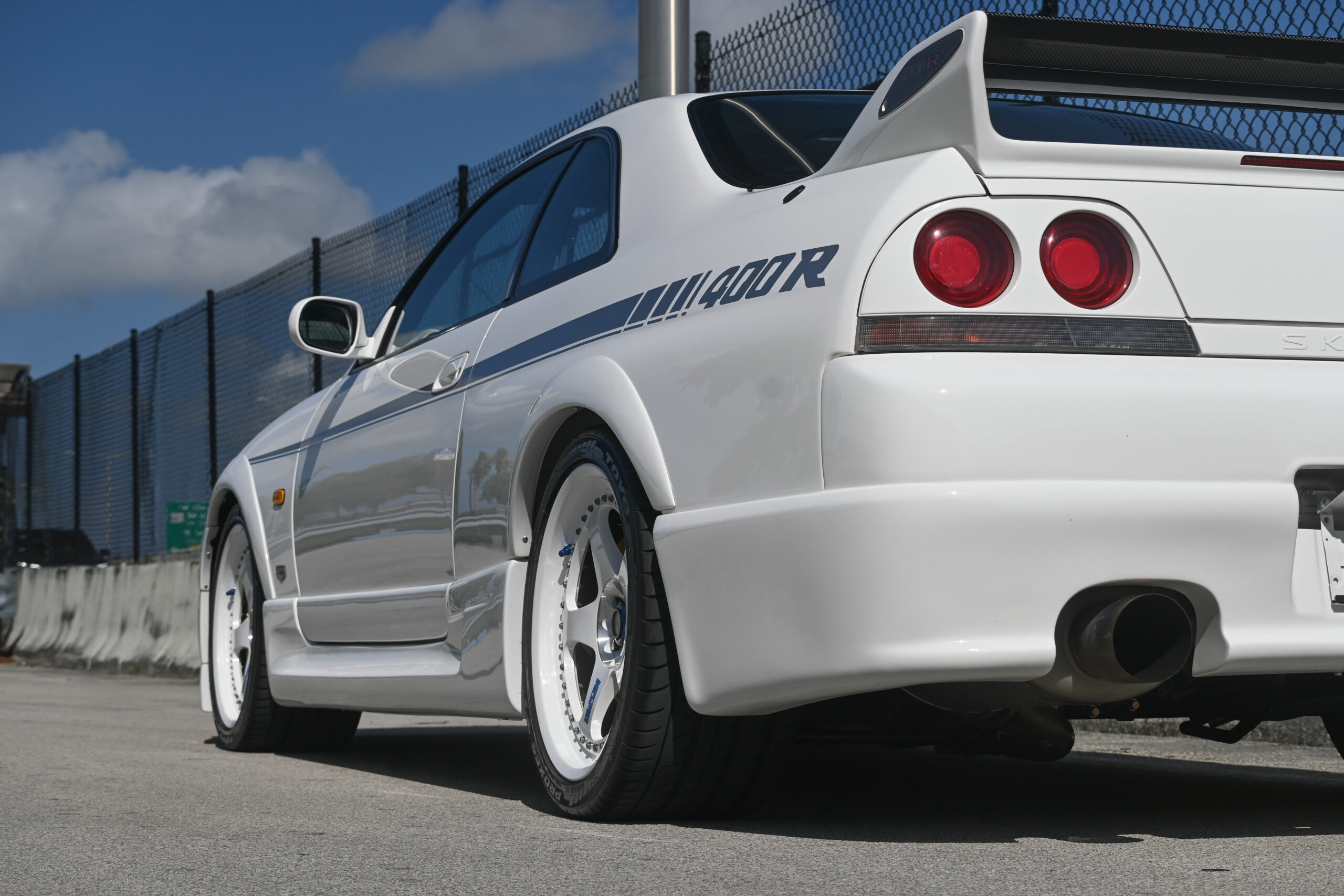

• 400R rear bumper

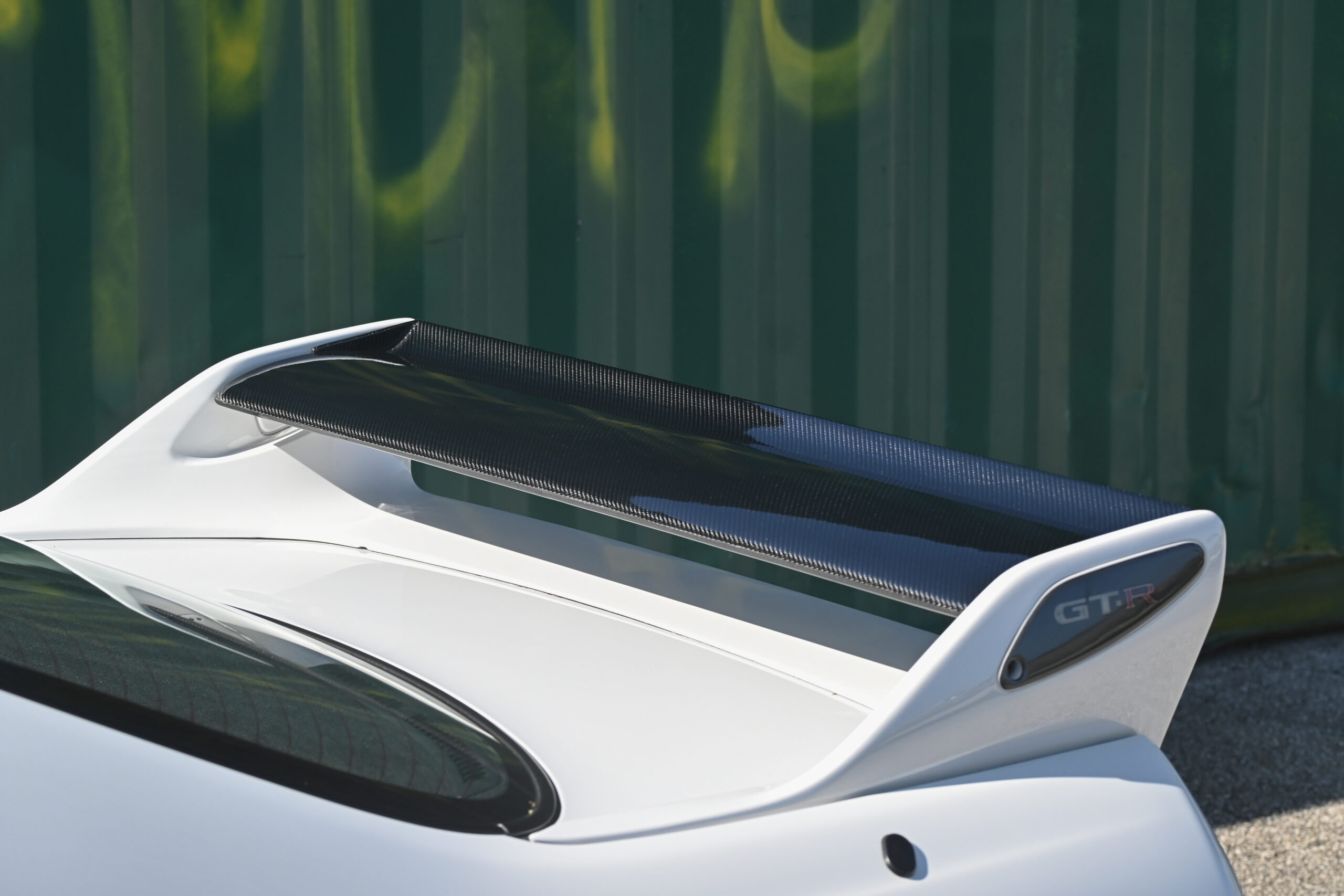

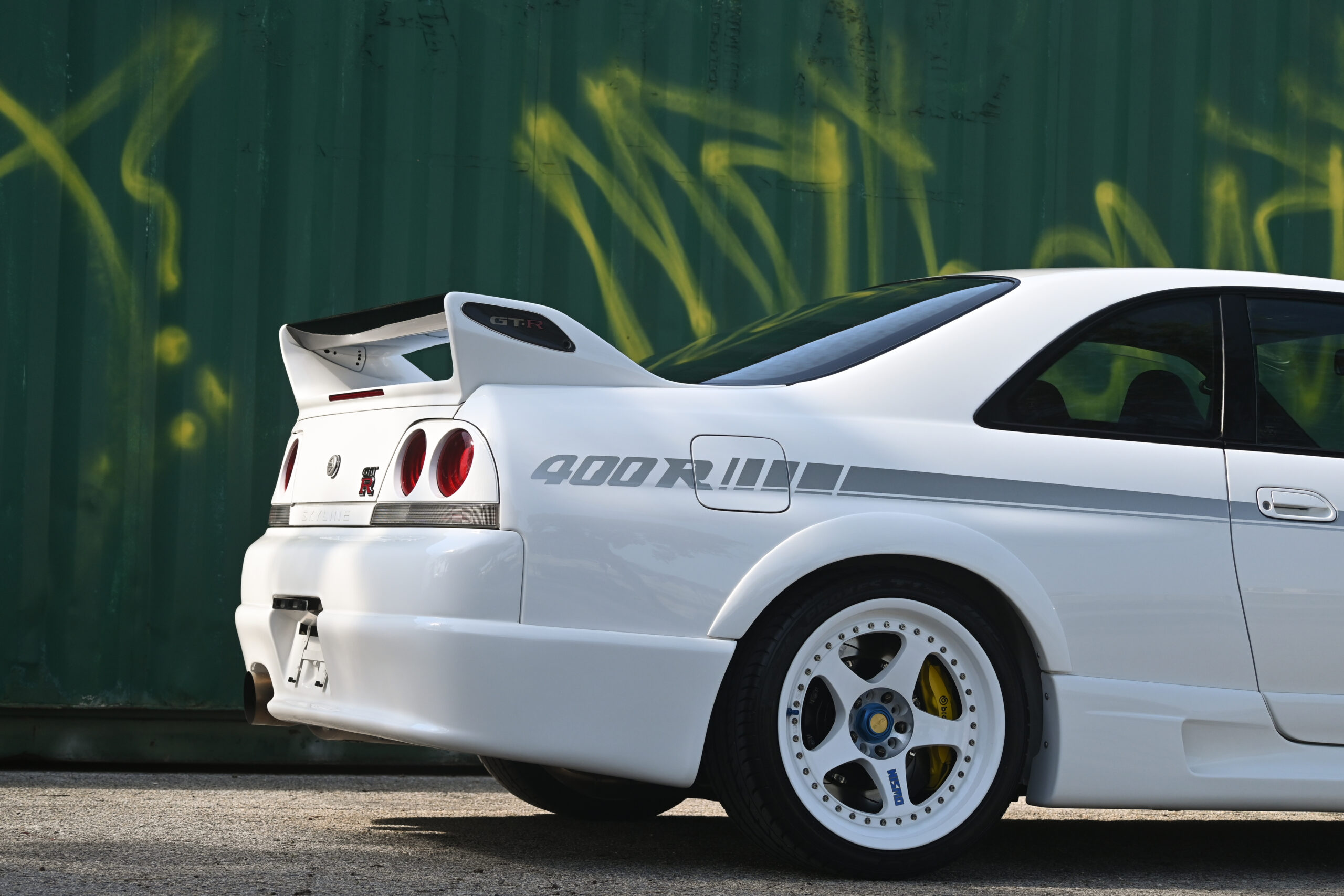

• 400R carbon wing element
• 400R old-logo fender badges

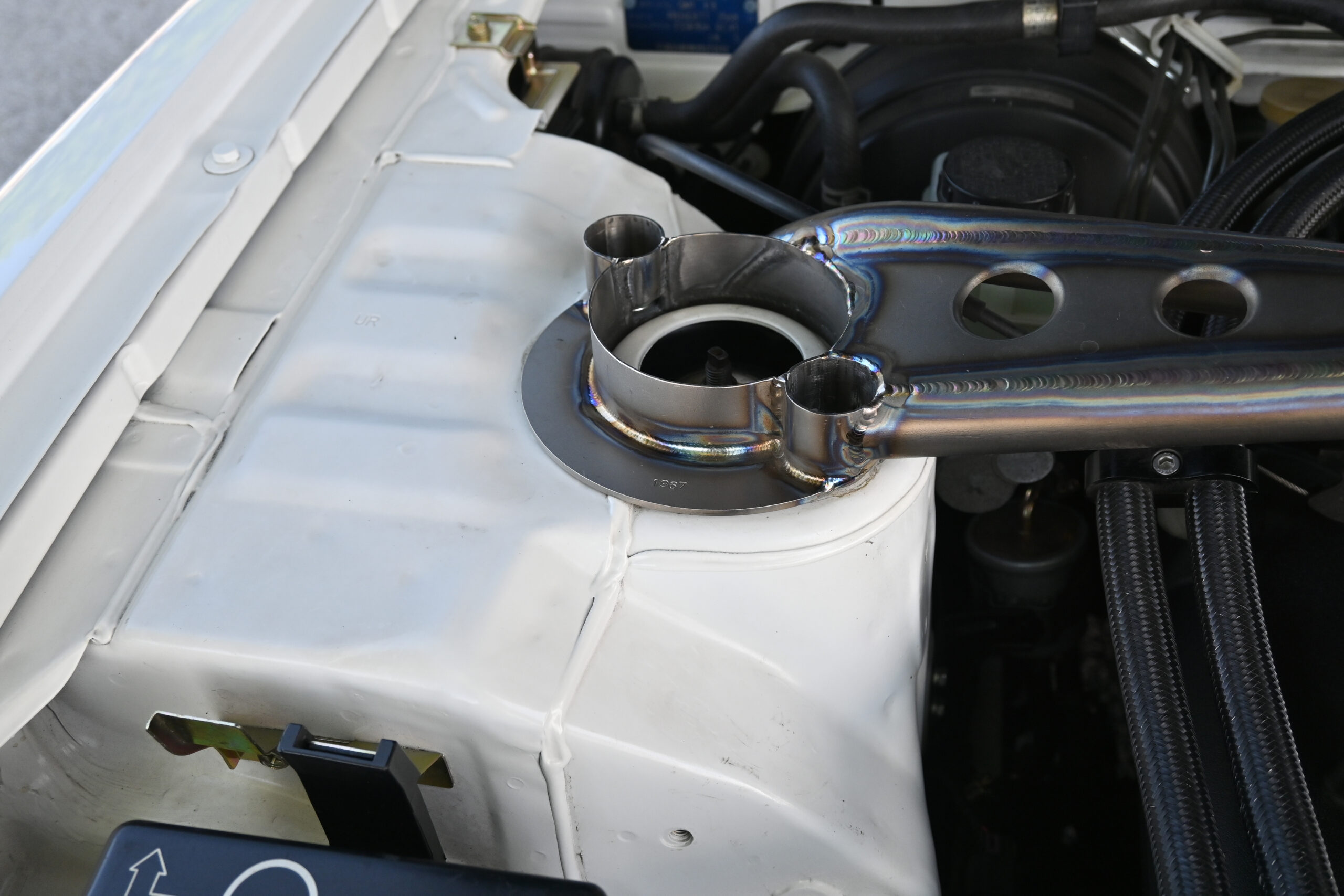

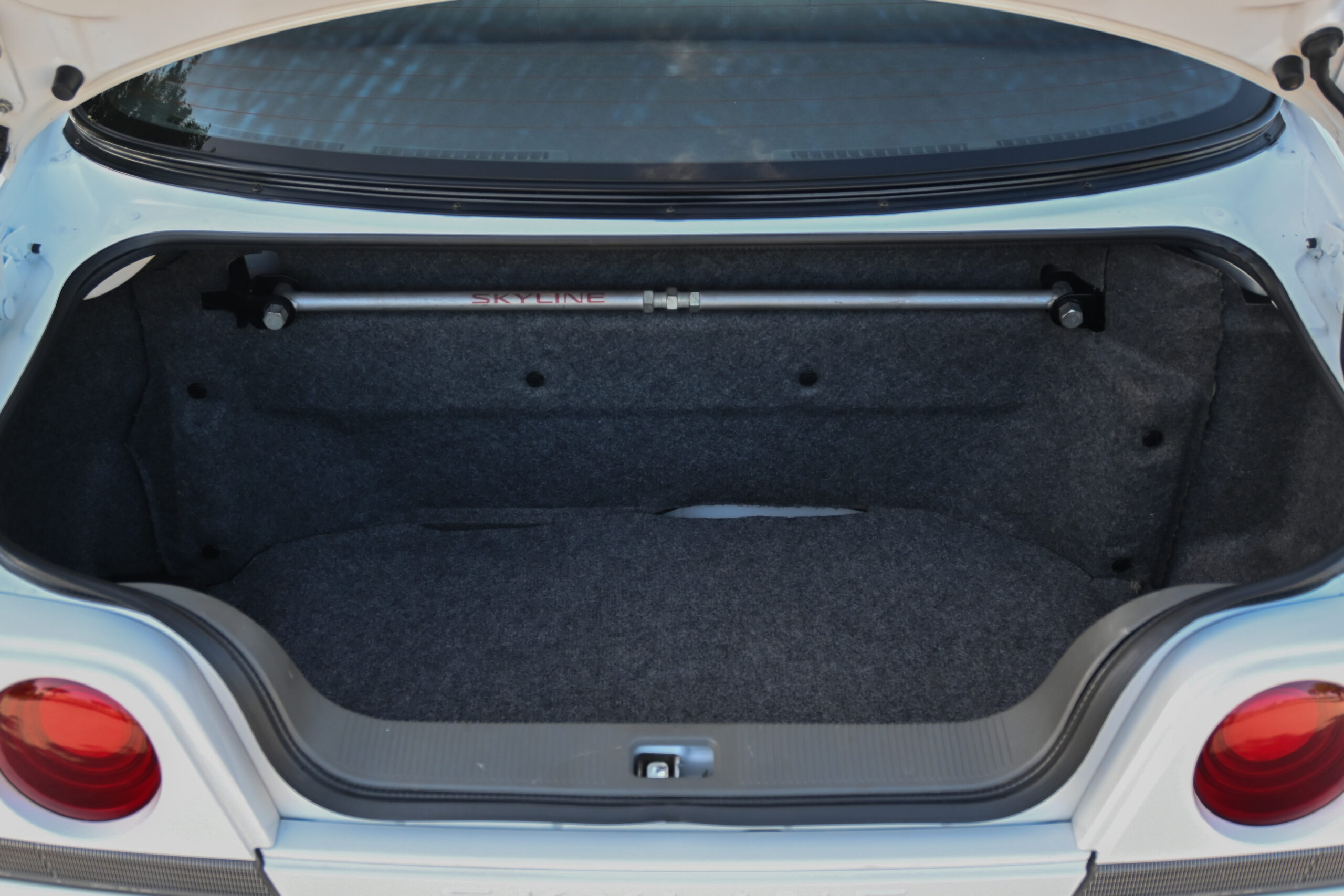

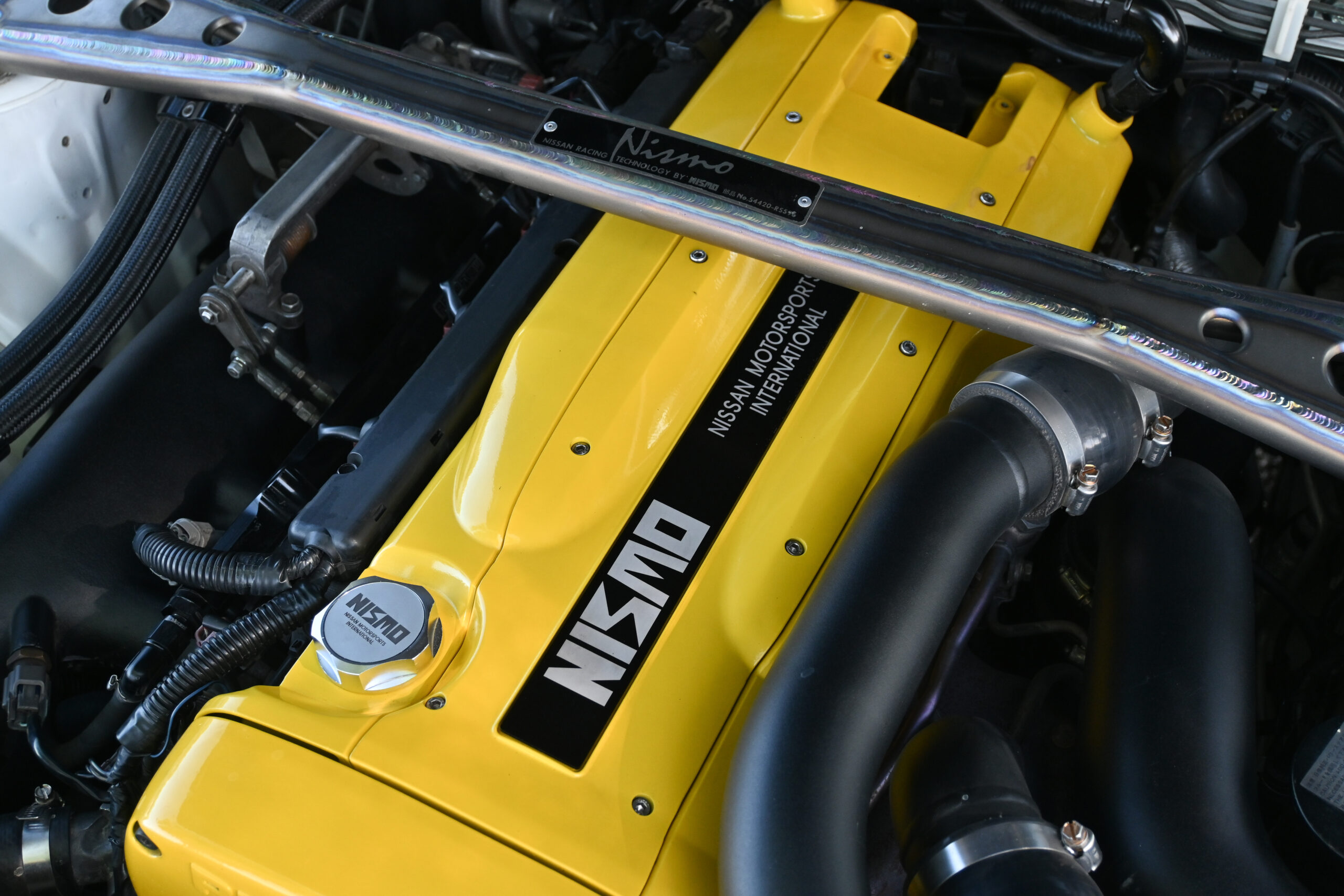

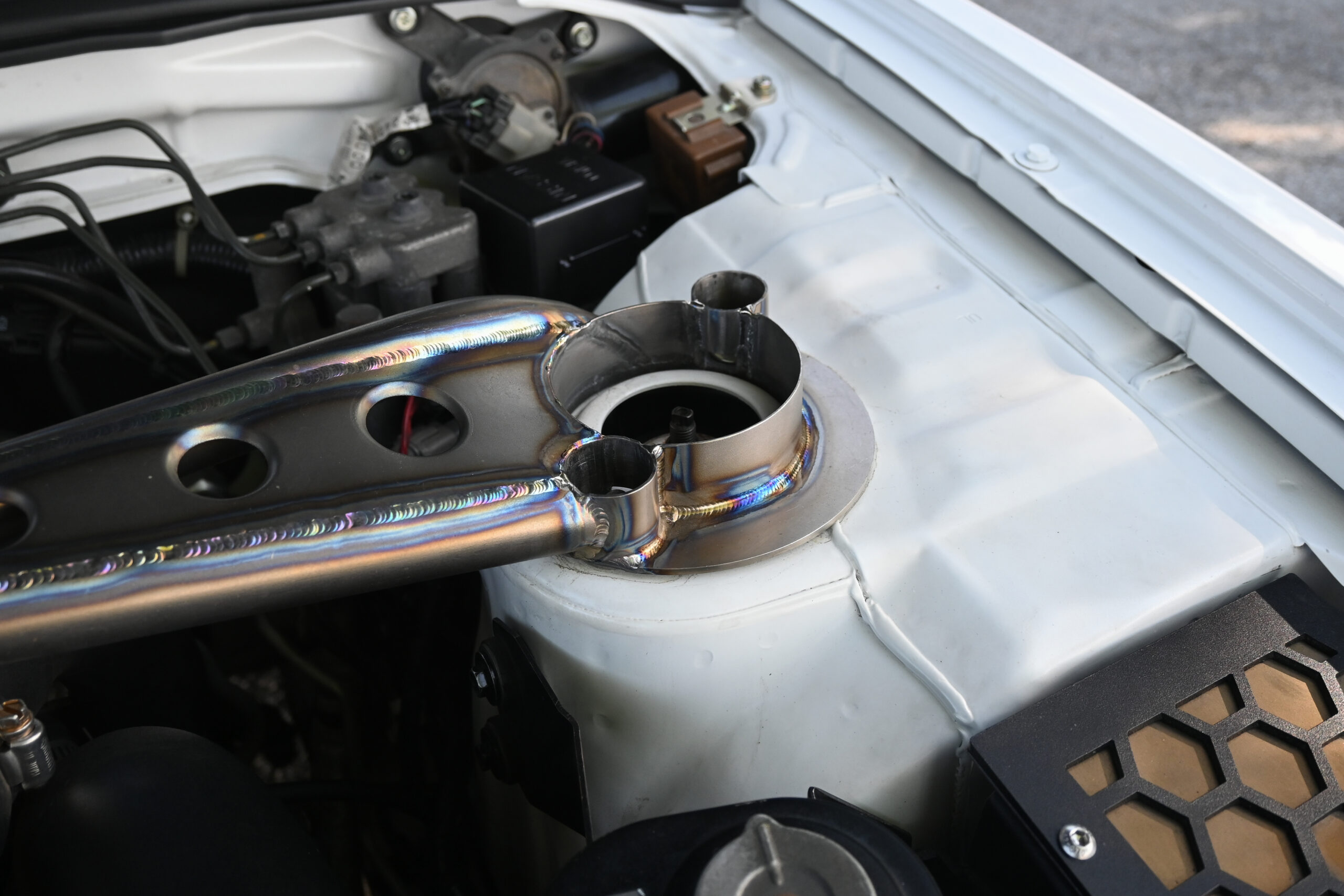

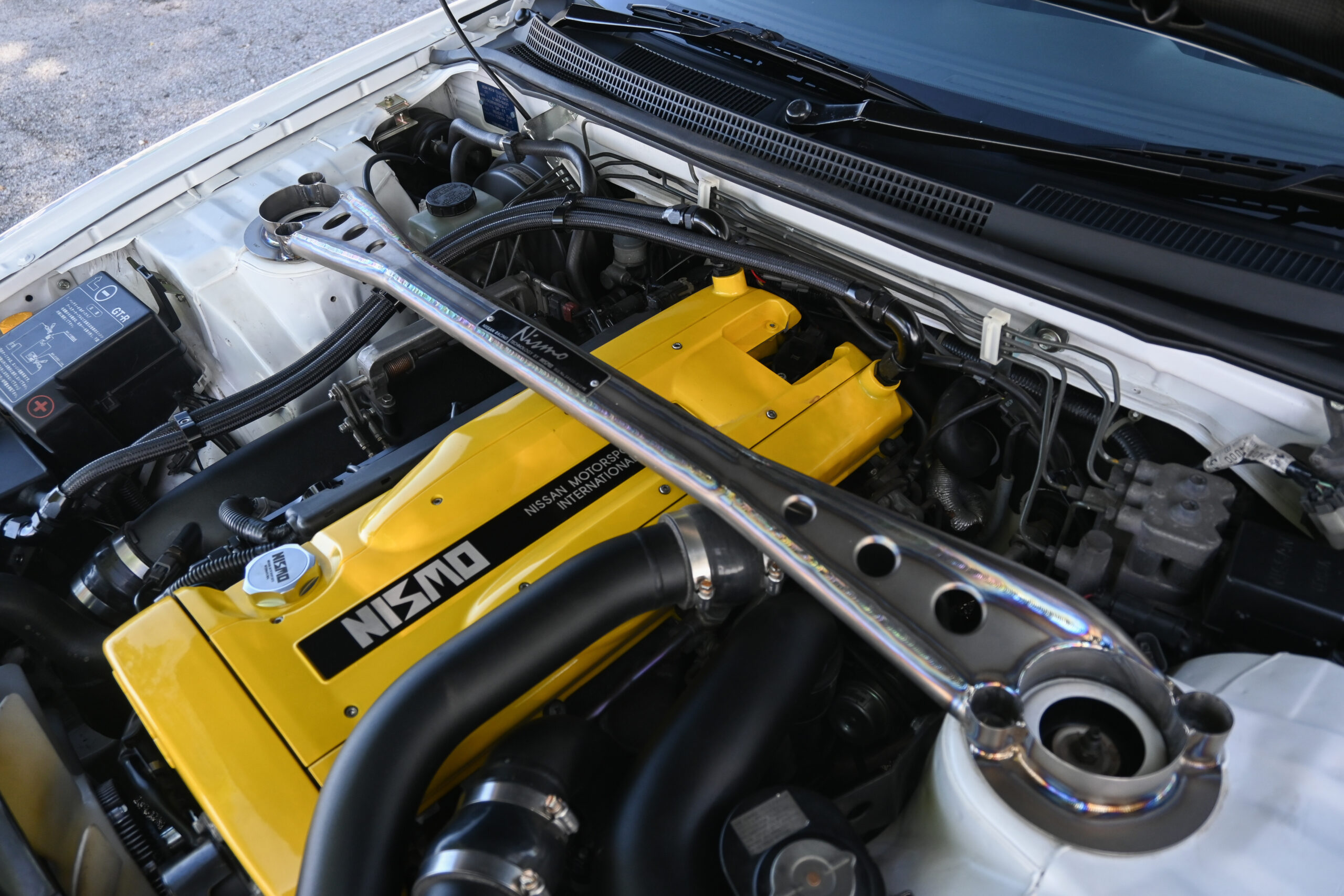

• 400R strut brace

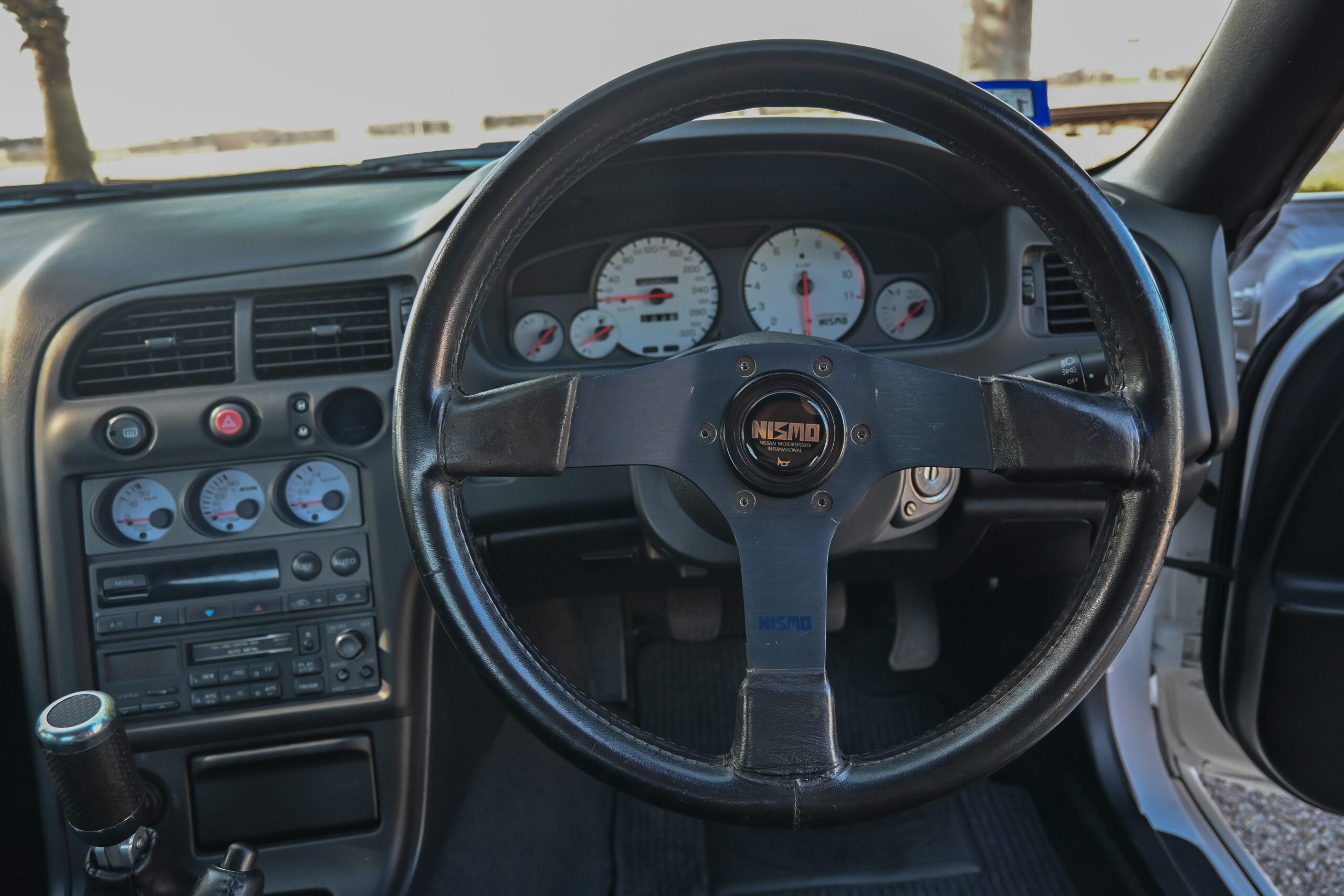

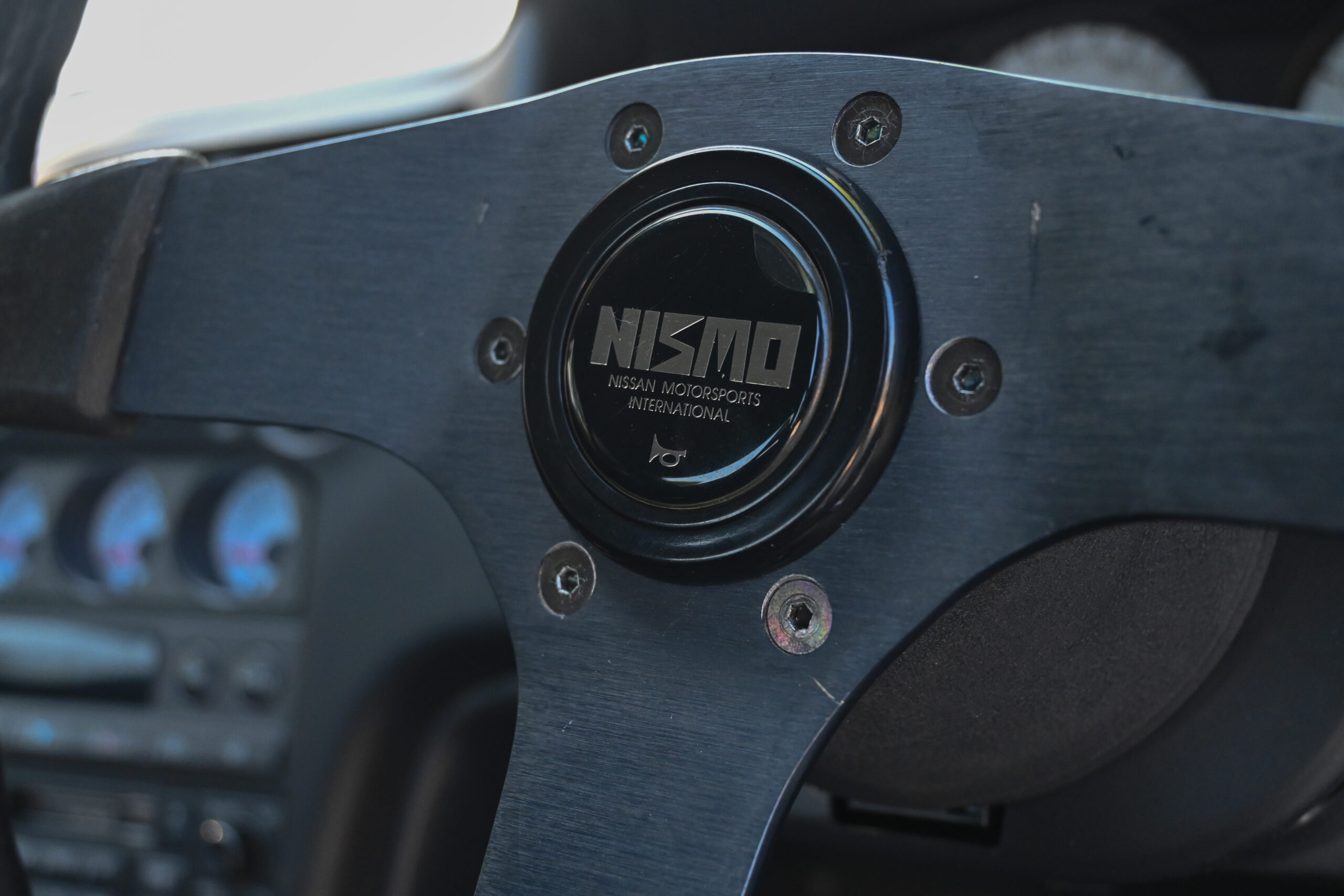

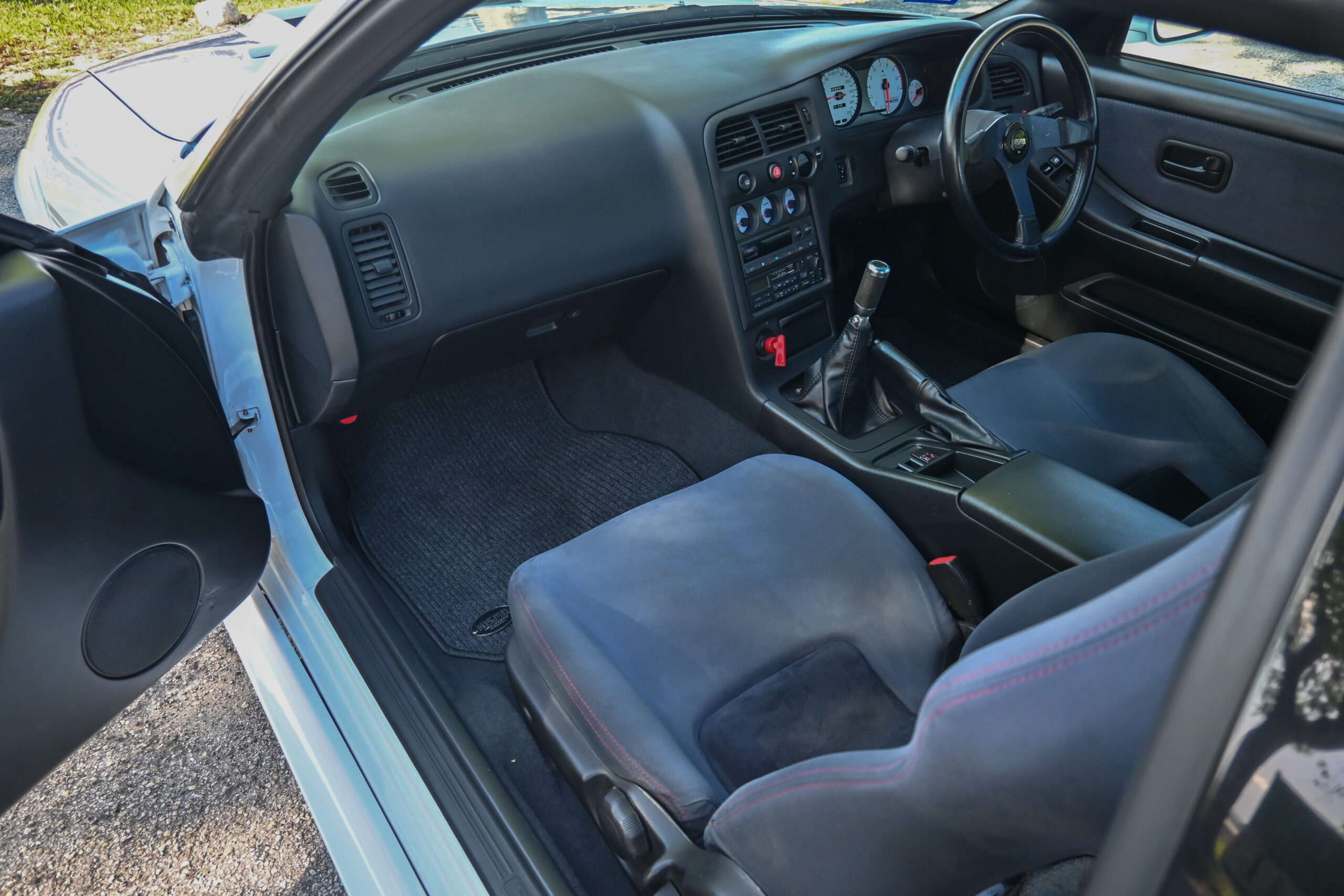

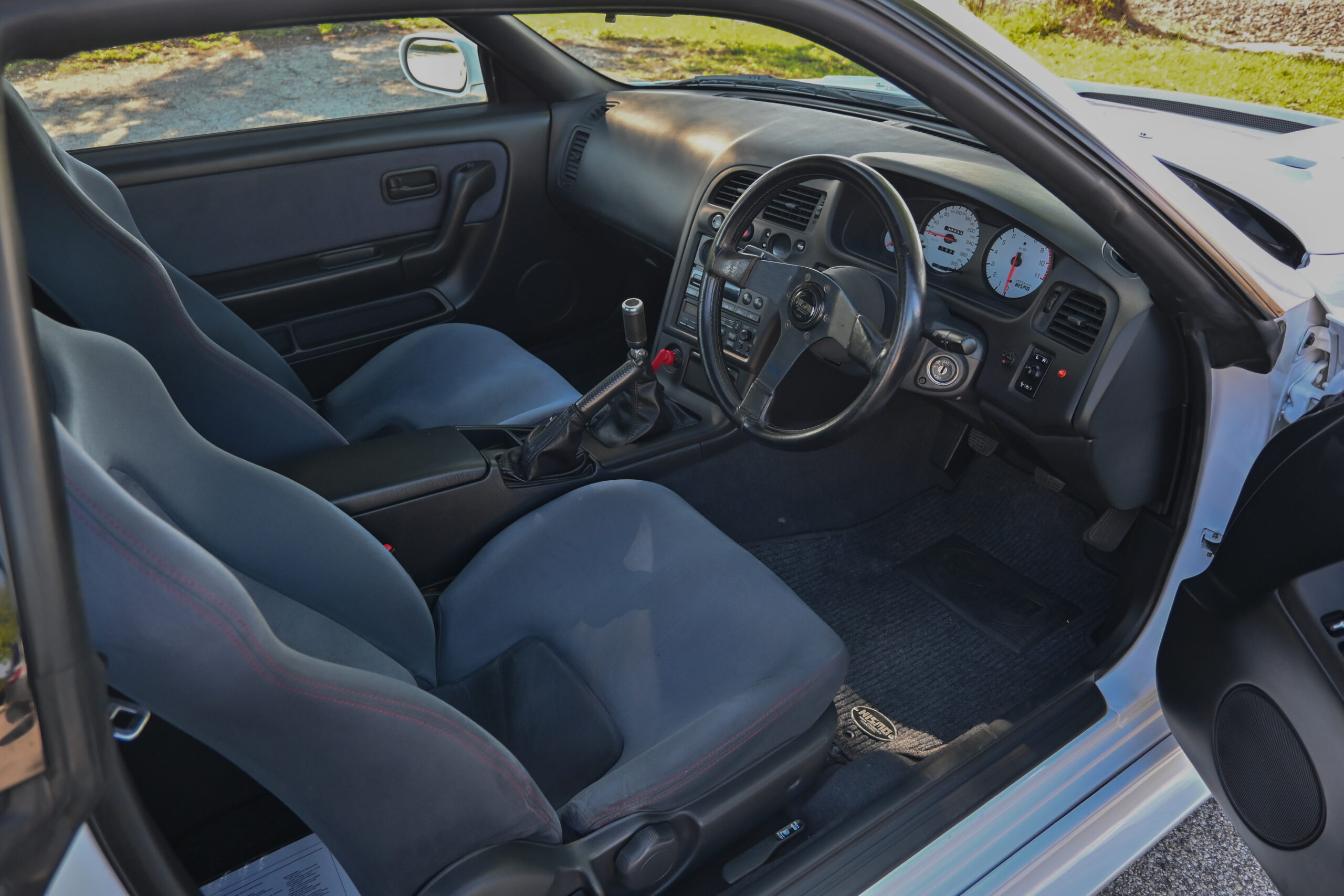

• 400R Nismo 365B steering wheel

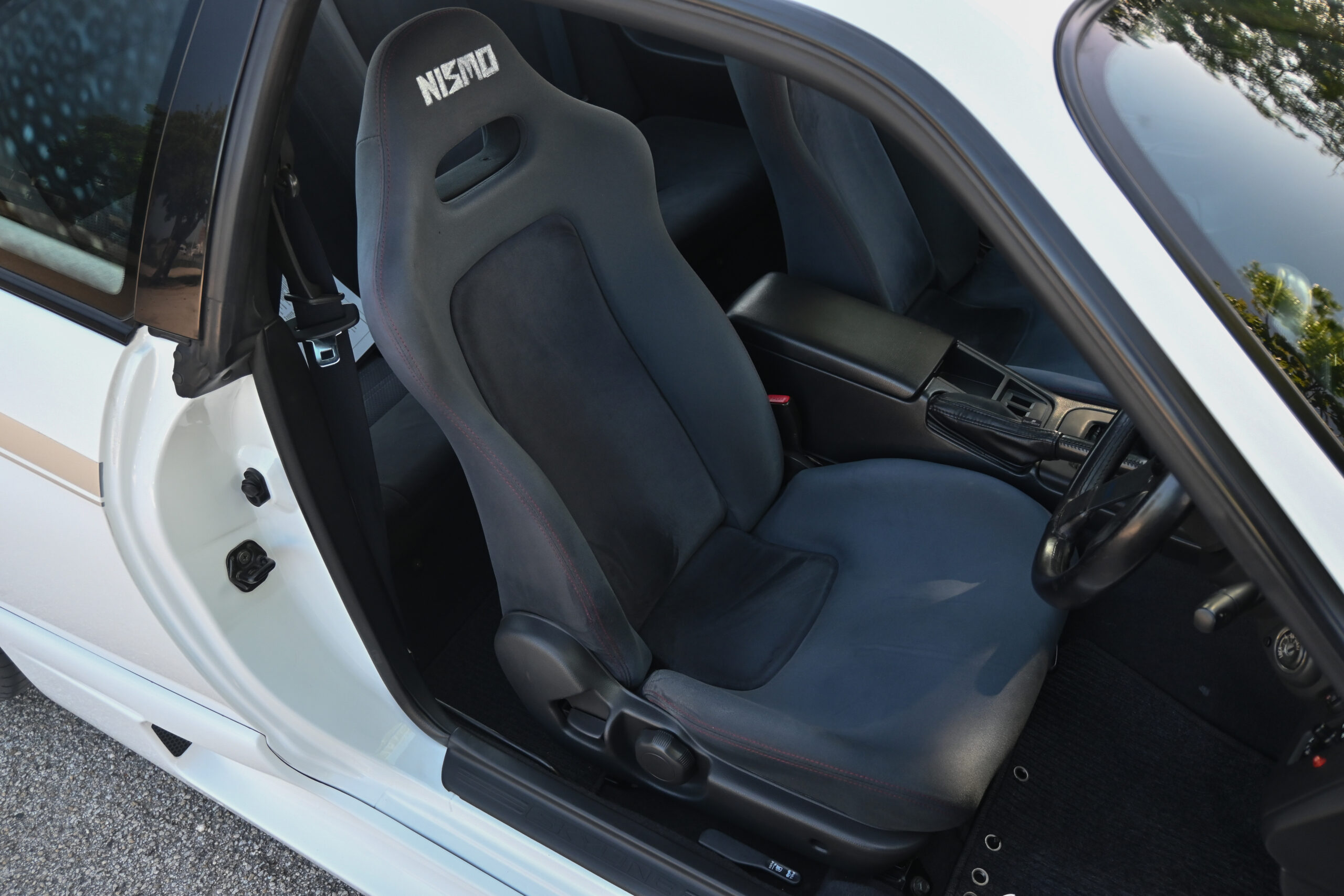

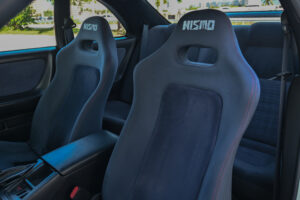

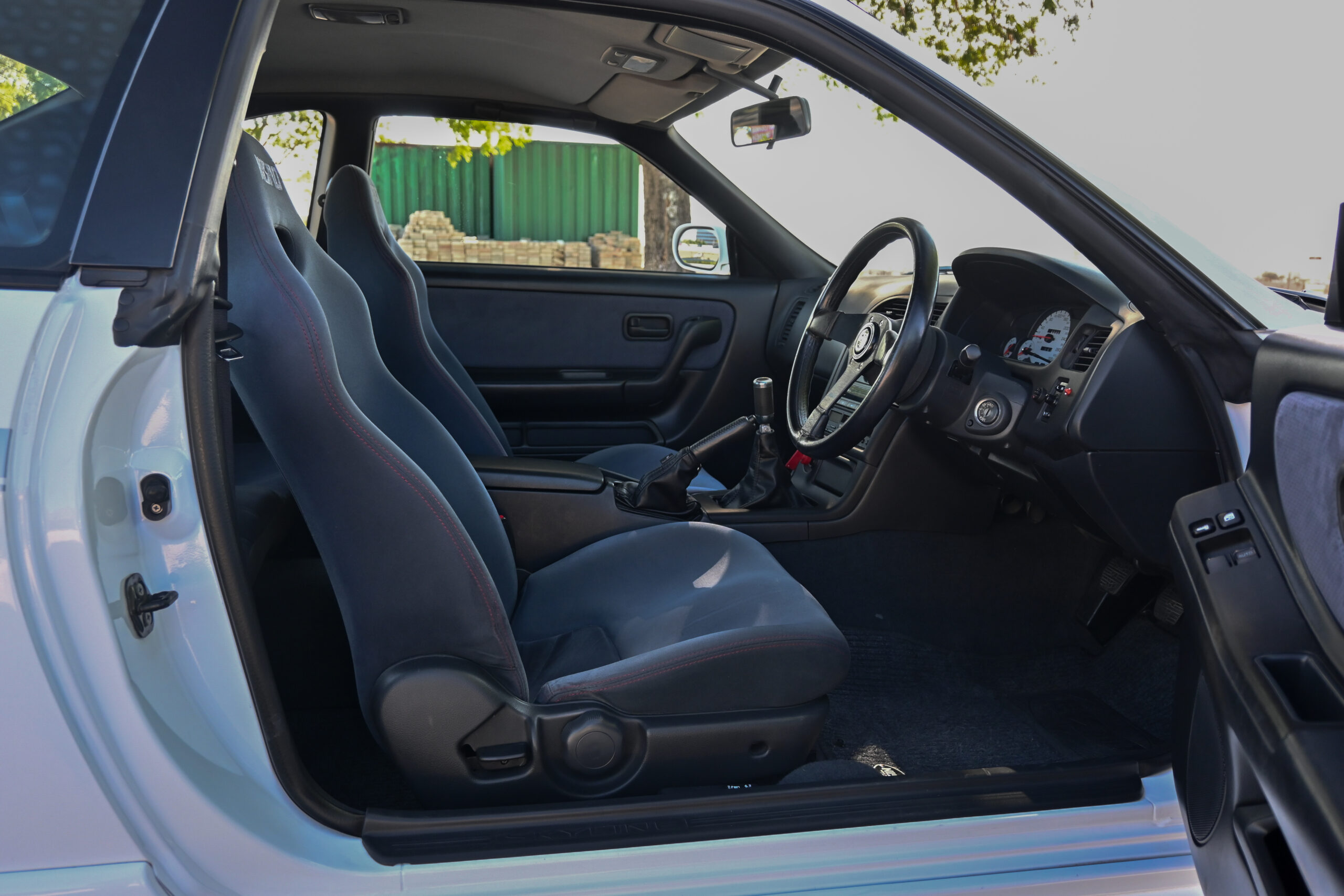

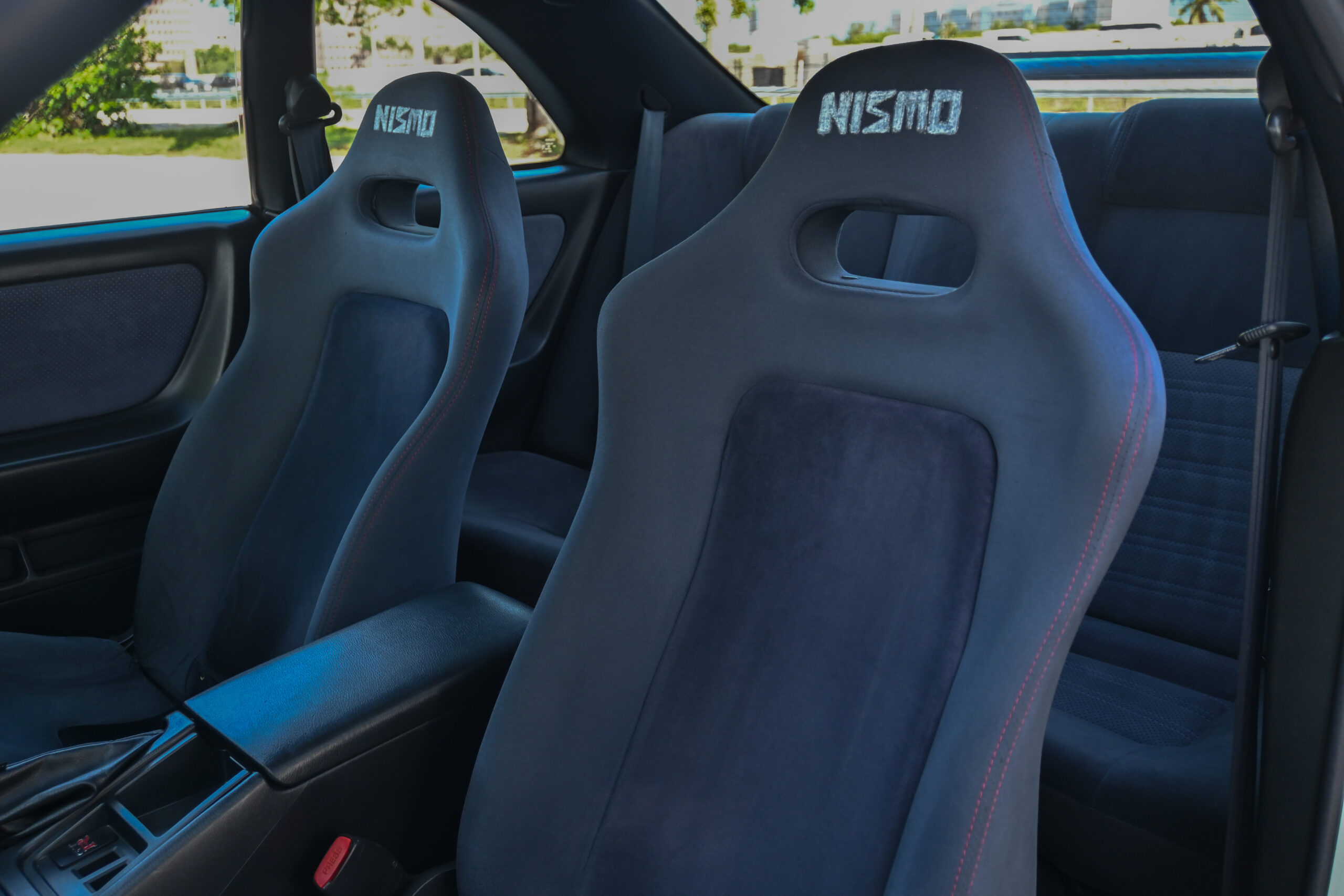

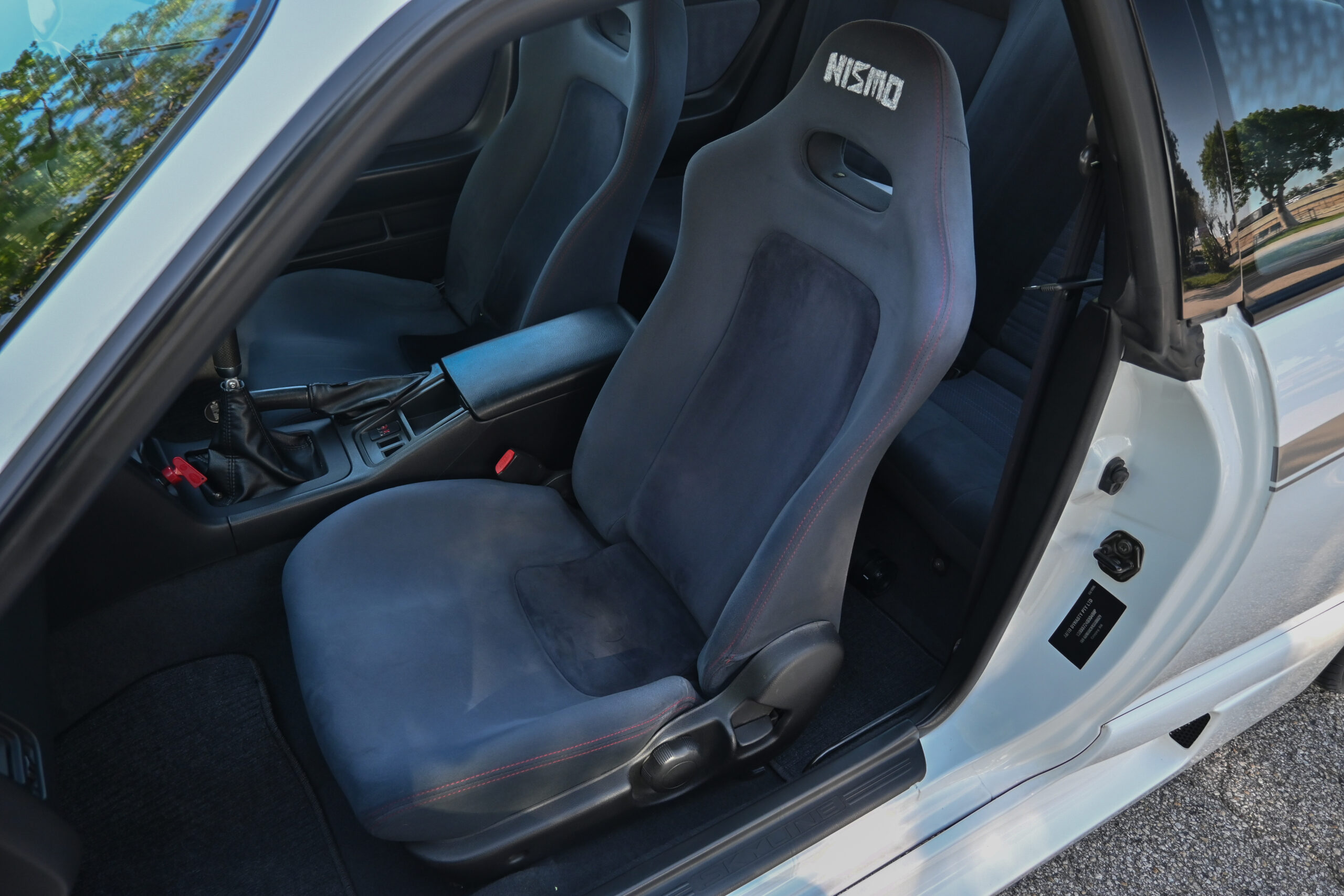

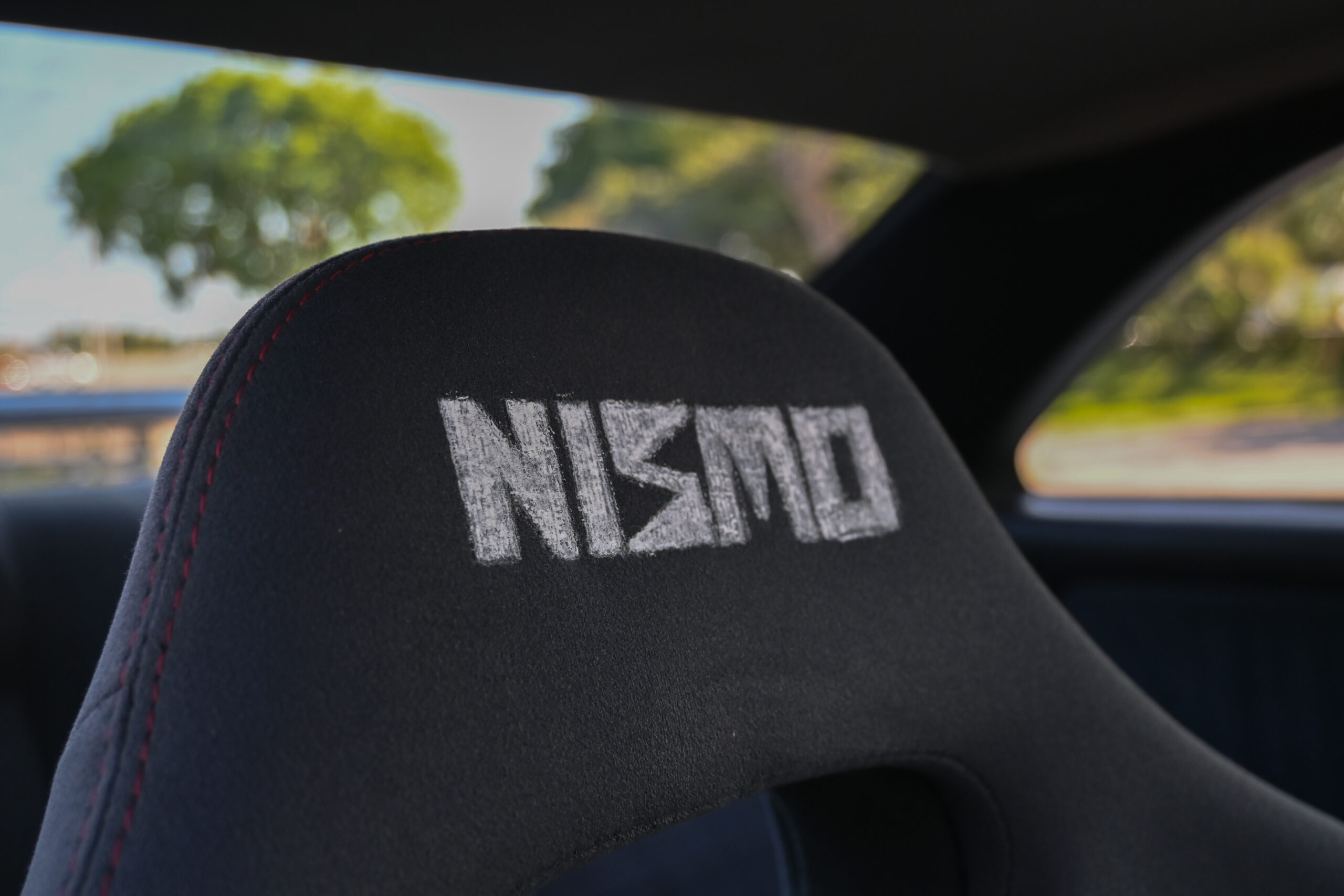

• 400R front seats

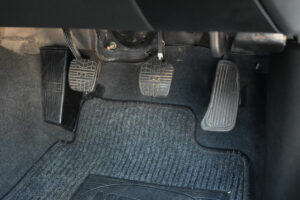

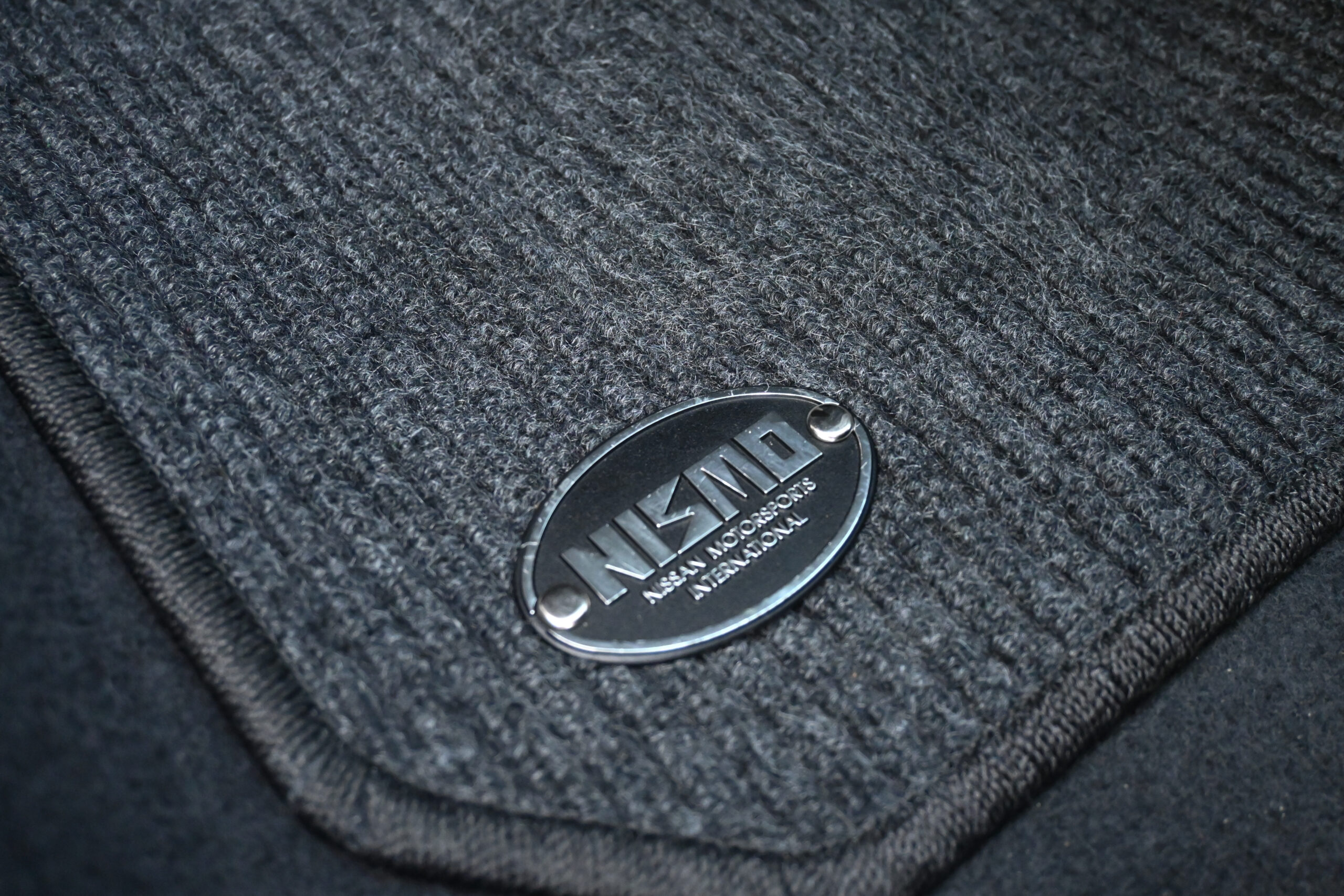

• 400R original floor mats
• N1 speaker delete
• N1 bonnet lip
• N1 front bumper vents
• N1 rear wiper delete
• N1 rear windscreen
• N1 Aerial delete

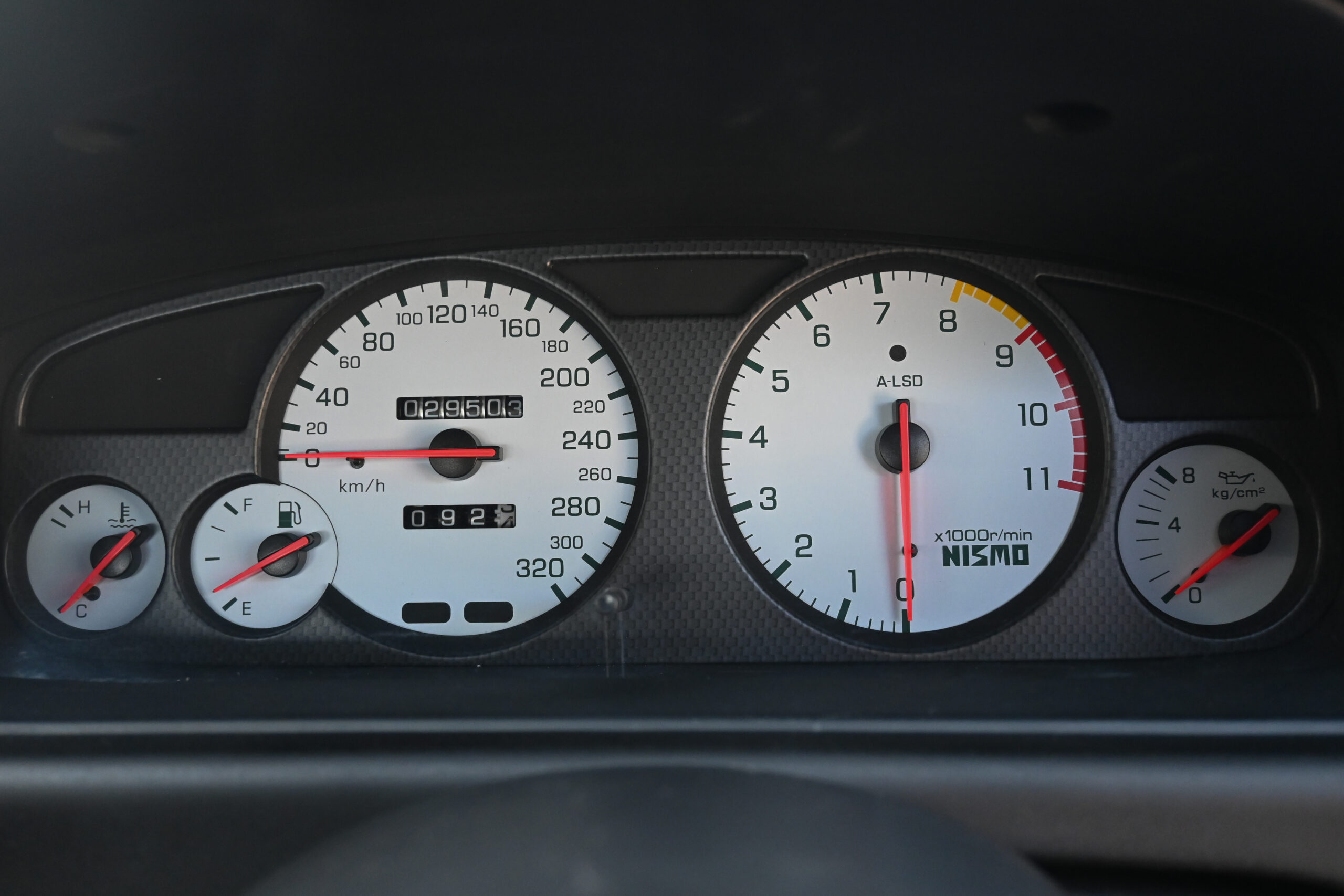

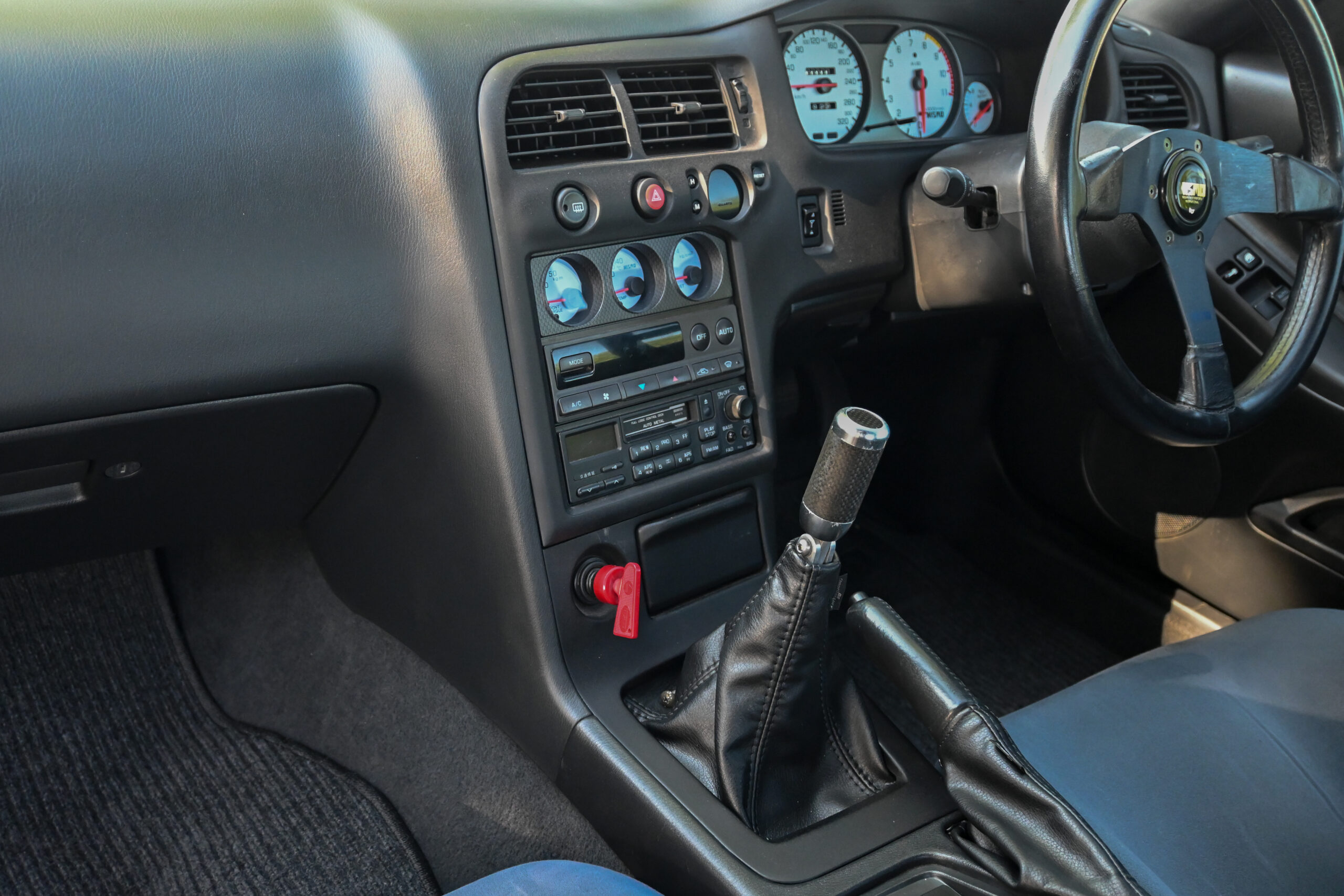

• Nismo old logo white-face cluster

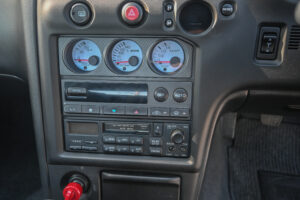

• Nismo old logo white-face triple gauge
• Nismo old logo lighter

Now available at RMC Miami, this N1 33R is the pinnacle of the tuning industry. Below are the remaining powertrain and suspension modifications:

Powertrain

• MotorSports Mechanical Spec Forged 2.6 bottom end
• MotorSports Mechanical Race Ported cylinder head

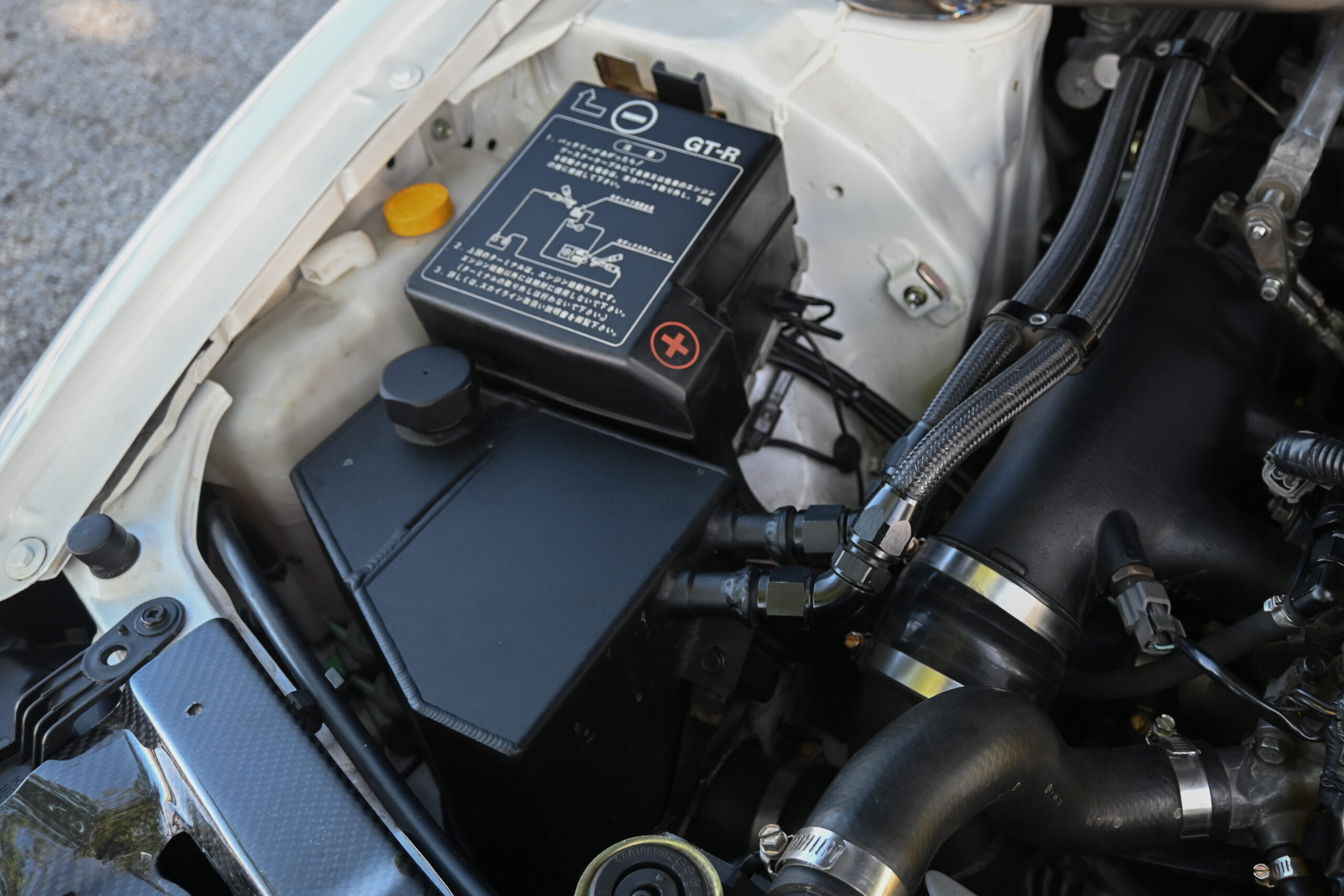

• Custom catch can
• Garrett -5 turbos with billet wheels
• HKS intercooler
• HKS hard pipes

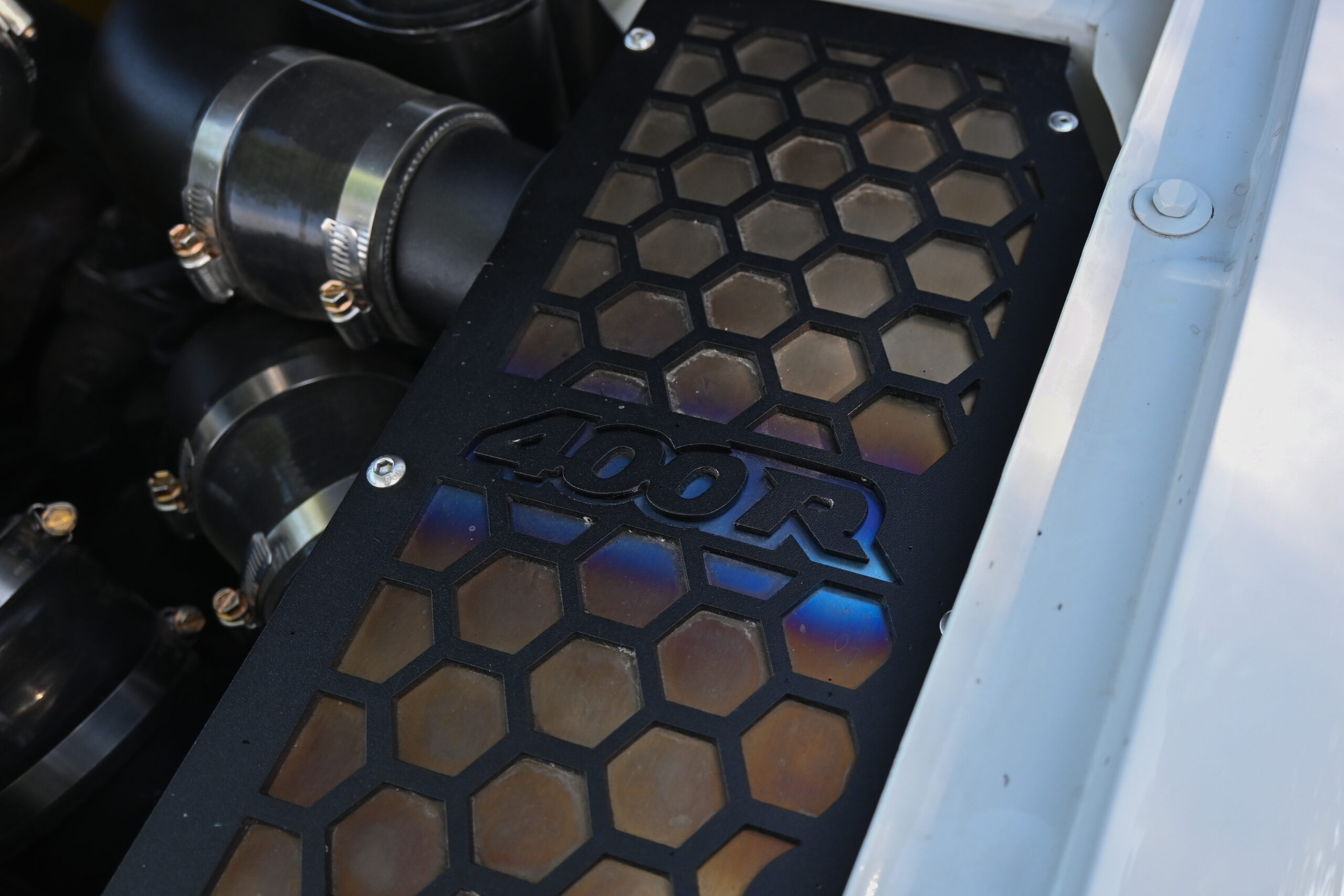

• Turbo intake guards
• HKS dump pipes

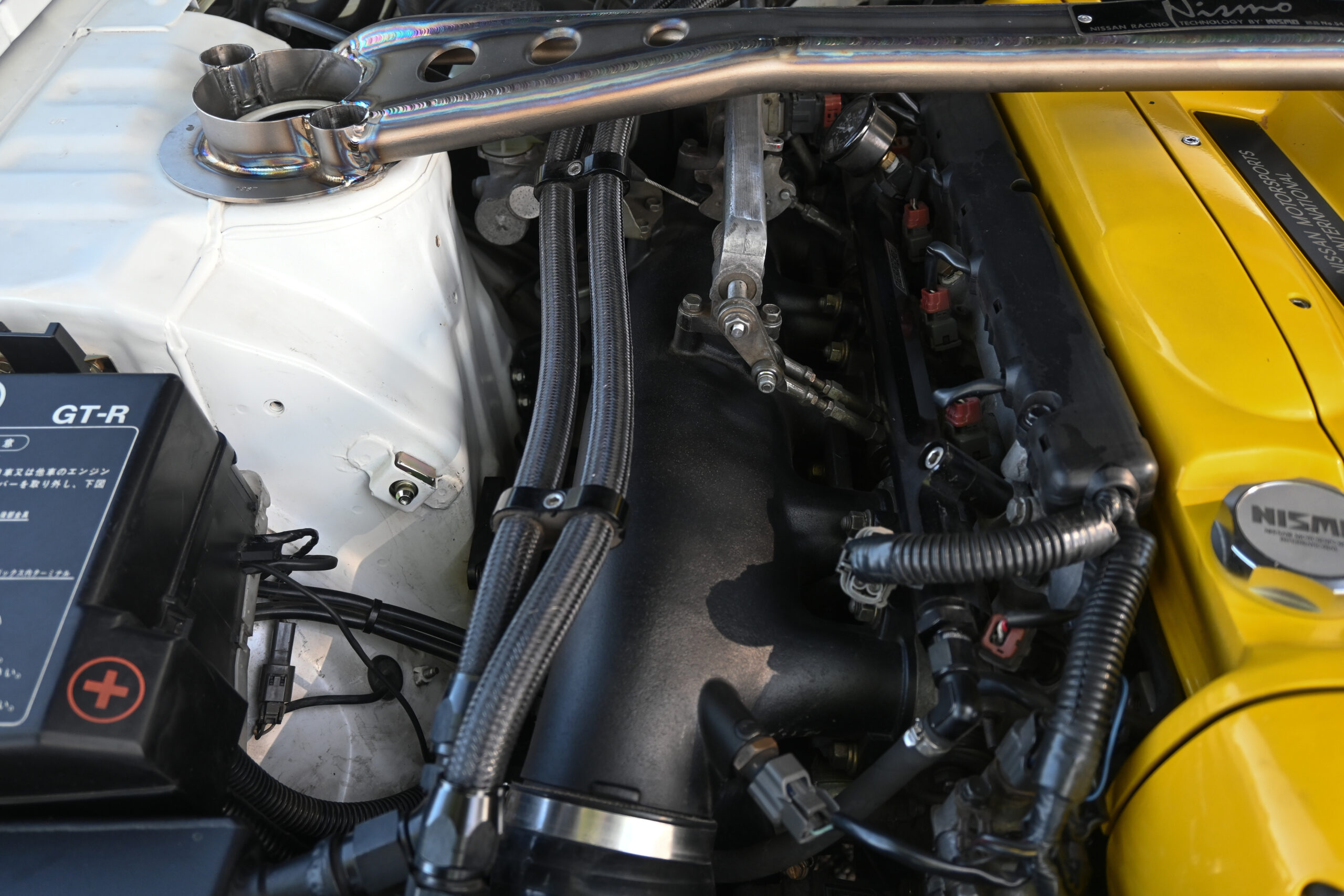

• Frenchies in-tank pump hanger – twin Walbro 460 pumps
• 1650cc Bosch Injectors
• Aeroflow billet fuel rail
• Aeroflow braided fuel lines & fittings
• PRP R35 coil packs
• Haltech ECU with wideband and fuel sensor
• Turbosmart fuel pressure regulator, boost controller & wastegate

Footwork

• Ohlins 2-way coilovers

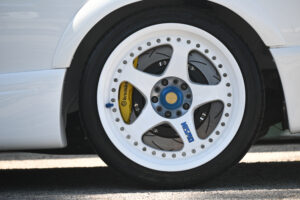

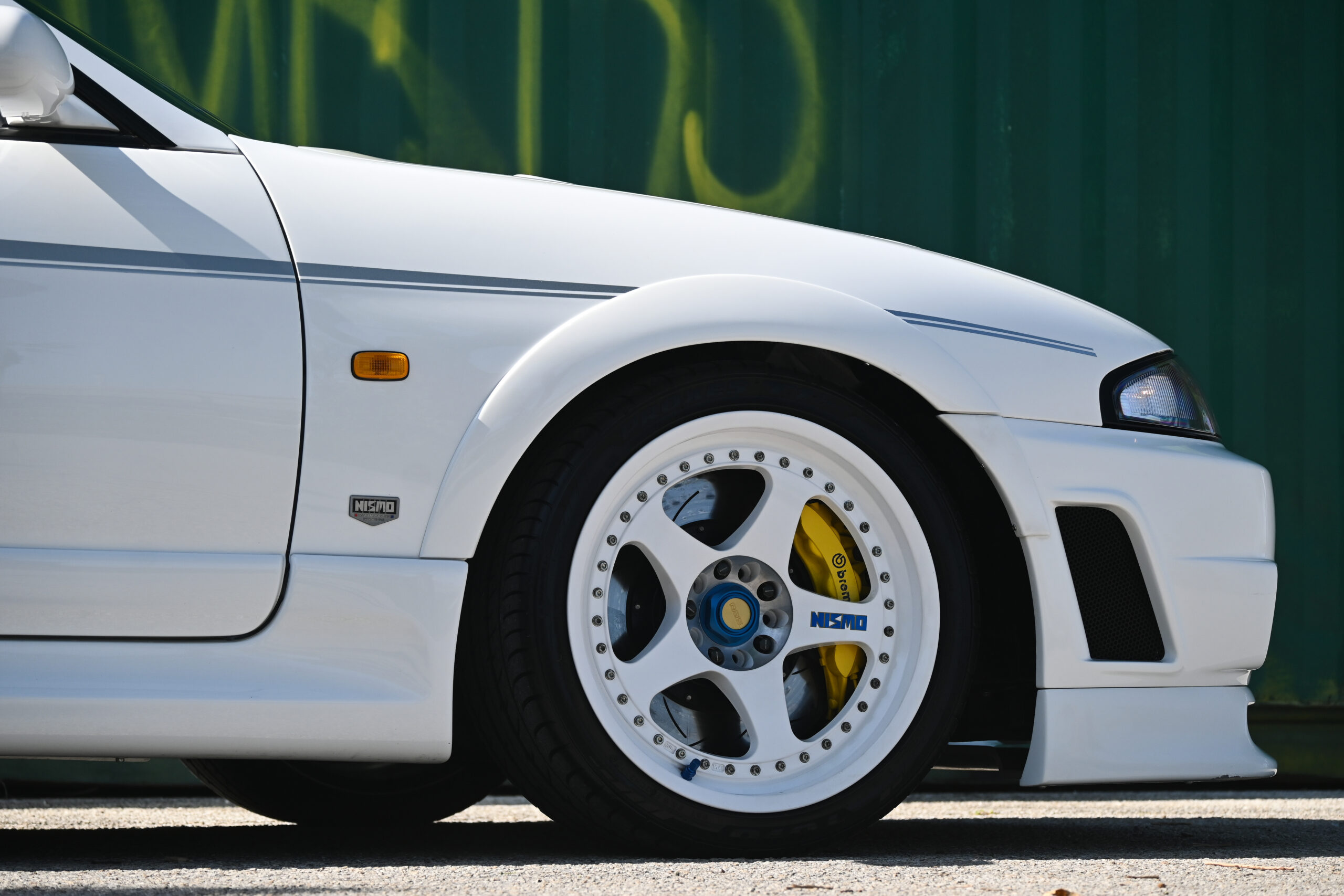

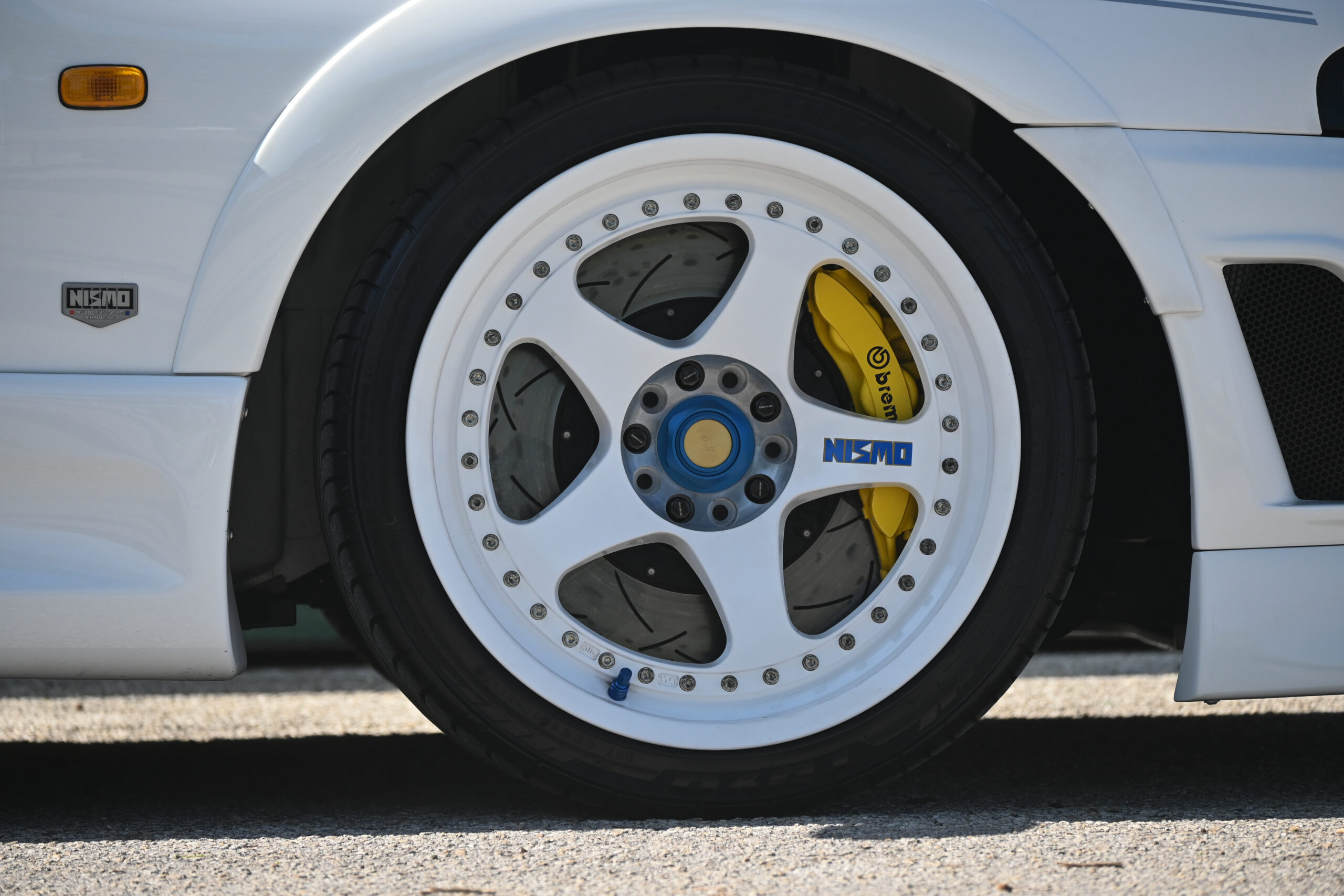

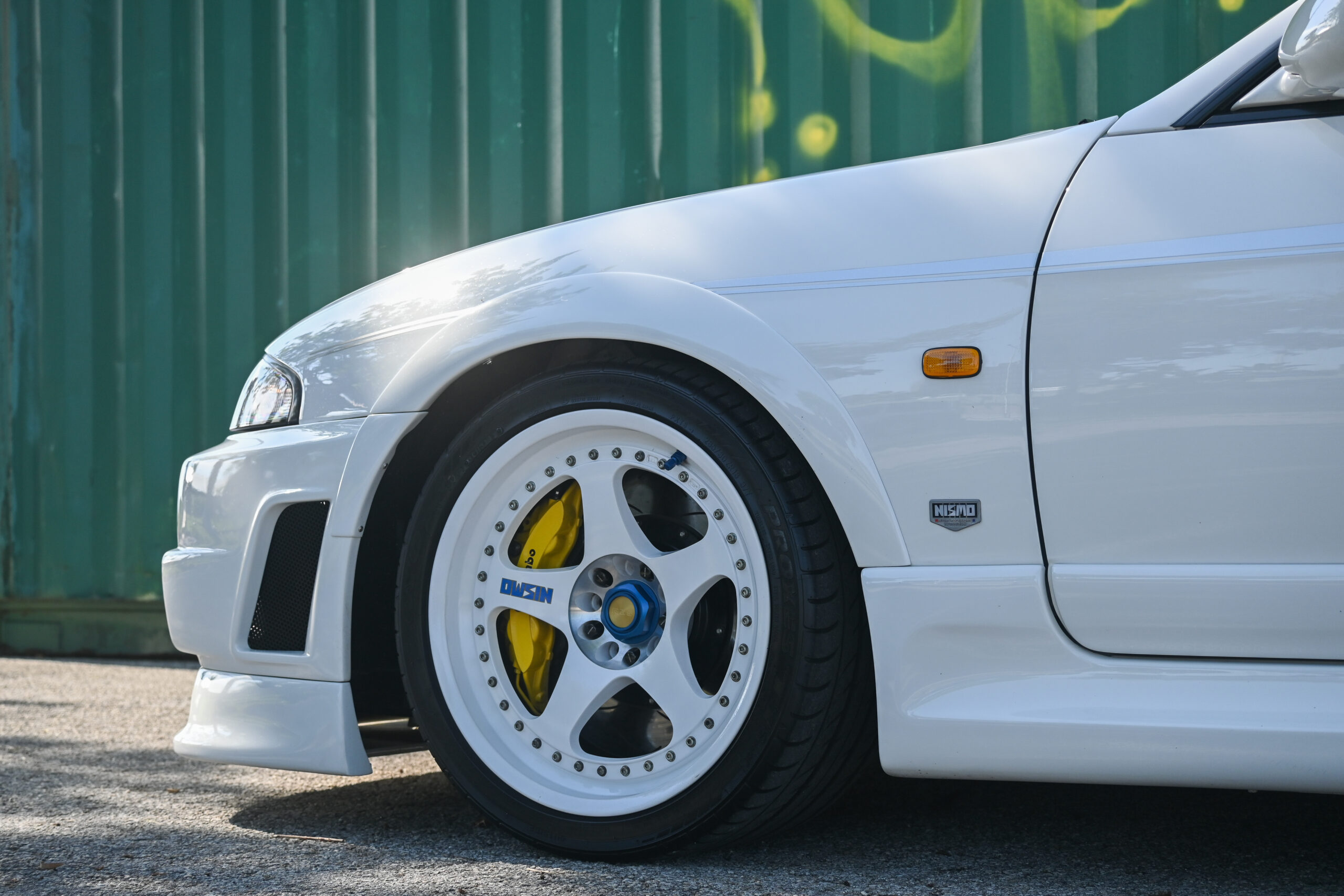

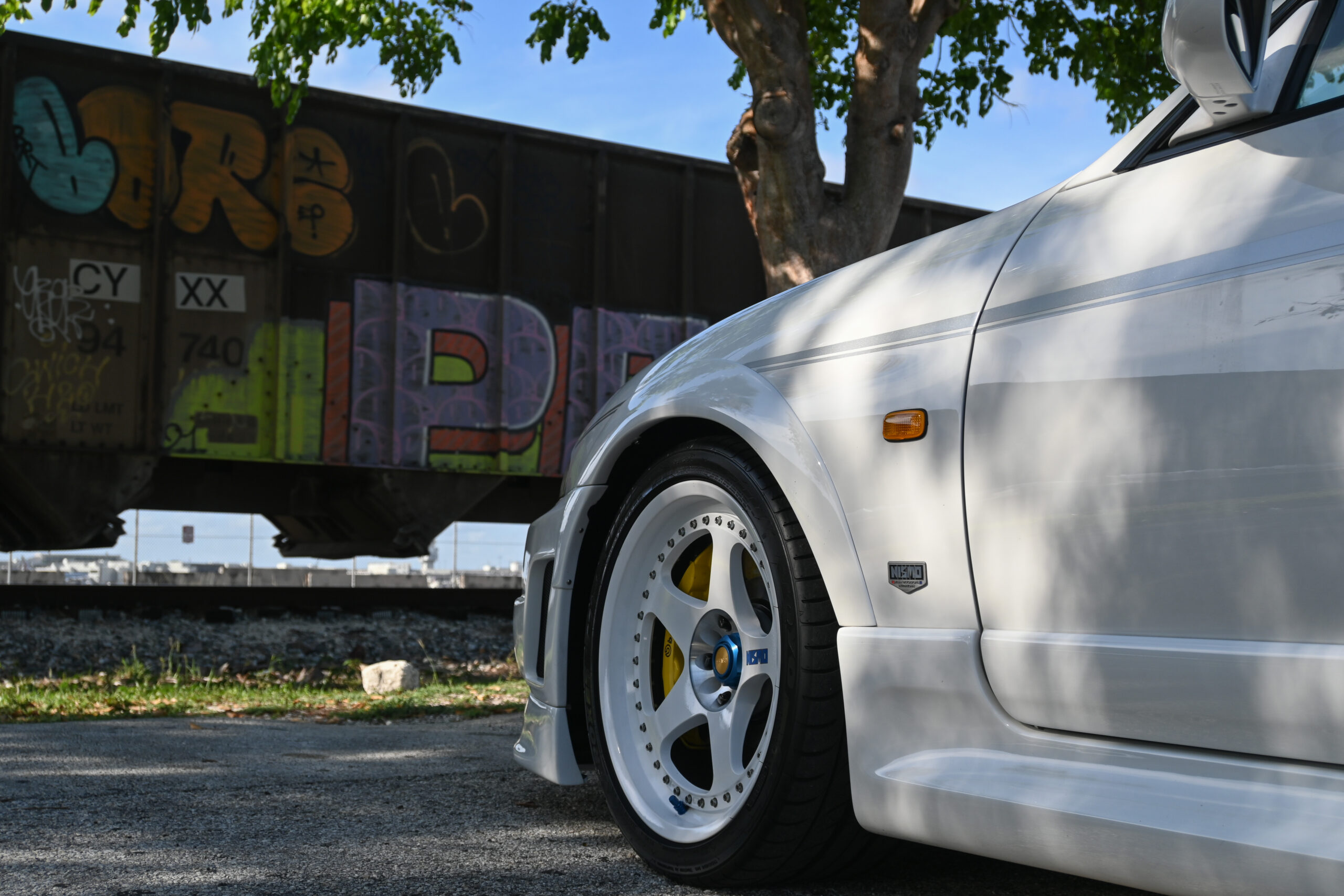

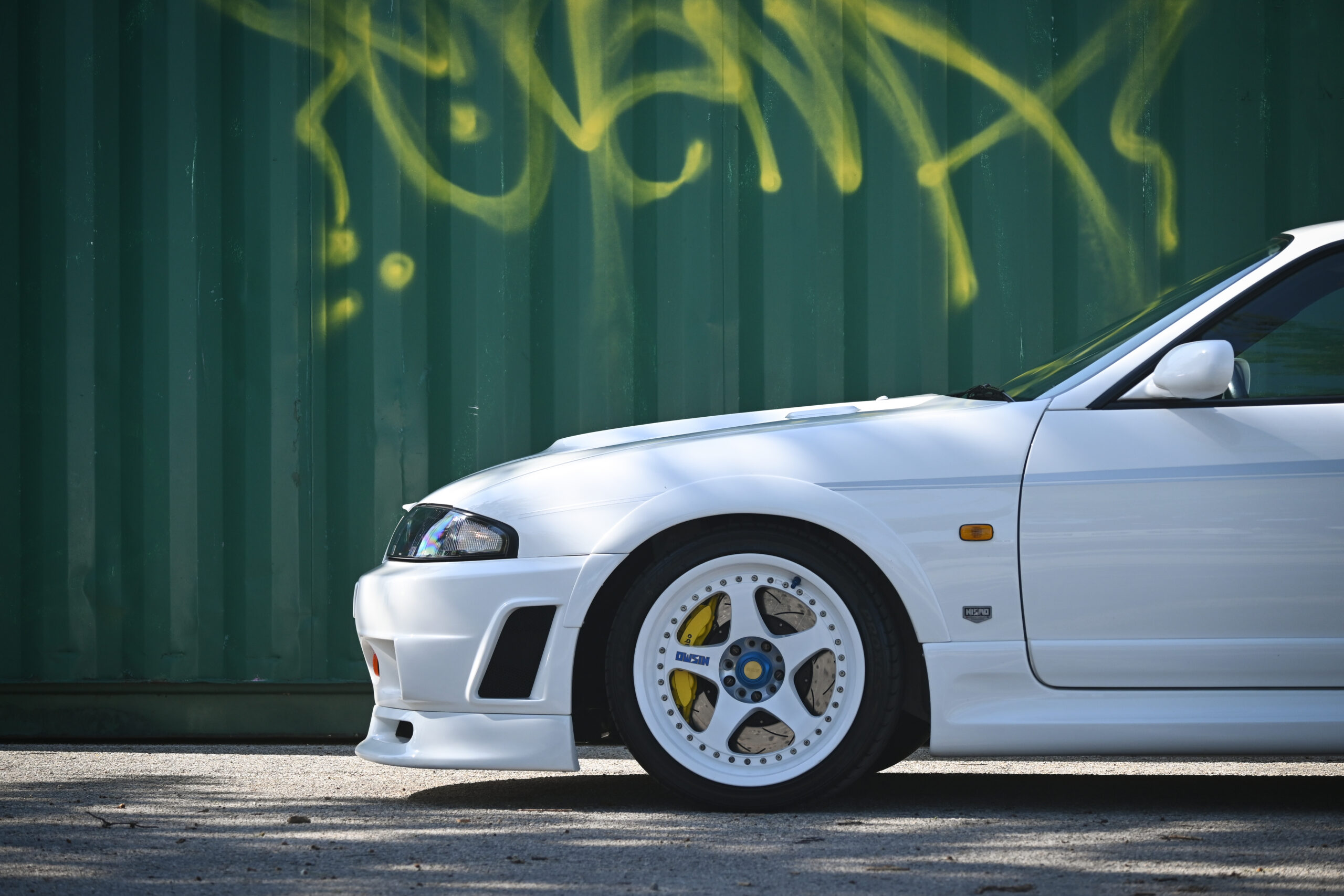

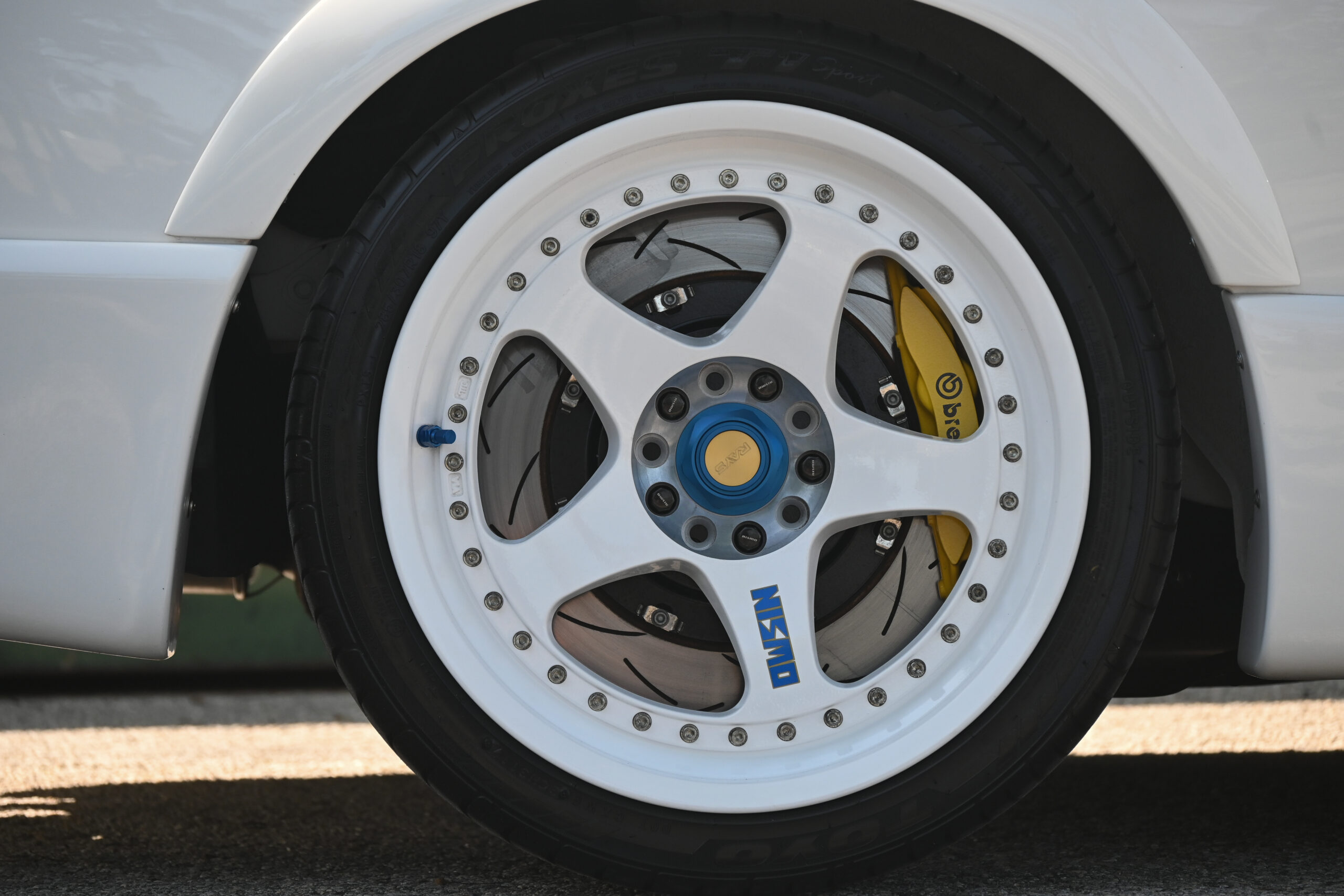

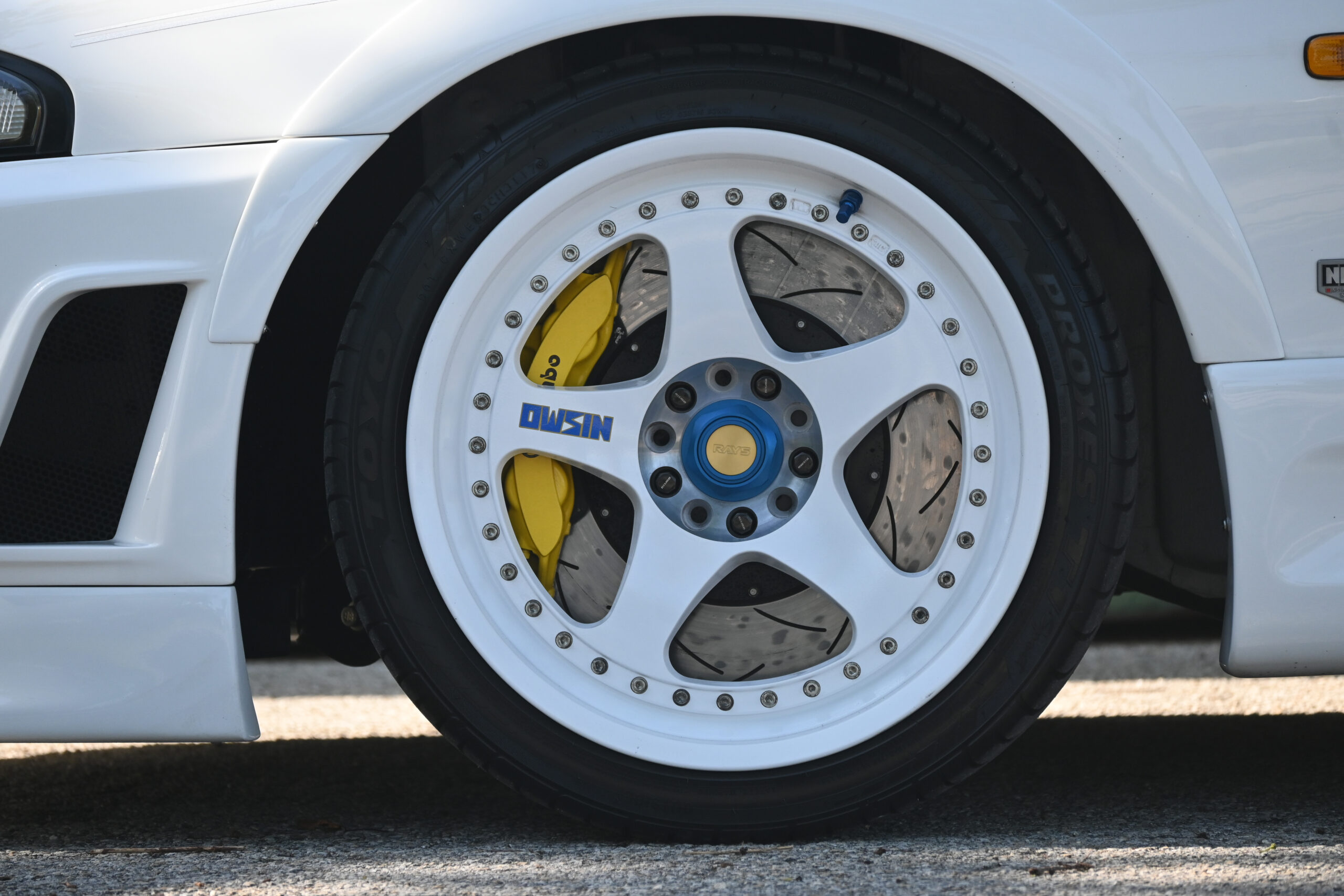

• 18×10 squared Nismo LMGT1 wheels

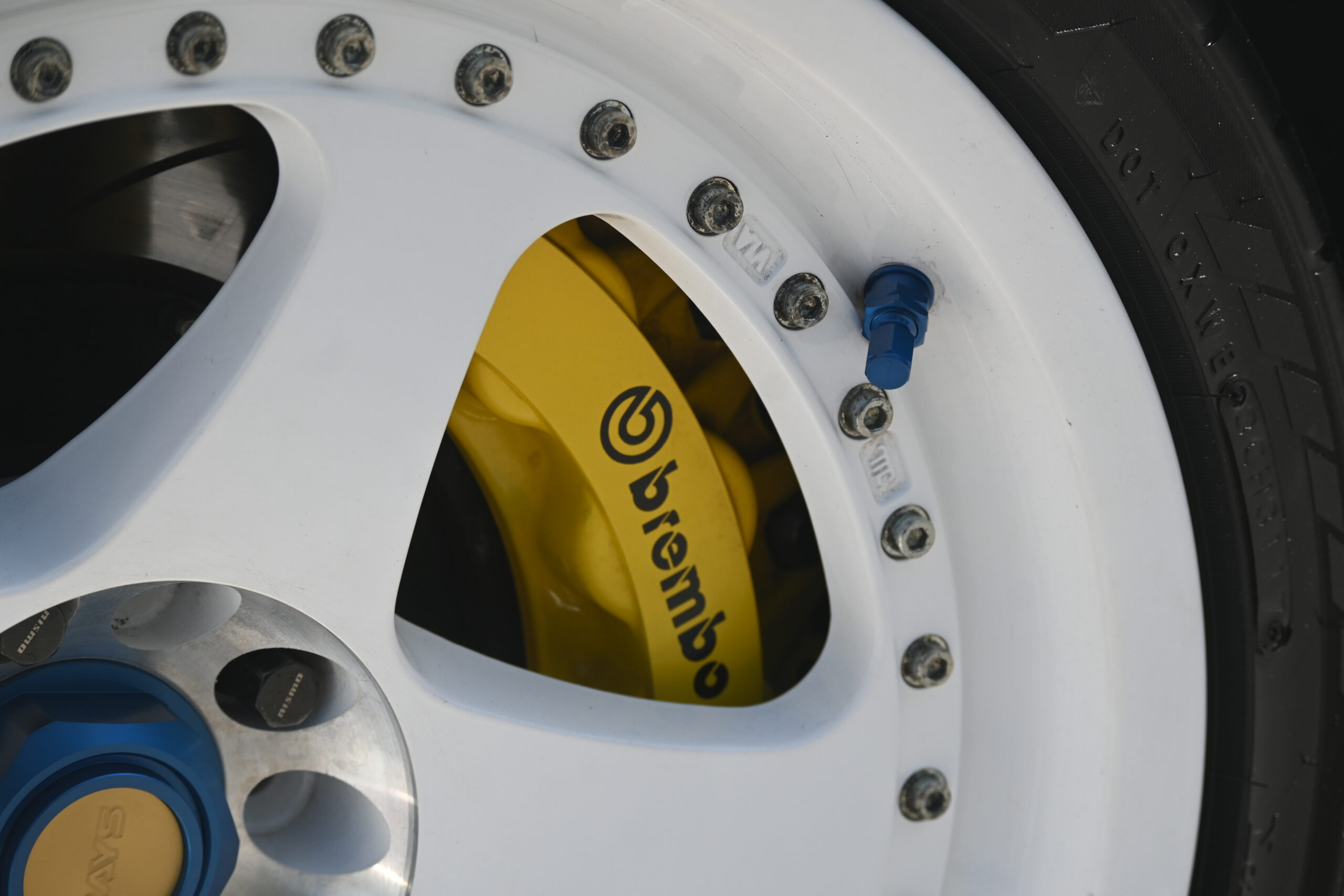

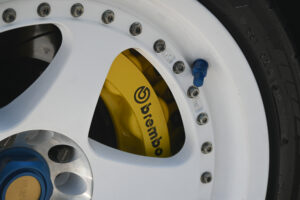

• R35 GTR 380mm brake kit
